Heated Seat Control Module - RR Connector End View

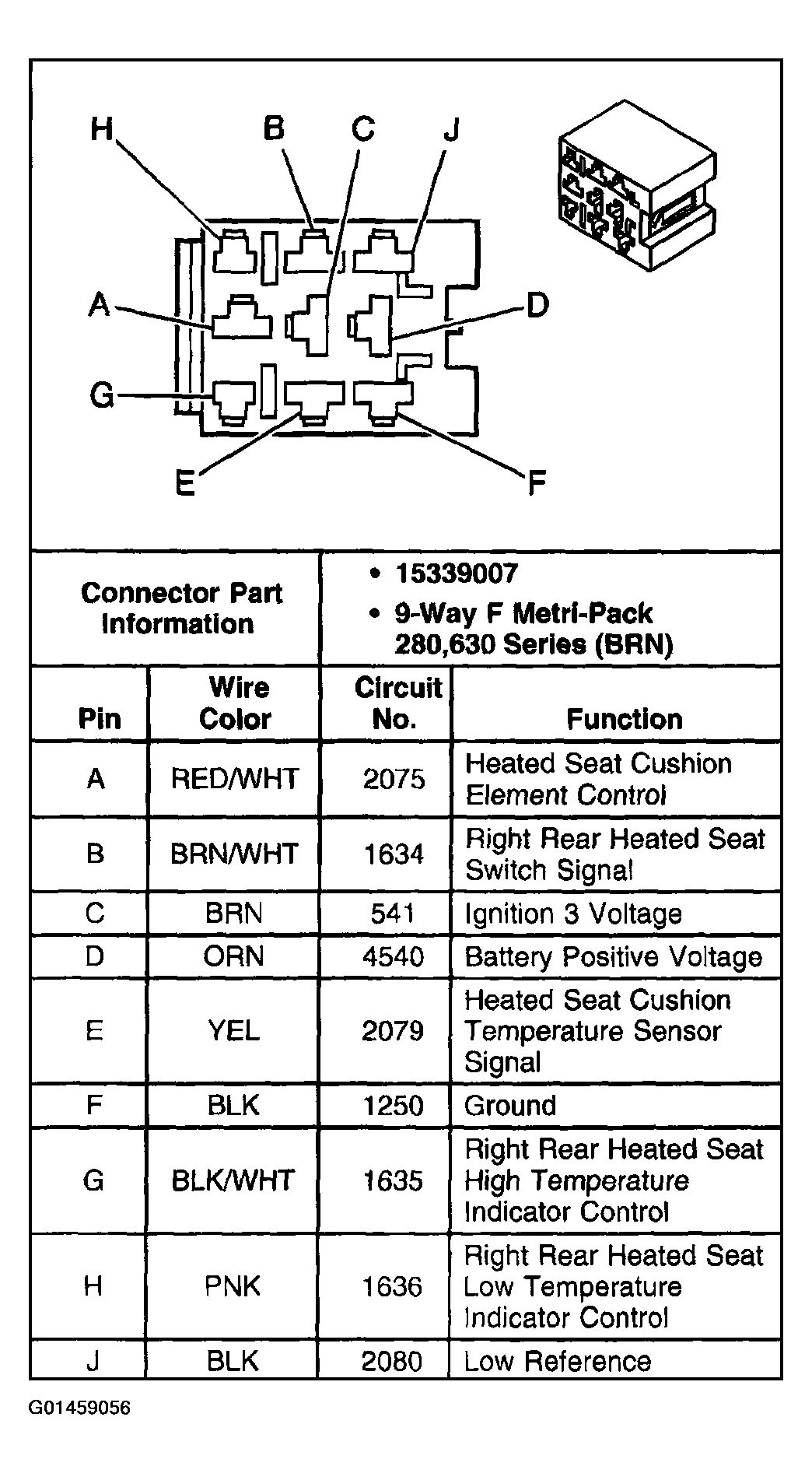

Fig 1: Heated Seat Control Module - RR Connector End View

G01459056

Courtesy of GENERAL MOTORS CORP.
