Heated Seat Control Module - LR Connector End View

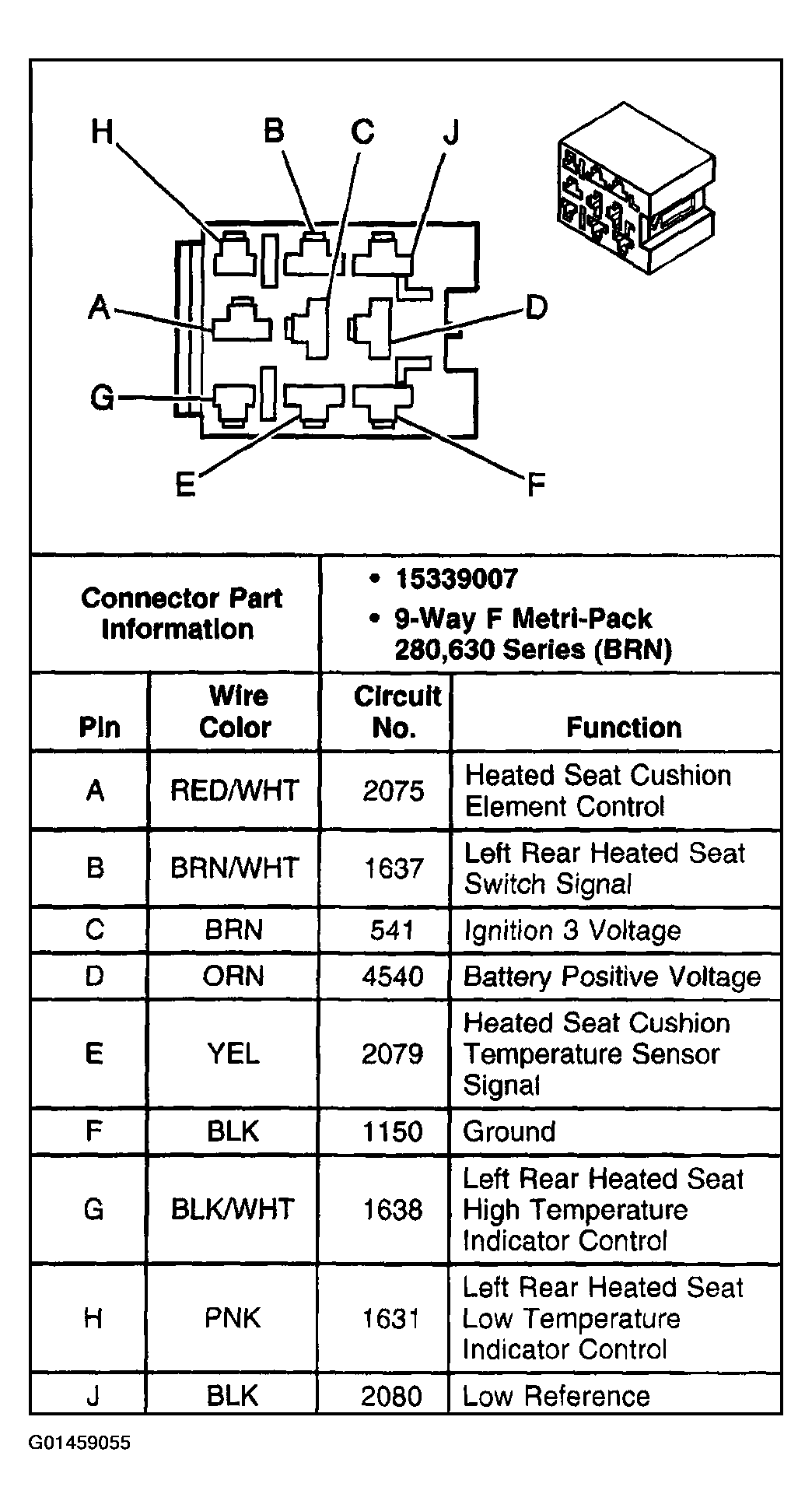

Fig 1: Heated Seat Control Module - LR Connector End View

G01459055

Courtesy of GENERAL MOTORS CORP.
