Engine Oil Level Switch Connector End View & Functions - 8.1L

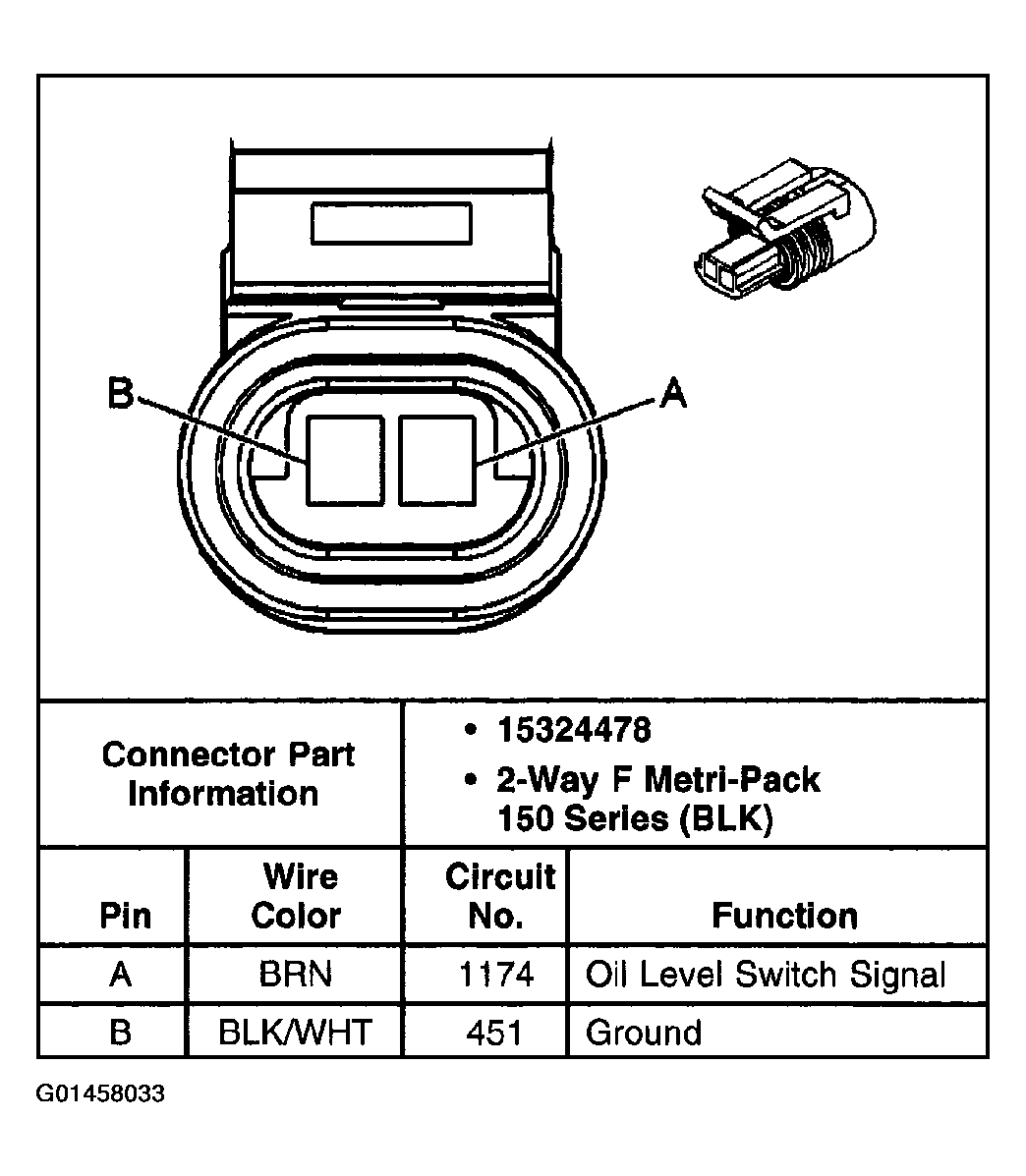

Fig 1: Engine Oil Level Switch Connector End View & Functions - 8.1L

G01458033

Courtesy of GENERAL MOTORS CORP.
