Electronic Brake Control Module (EBCM)- C2 (w/o JL4) Connector End View

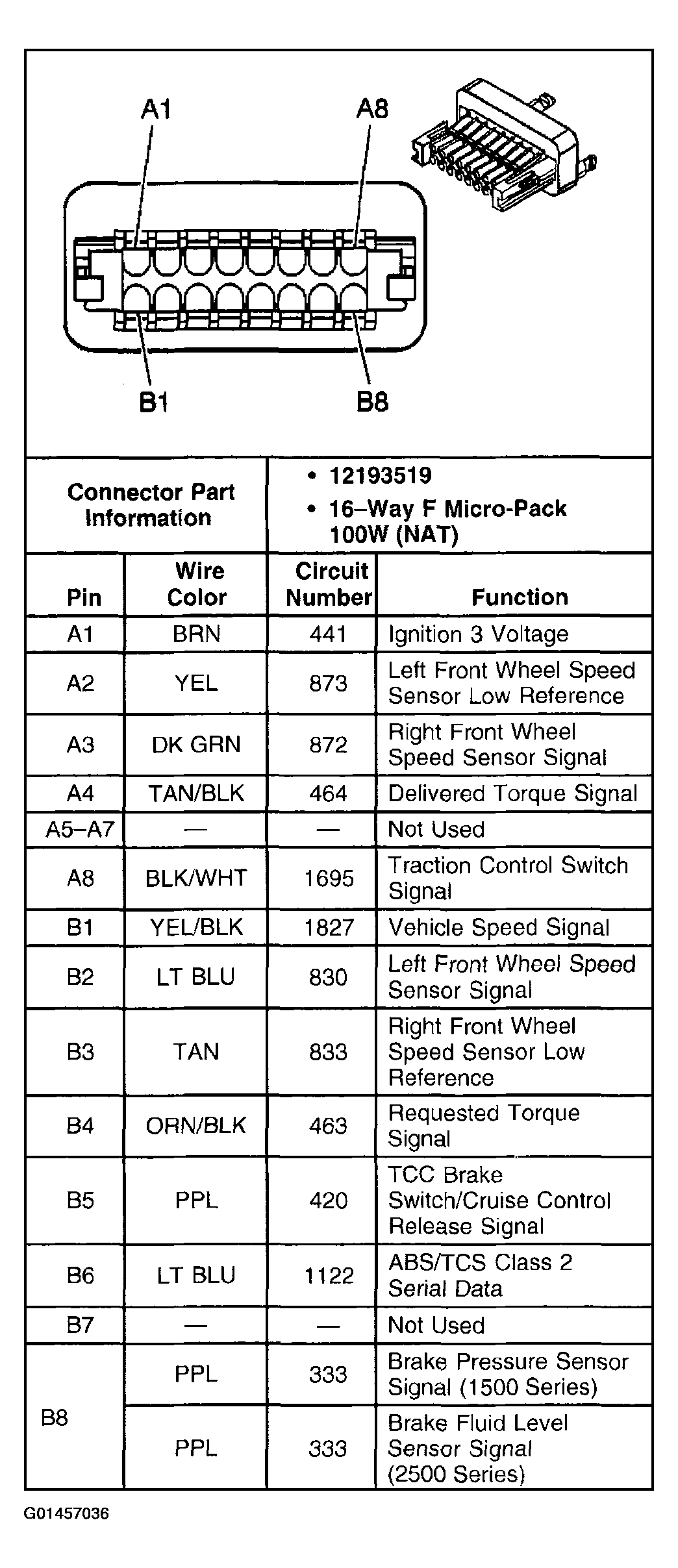

Fig 1: Electronic Brake Control Module (EBCM)- C2 (w/o JL4) Connector End View

G01457036

Courtesy of GENERAL MOTORS CORP.
