Combination Yaw Rate Sensor/Lateral Accelerometer Sensor Connector End View
Combination Yaw Rate Sensor/Lateral Accelerometer Sensor Connector End View

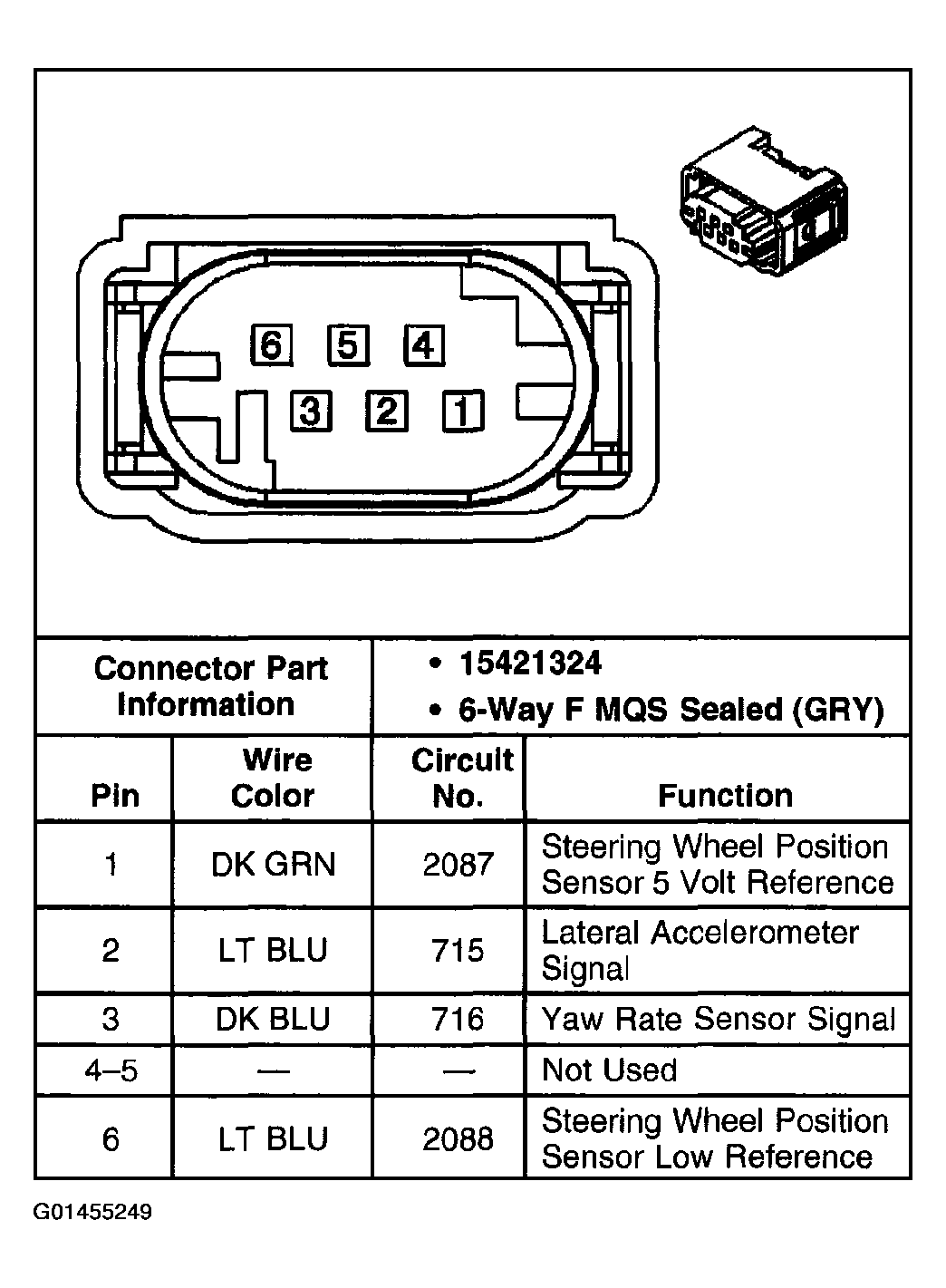

Fig 1: Combination Yaw Rate Sensor/Lateral Accelerometer Sensor Connector End View
Courtesy of GENERAL MOTORS CORP.
