Body Control Module (BCM) - C5 Connector End View

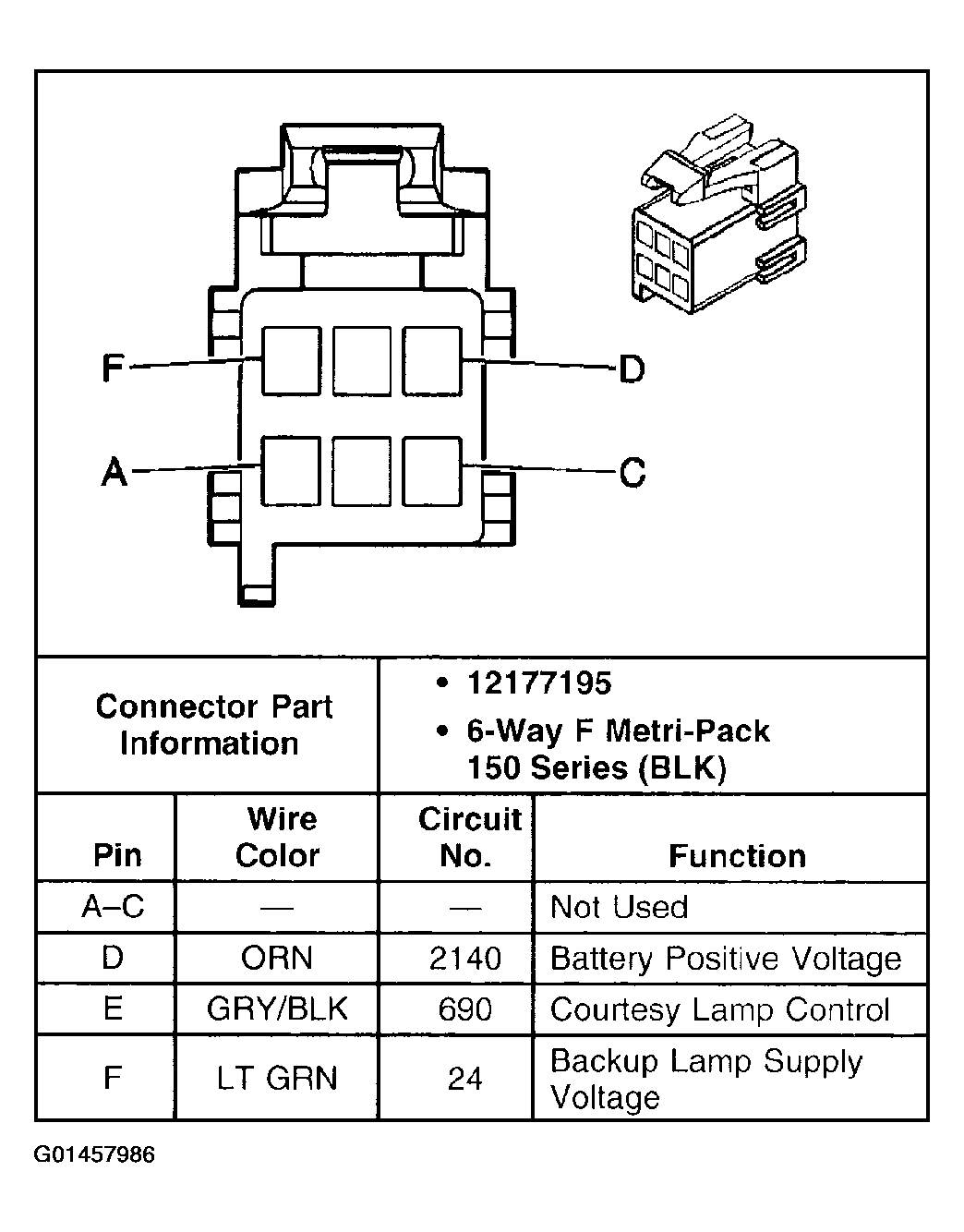

Fig 1: Body Control Module (BCM) - C5 Connector End View

G01457986

Courtesy of GENERAL MOTORS CORP.
