Analog Clock Connector End View & Functions - W/Z75

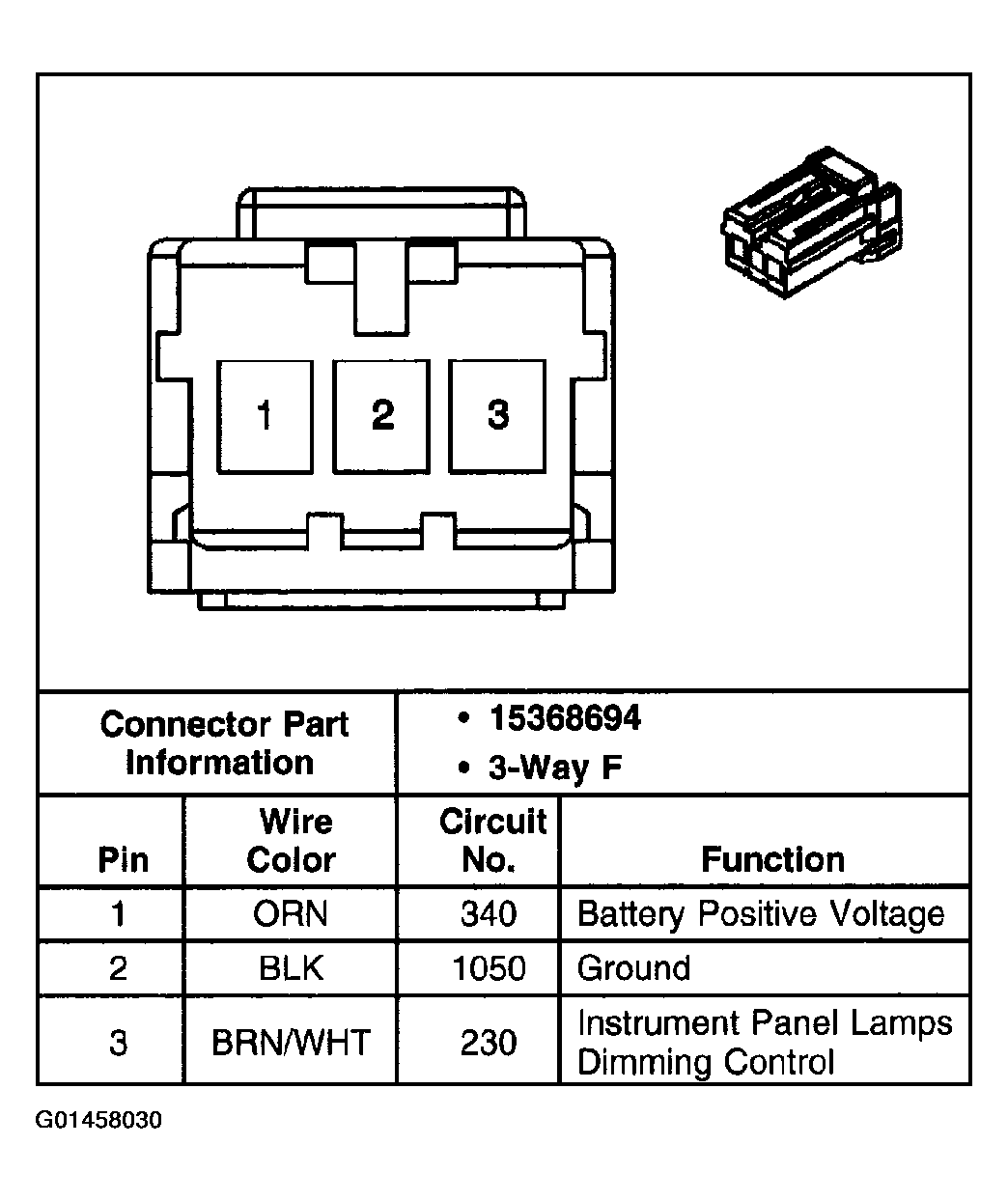

Fig 1: Analog Clock Connector End View & Functions - W/Z75

G01458030

Courtesy of GENERAL MOTORS CORP.
