Air Temperature Sensor Assembly Connector End View - Inside

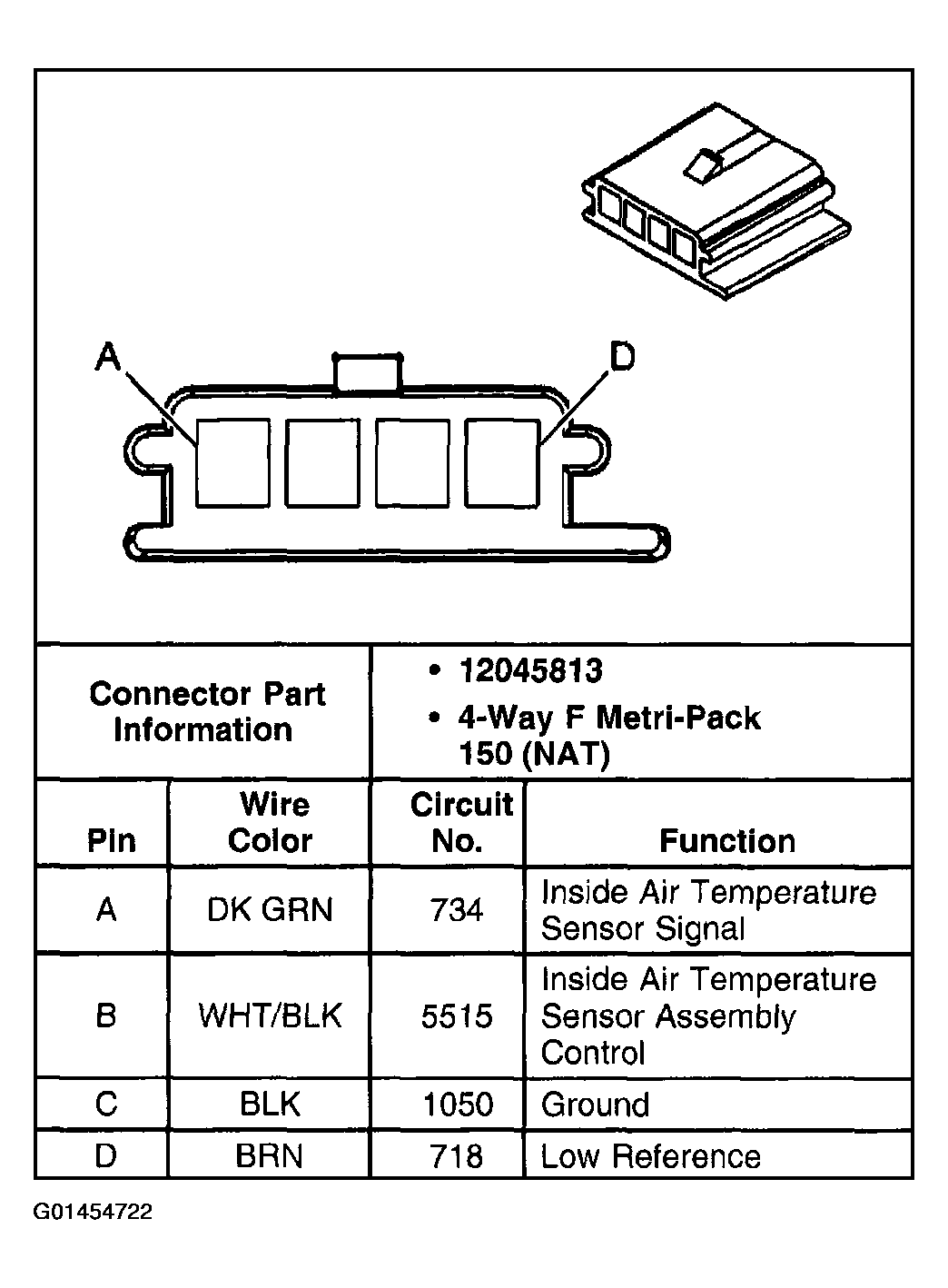

Fig 1: Air Temperature Sensor Assembly Connector End View - Inside

G01454722

Courtesy of GENERAL MOTORS CORP.
