Accelerator Pedal Position (APP) Sensor Connector End View

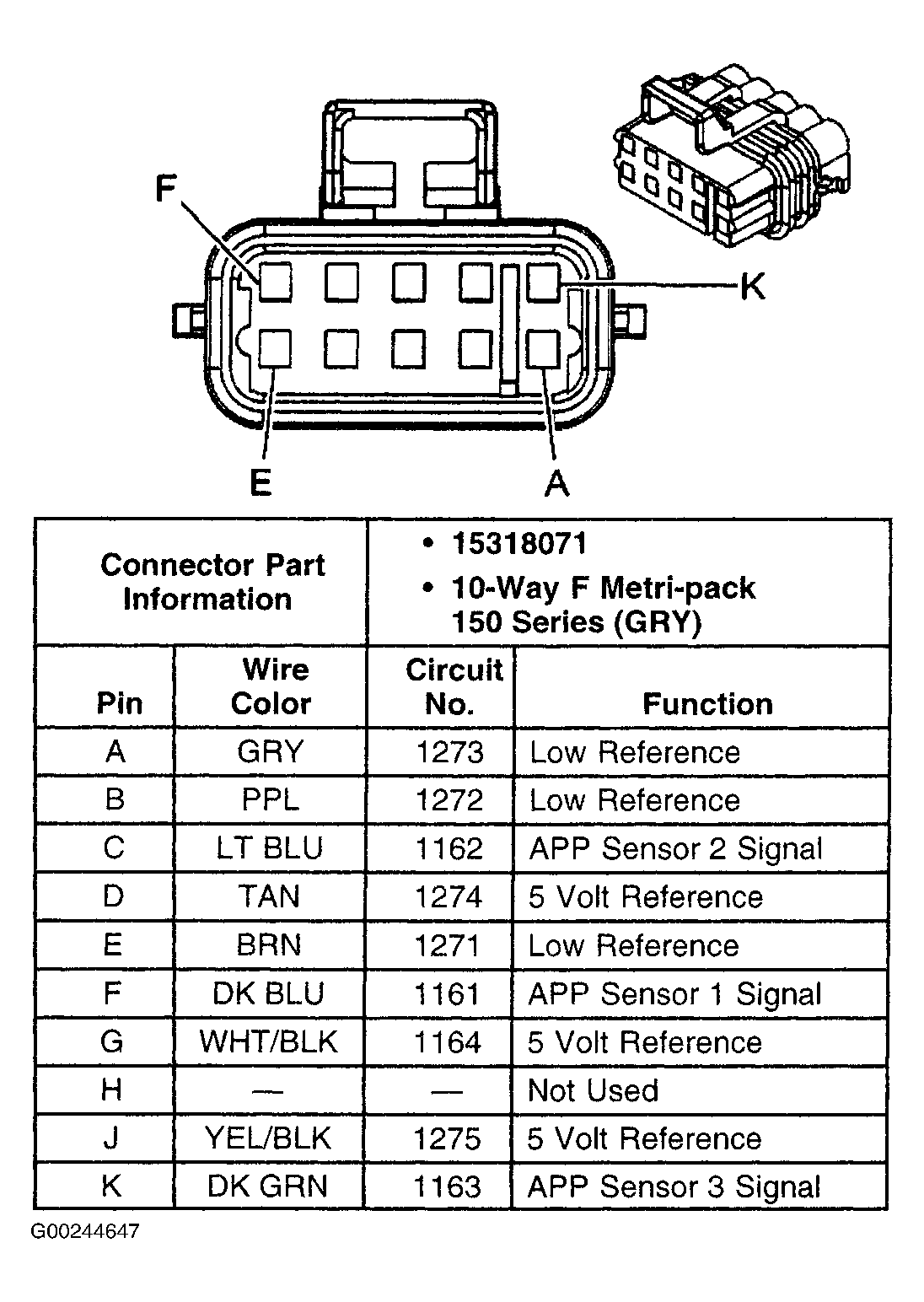

Fig 1: Accelerator Pedal Position (APP) Sensor Connector End View

G00244647

Courtesy of GENERAL MOTORS CORP.
