HVAC Control Module - Auxiliary C1 Connector End View

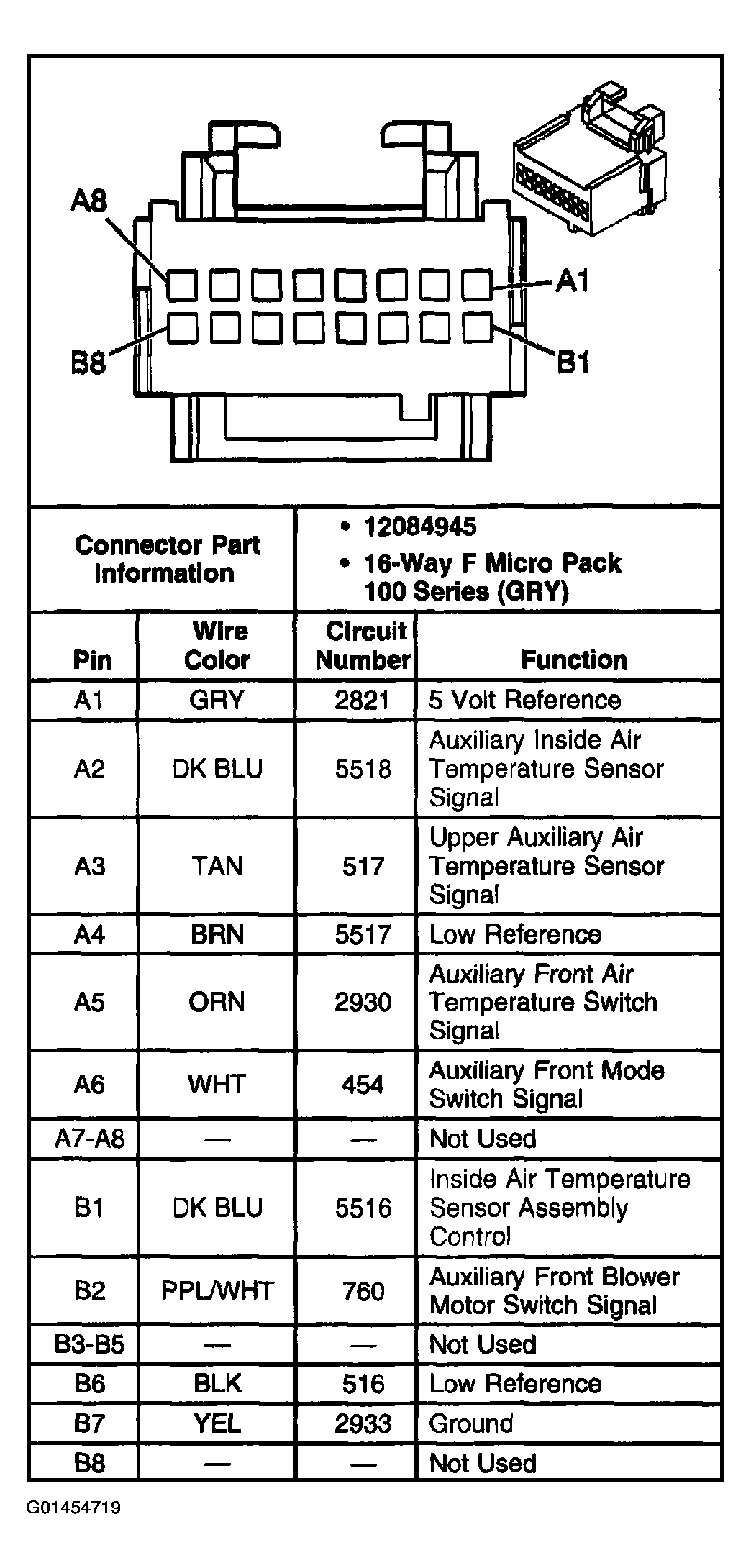

Fig 1: HVAC Control Module - Auxiliary C1 Connector End View

G01454719

Courtesy of GENERAL MOTORS CORP.
