HVAC Control Assembly Front Auxiliary Connector End View

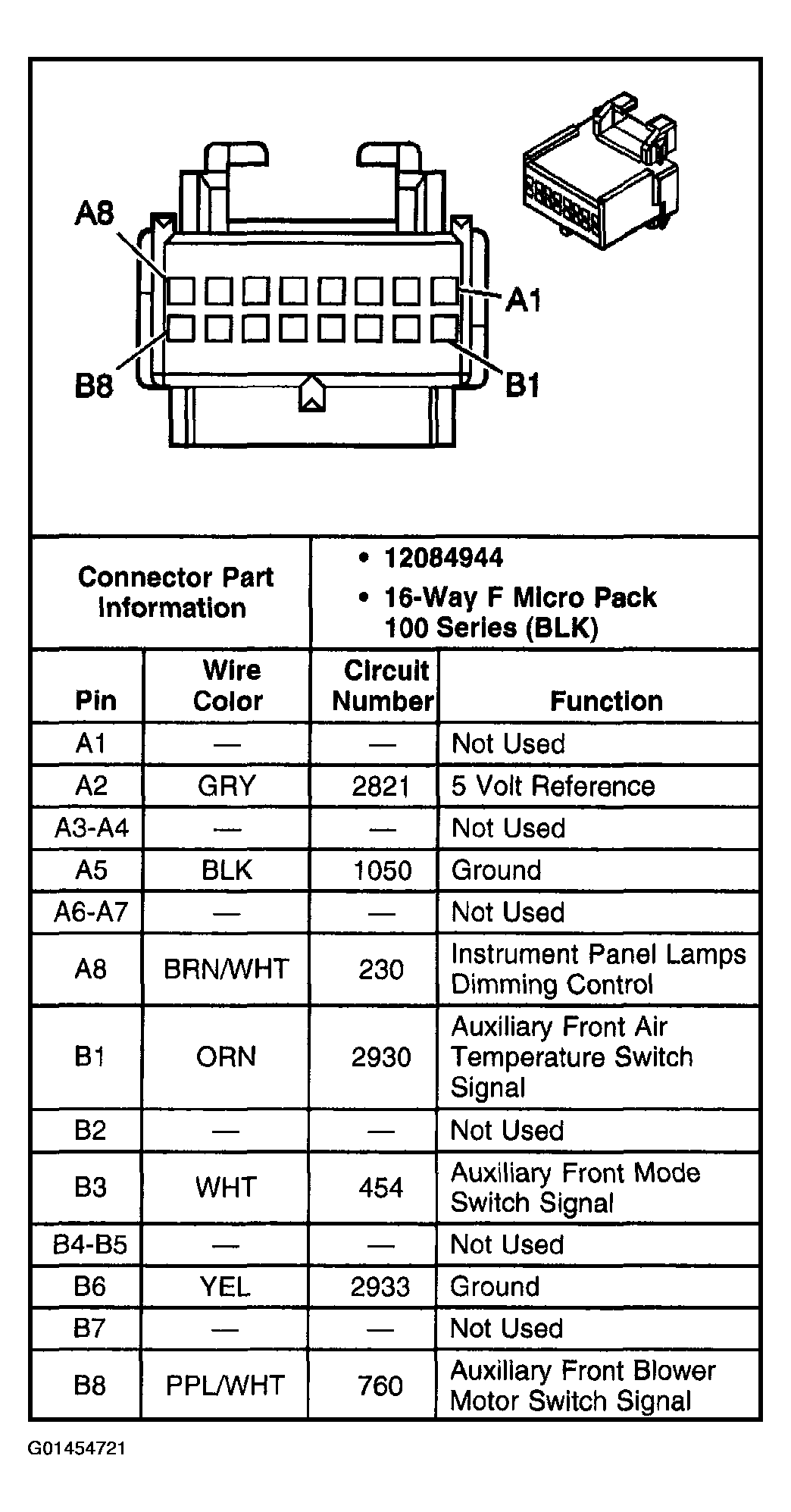

Fig 1: HVAC Control Assembly Front Auxiliary Connector End View

G01454721

Courtesy of GENERAL MOTORS CORP.
