Front Passenger Door Module (FPDM) C1 Connector End View

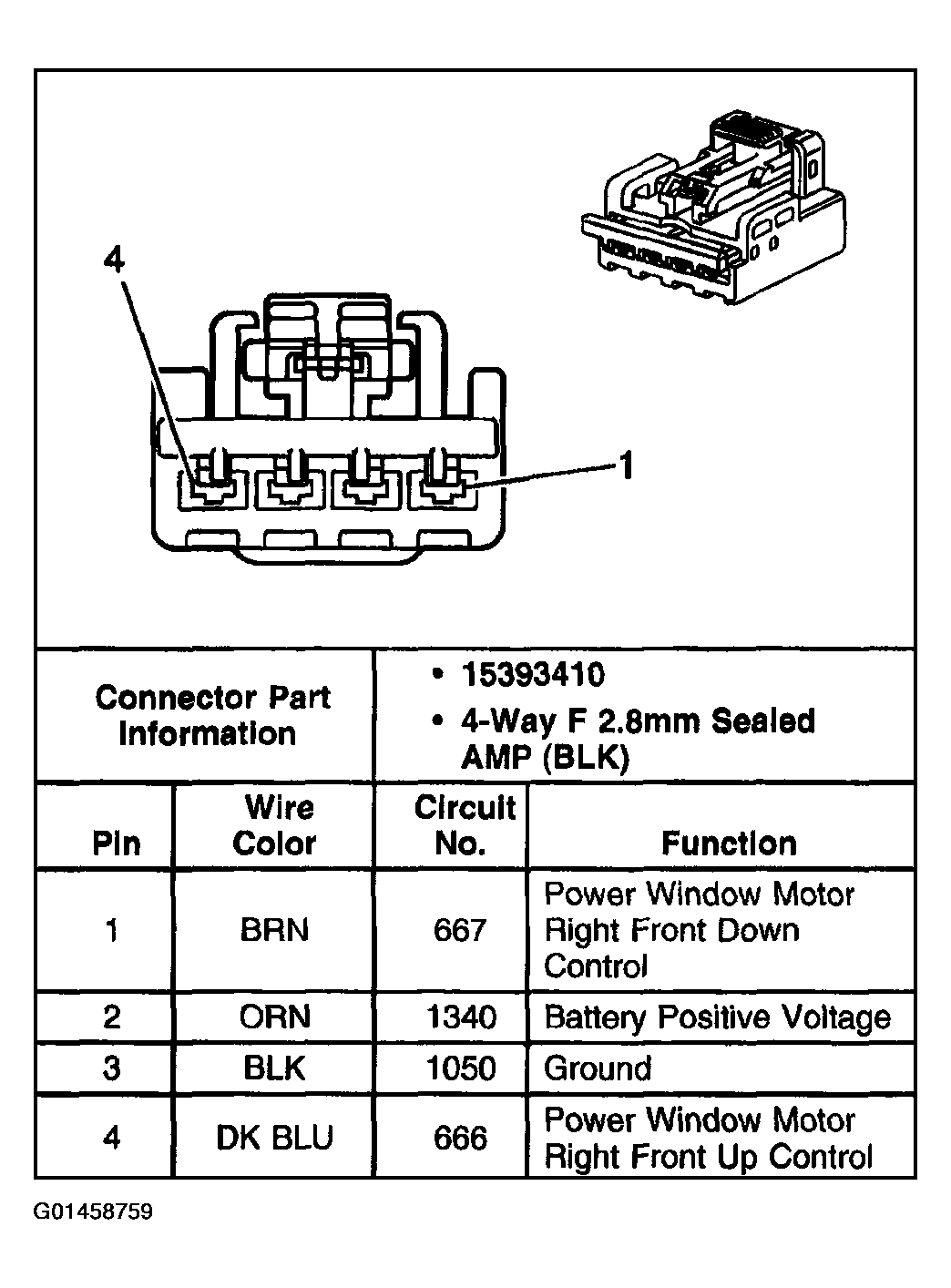

Fig 1: Front Passenger Door Module (FPDM) C1 Connector End View

G01458759

Courtesy of GENERAL MOTORS CORP.
