Rear Object Sensor Control Module Connector End View (1 Of 2)

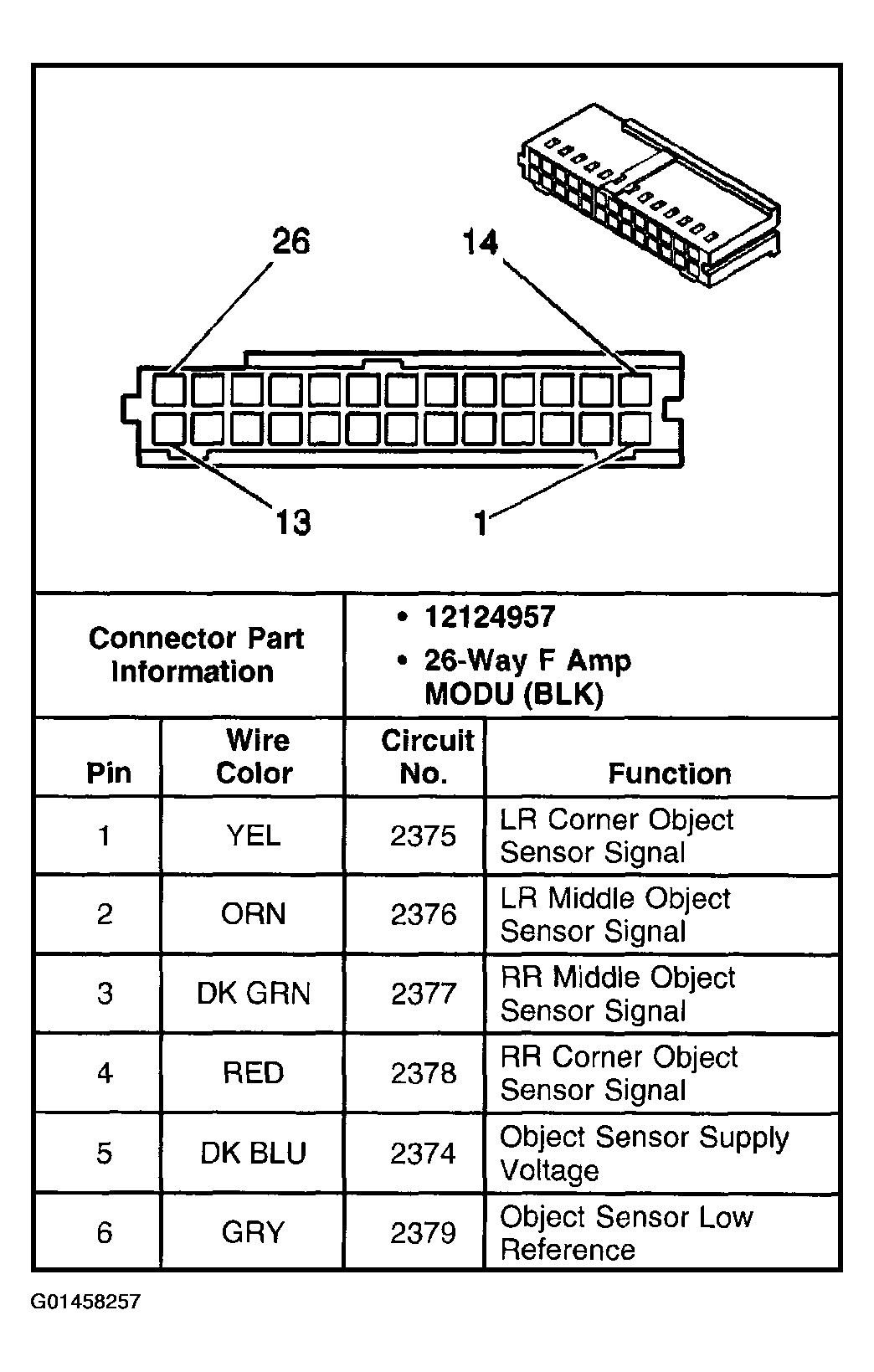

Fig 1: Rear Object Sensor Control Module Connector End View (1 Of 2)

G01458257

Courtesy of GENERAL MOTORS CORP.
