Object Sensor - LR Middle Connector End View
Object Sensor - LR Middle Connector End View

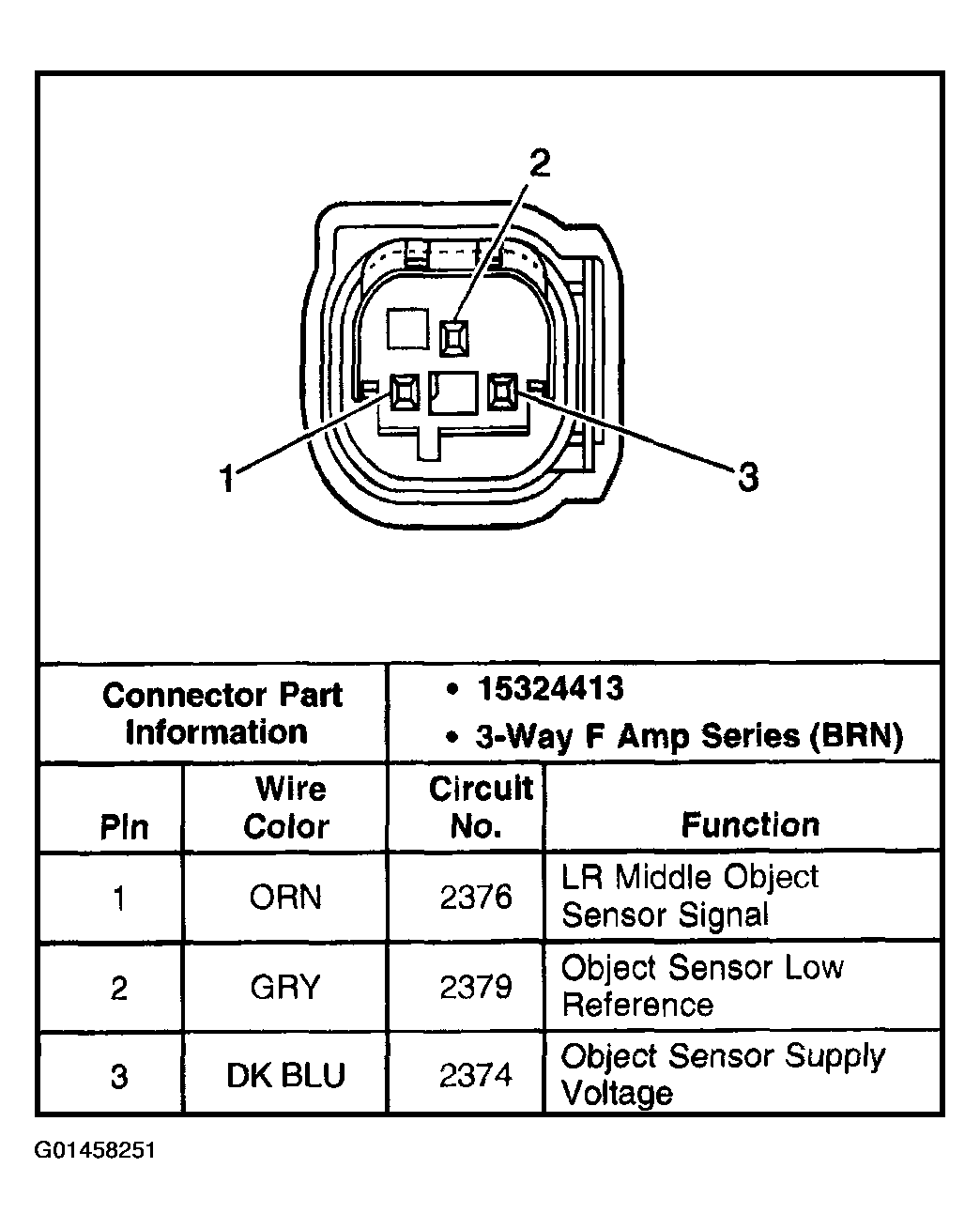

Fig 1: Object Sensor - LR Middle Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
