Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
HVAC Control Module C2 Connector End View
HVAC Control Module C2 Connector End View

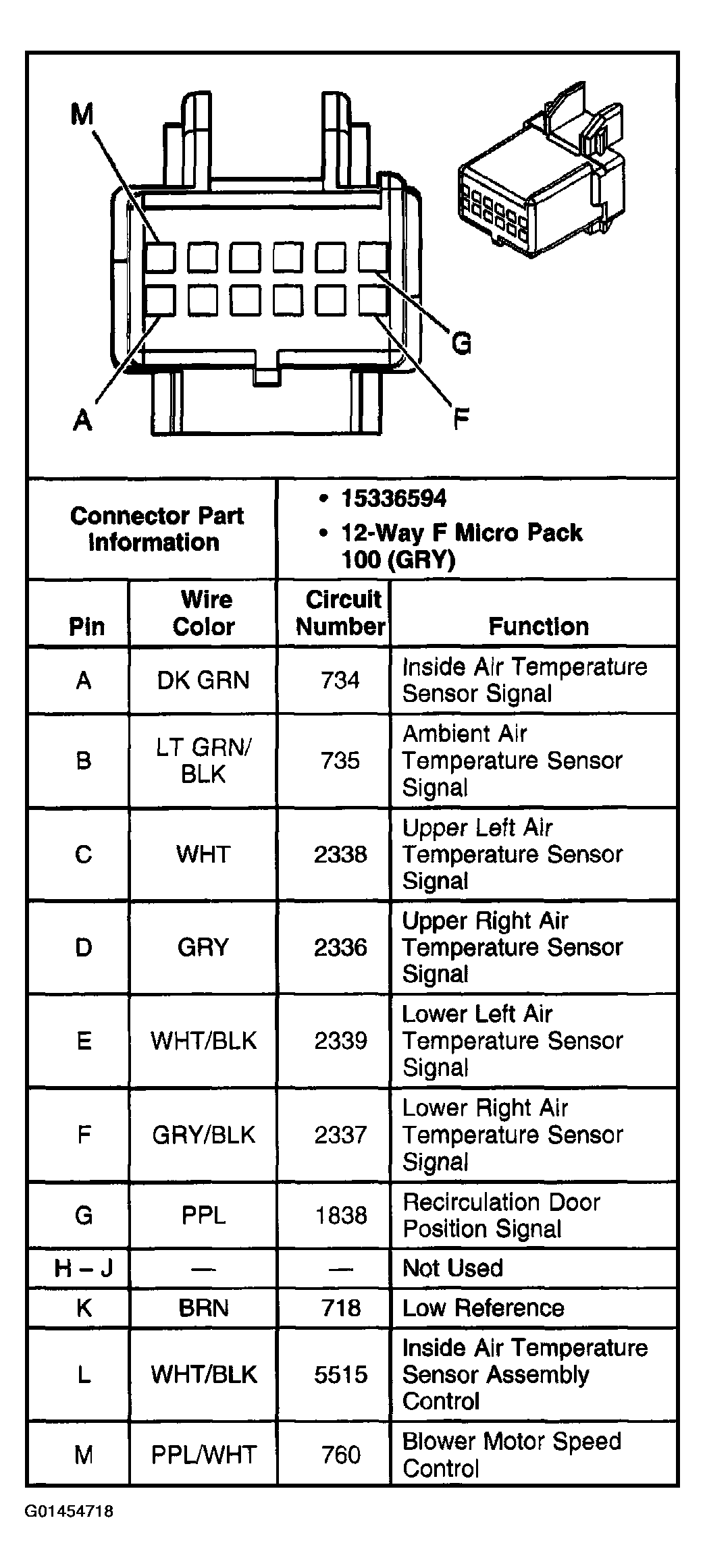

Fig 1: HVAC Control Module C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
