Steering Column Disassembled View (Column Shift Lean Shaft)

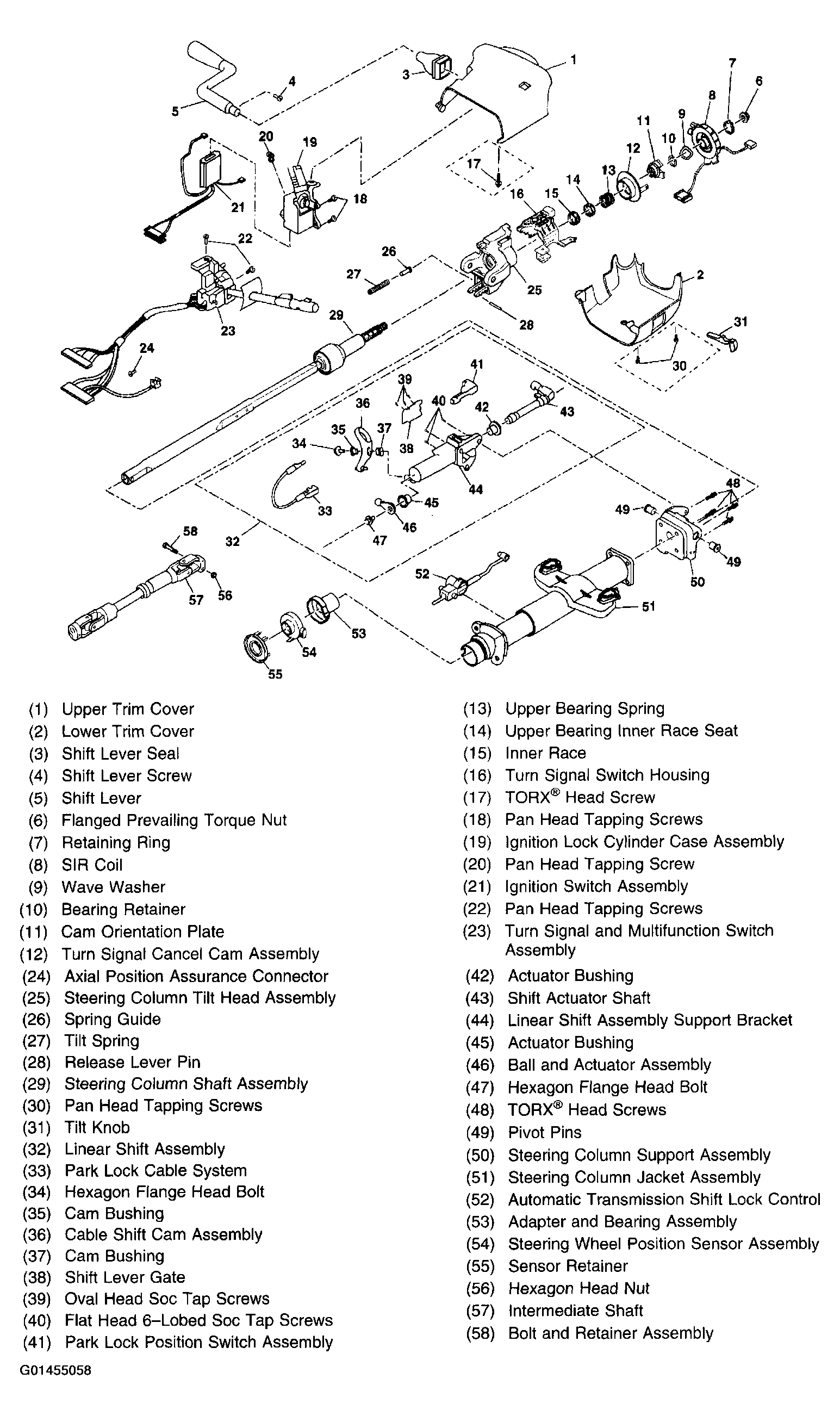

Fig 1: Identifying Tilt Steering Column Components

G01455058

Courtesy of GENERAL MOTORS CORP.
