Data Link Communications Component Views

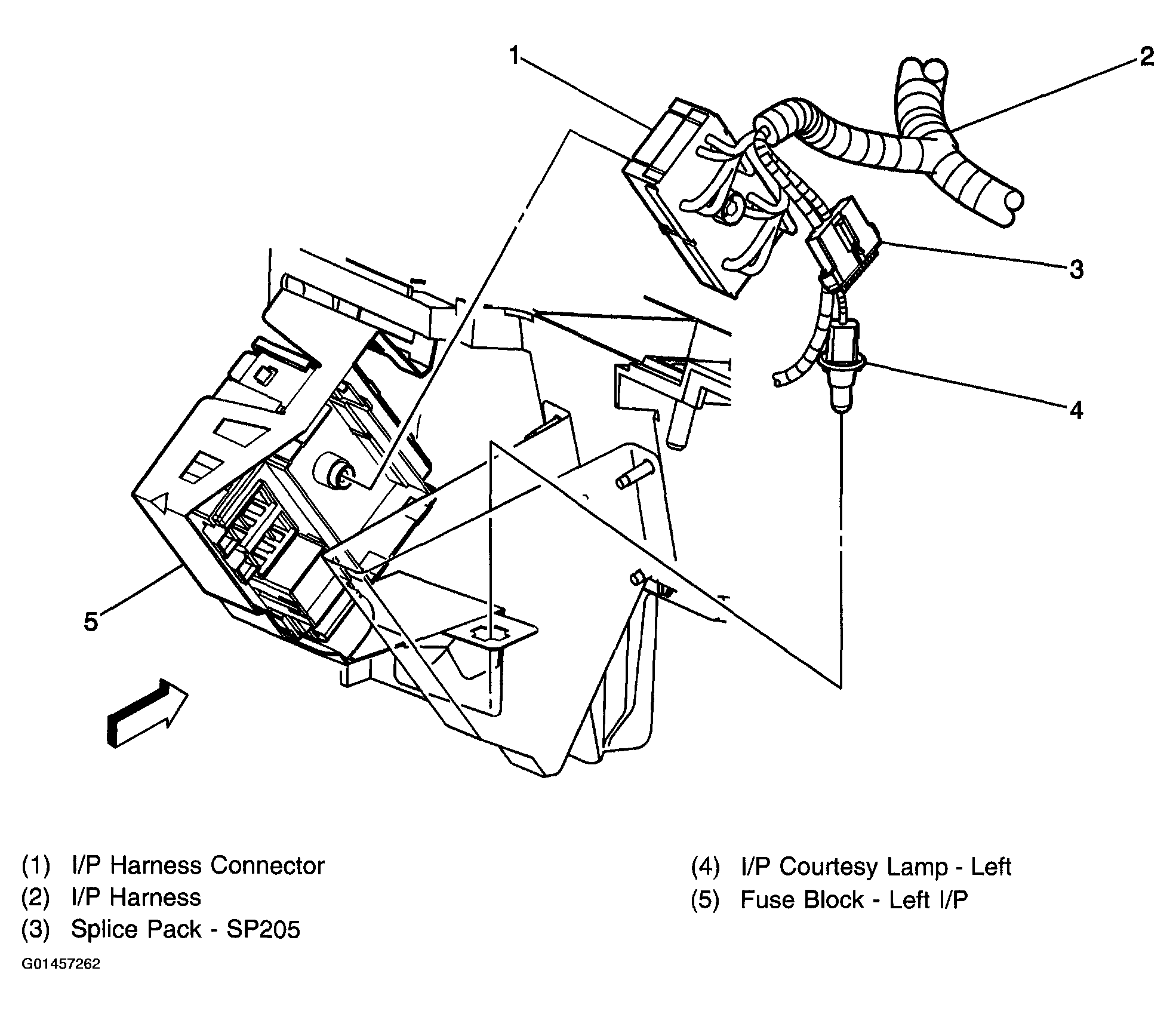

Fig 1: Exploded View Of Data Link Communications Component Splice Pack - SP205
G01457262Courtesy of GENERAL MOTORS CORP.

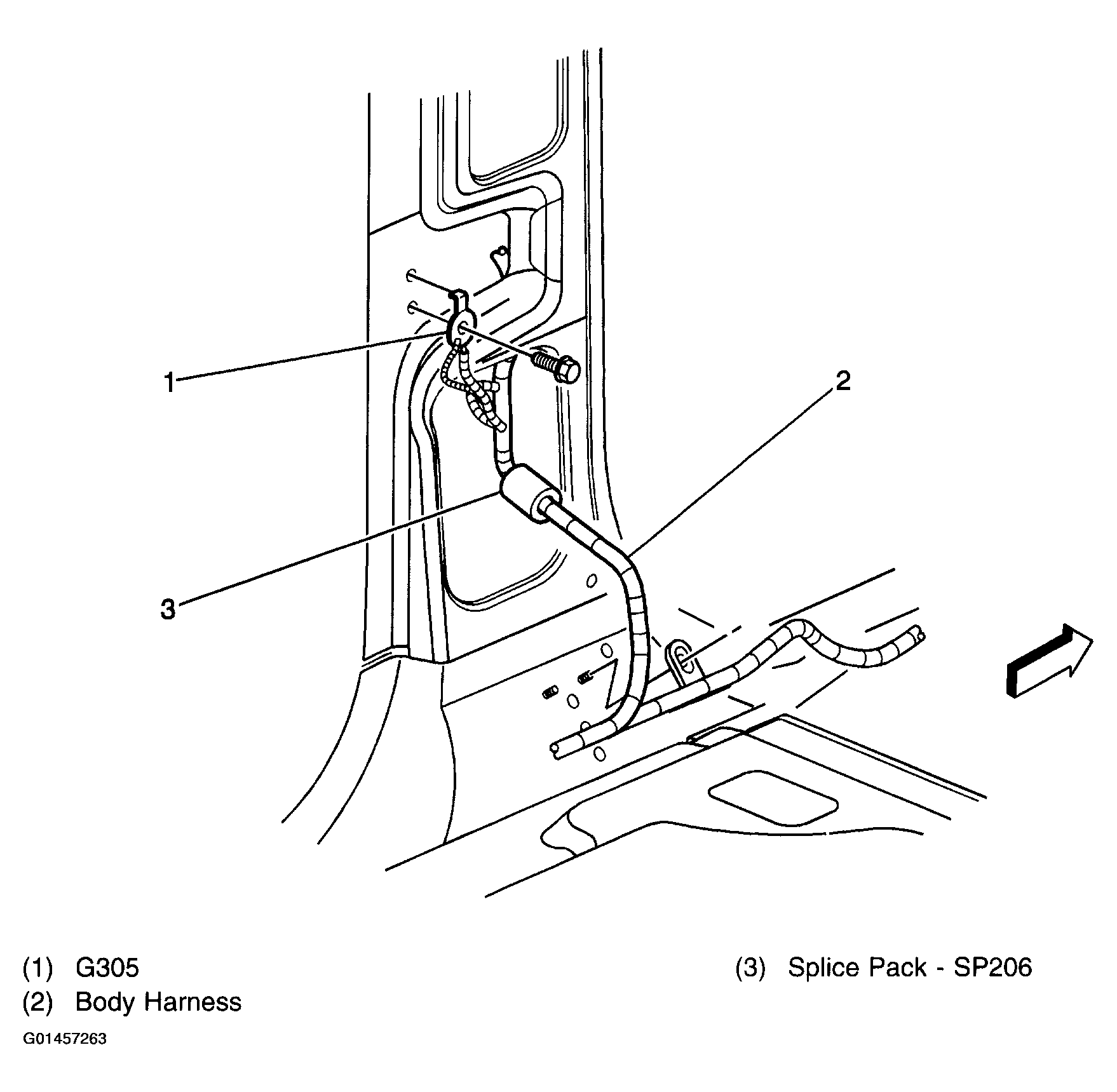

Fig 2: Exploded View Of Data Link Communications Component Splice Pack - SP206
G01457263Courtesy of GENERAL MOTORS CORP.

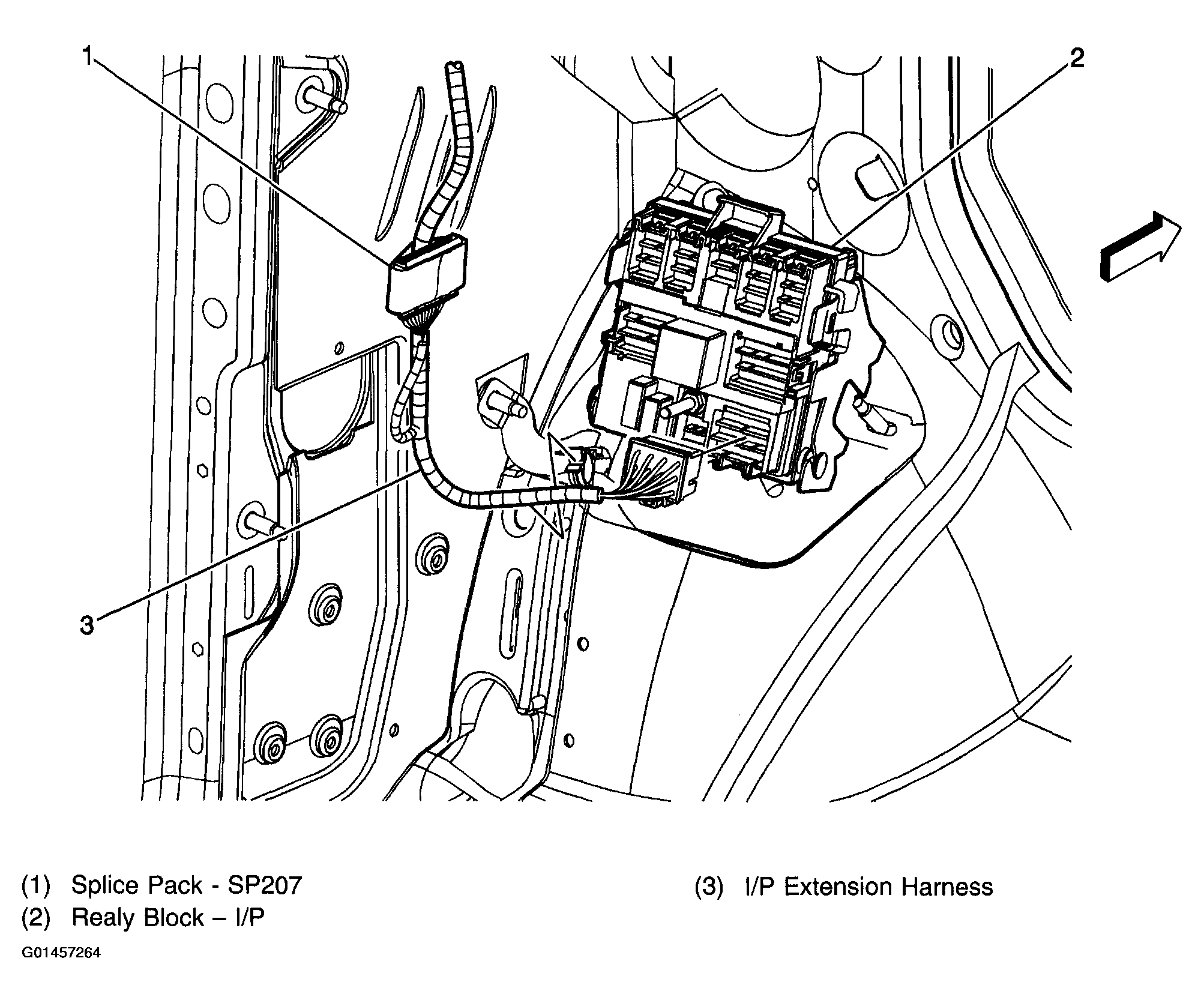

Fig 3: Exploded View Of Data Link Communications Component Splice Pack - SP207
G01457264Courtesy of GENERAL MOTORS CORP.
