Installation Procedure
NOTE:
Refer to FASTENER NOTICE

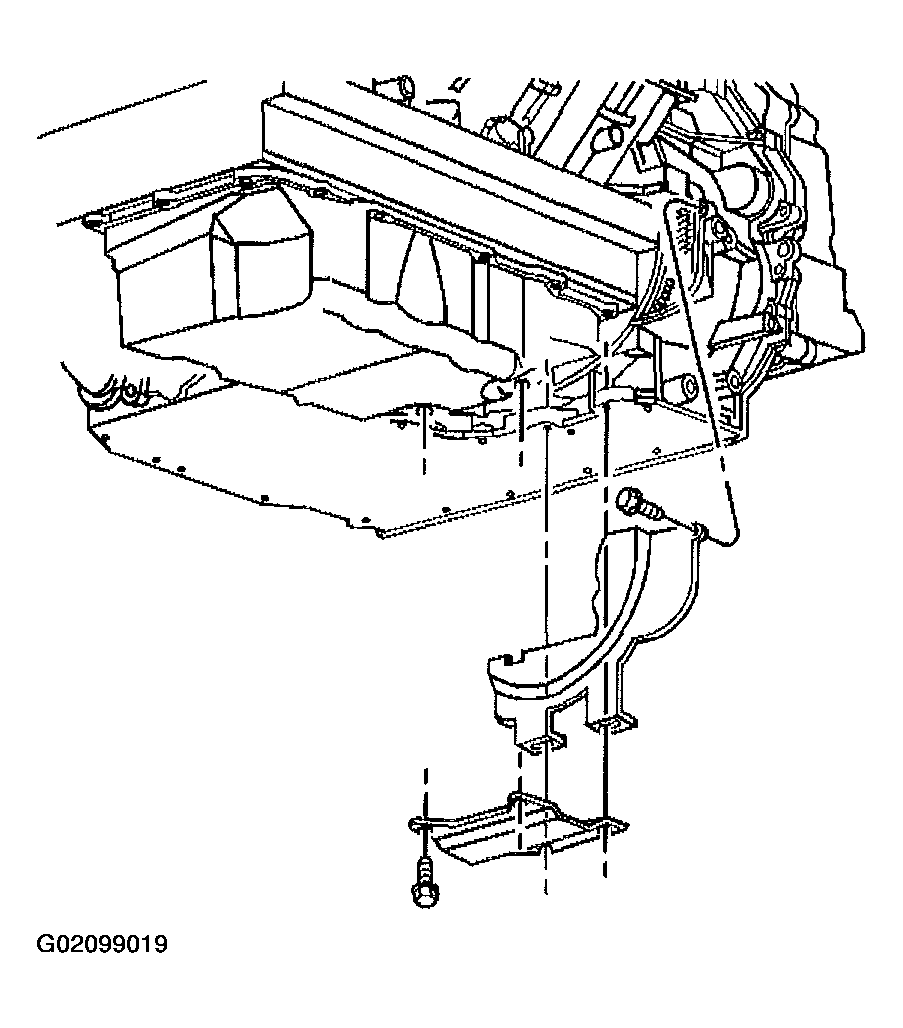

- Install the torque converter cover.
Tighten
Tighten the cover bolt to 12 N.m (106 lb in).
- Install the engine-to-transmission brace and attaching bolts.
Tighten
Tighten the bolts to 47 N.m (35 lb ft).
- Lower the vehicle.
