Installation Procedure

Important  : When installing the brake pedal switches, ensure that the brake pedal remains in the full up or at rest position.

1. Connect the upper switch (1) electrical connector.
2. Install the upper switch (1) into the upper retainer.
3. Twist the switch clockwise until fully seated.

   Important  : The release switch assembly and the stoplamp switch assembly cannot be adjusted until after the brake booster pushrod is assembled to brake pedal assembly. Incorrect adjustment may cause the cruise control system to not work properly.

4. Adjust the switch. Refer to TORQUE CONVERTER CLUTCH/CRUISE CONTROL RELEASE SWITCH REPLACEMENT  .

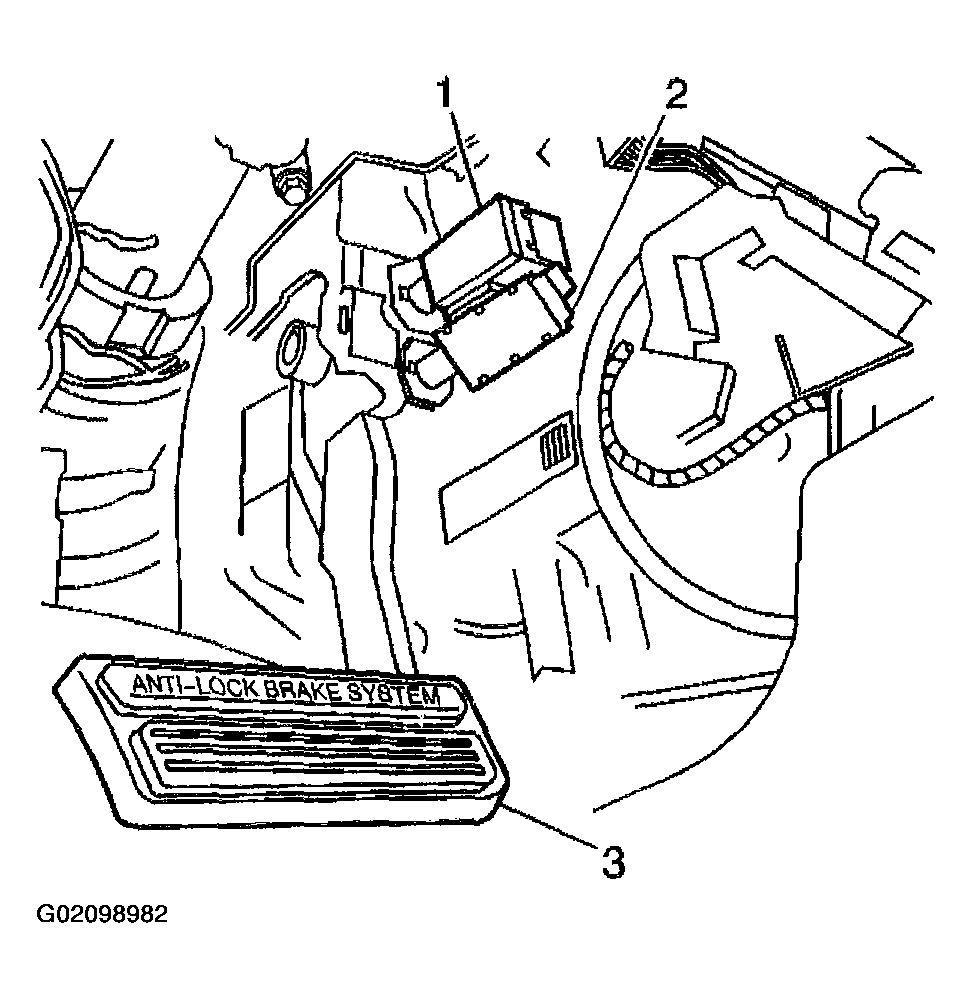

   Fig 1: Connecting Upper Switch & Electrical Connector

   Courtesy of GENERAL MOTORS CORP.
5. Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT
