Installation Procedure

  1. Inspect the output shaft (57) splines for burrs or damage. Inspect the snap rings (56) for overexpansion.

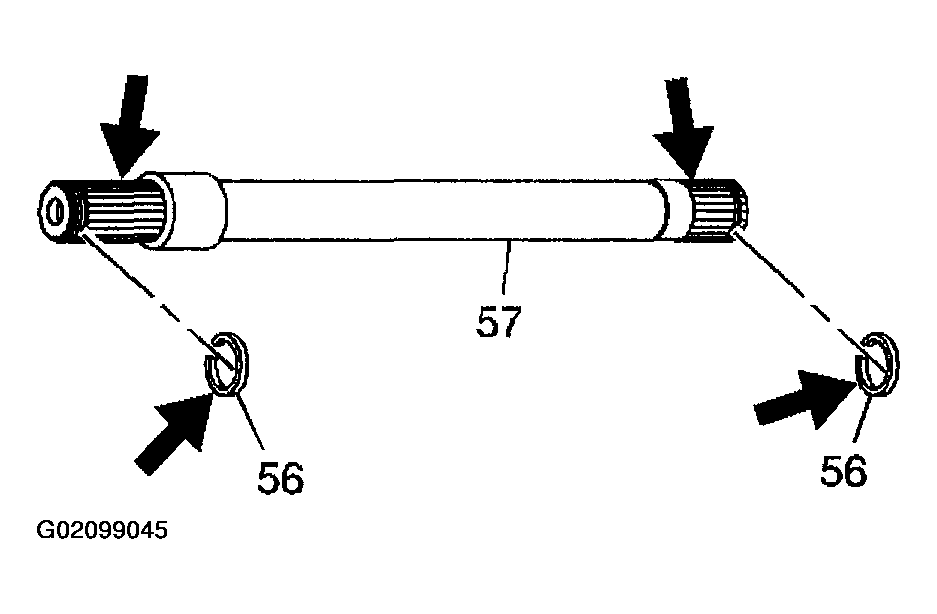

    Fig 1: Inspecting Output Shaft Splines & Snap Rings
    G02099045Courtesy of GENERAL MOTORS CORP.
  2. Install the snap rings (56) onto the output shaft and install the output shaft (57) from the channel plate side of the transmission.
  3. Install the differential carrier. Refer to DIFFERENTIAL CARRIER REPLACEMENT  .
  4. Install the left drive axle. Refer to AXLE SHAFTS

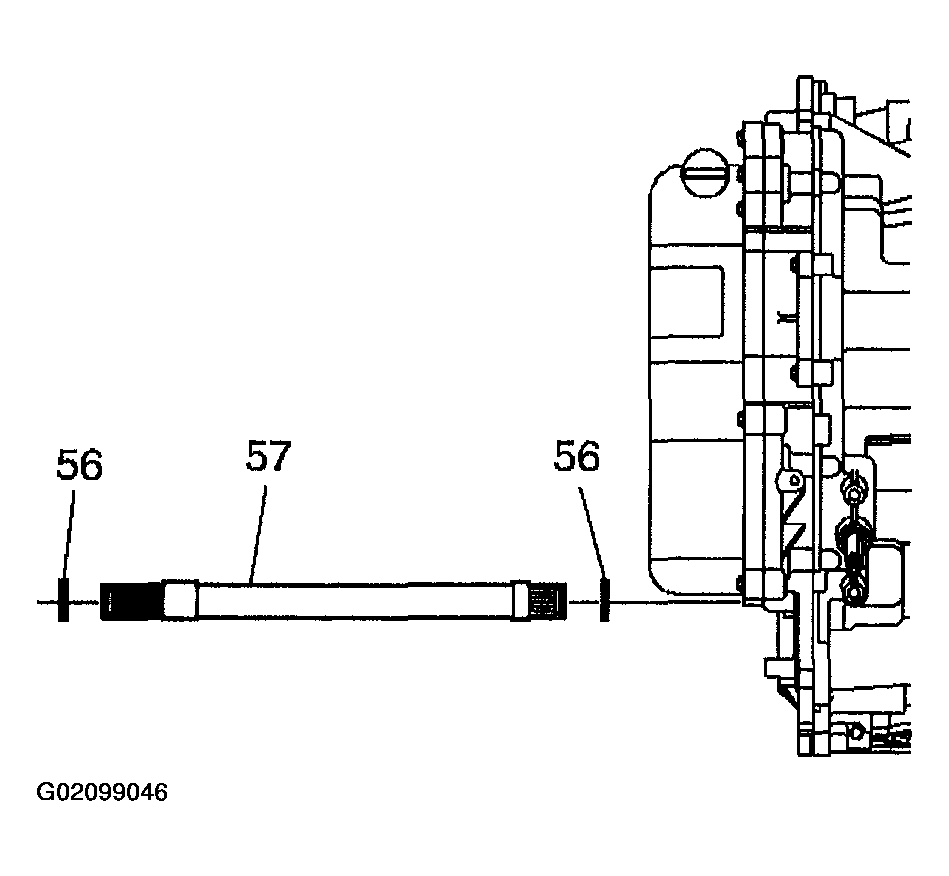

    Fig 2: Installing Snap Rings Onto Output Shaft & Output Shaft
    G02099046Courtesy of GENERAL MOTORS CORP.
