Installation Procedure

NOTE: Refer to FASTENER NOTICE
  1. Install the oil pressure test plug (1)

    Tighten

    Tighten the oil pressure test plug to 12 N.m (106 lb in).

  2. Install the throttle body air inlet duct. Refer to AIR CLEANER INTAKE DUCT 6L.

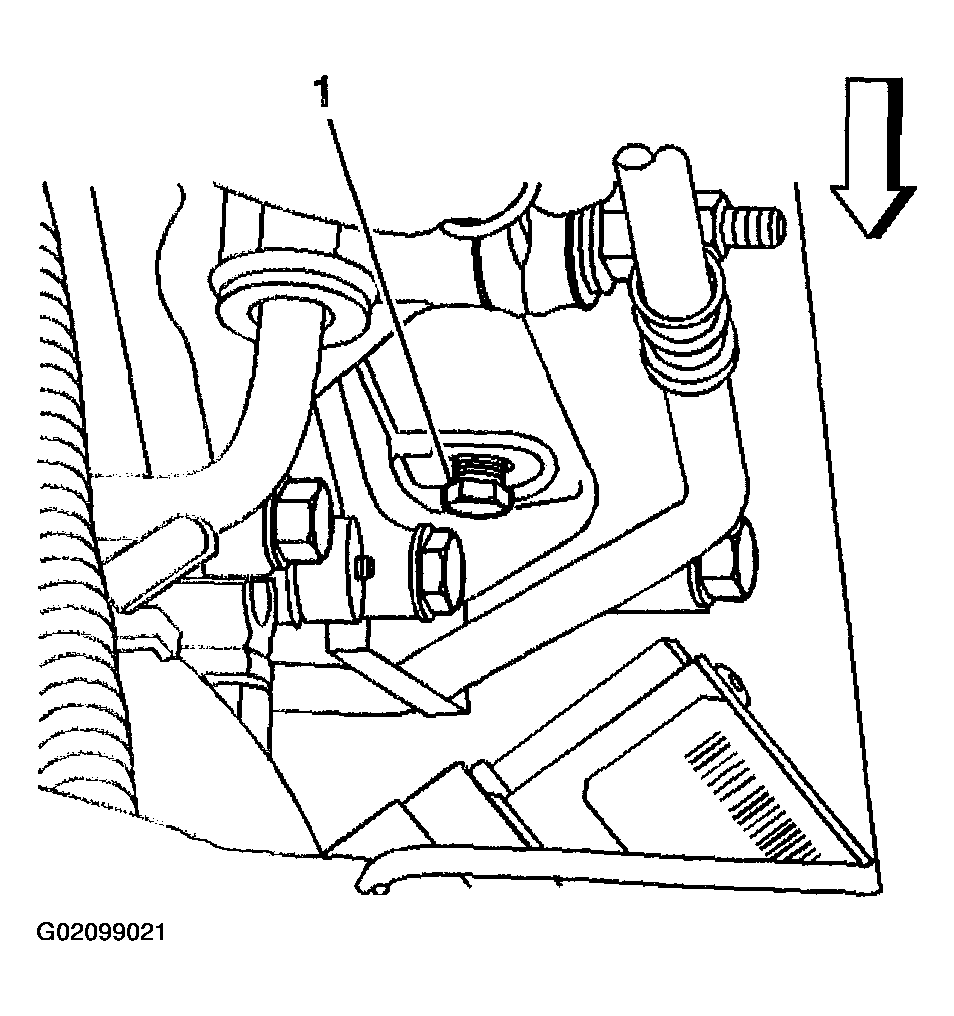

    Fig 1: Installing Oil Pressure Test Plug
    G02099021Courtesy of GENERAL MOTORS CORP.
