Installation Procedure

Install the shift cable through the cowl panel and seat the grommet.

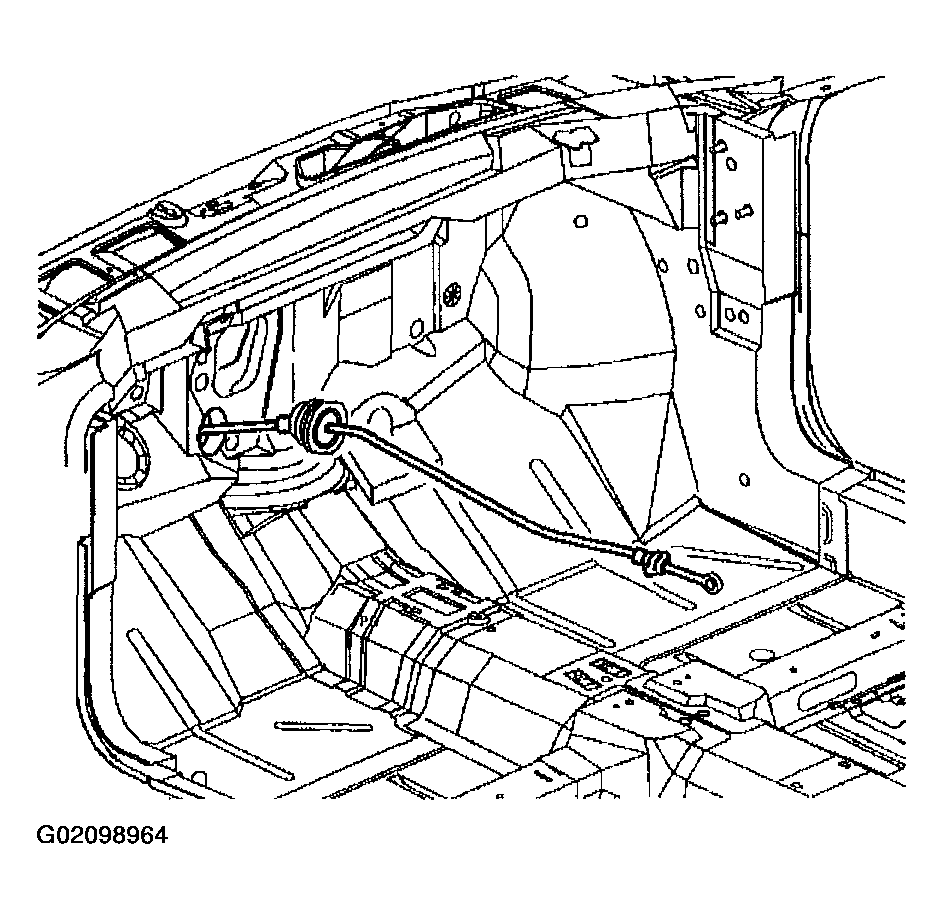

Fig 1: Installing Shift Cable Through Cowl Panel & Seat Grommet
Courtesy of GENERAL MOTORS CORP.
Slide the transaxle range selector cable (2) fully into the bracket until it snaps into place.

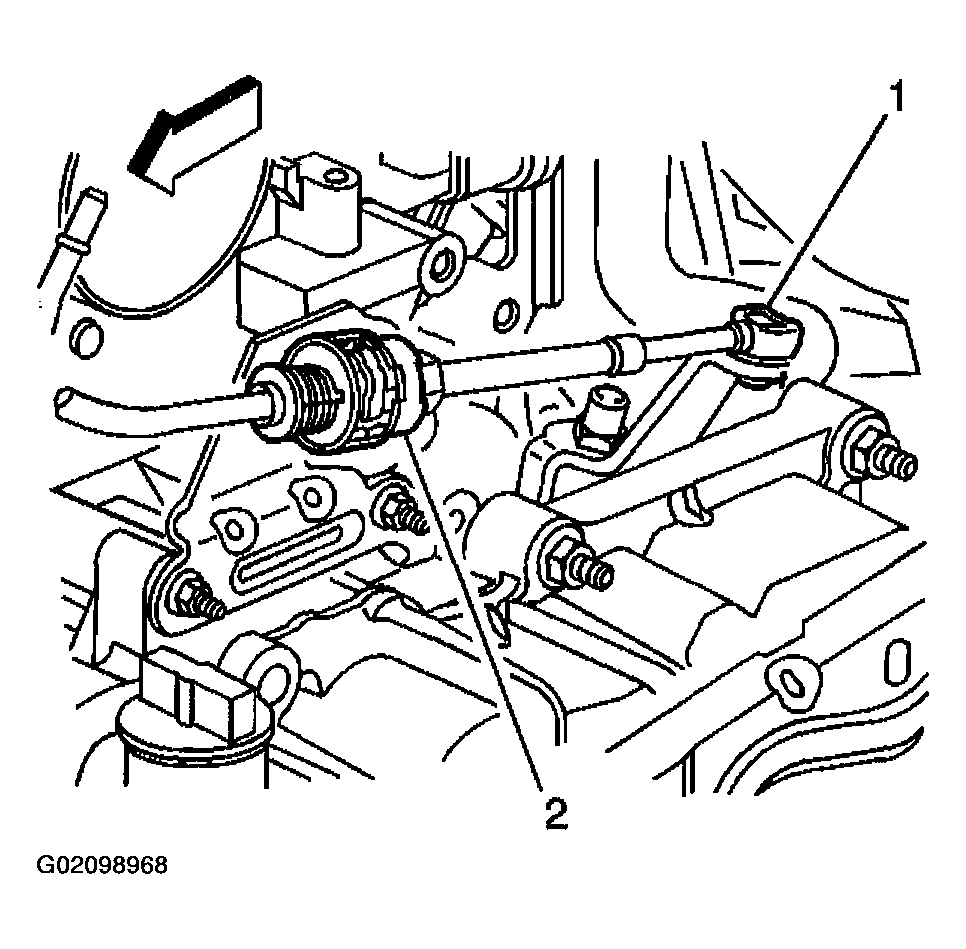

Fig 2: Sliding Transaxle Range Selector Cable Fully Into Bracket
Courtesy of GENERAL MOTORS CORP.
Connect the transaxle range selector cable terminal to the shift lever pin.

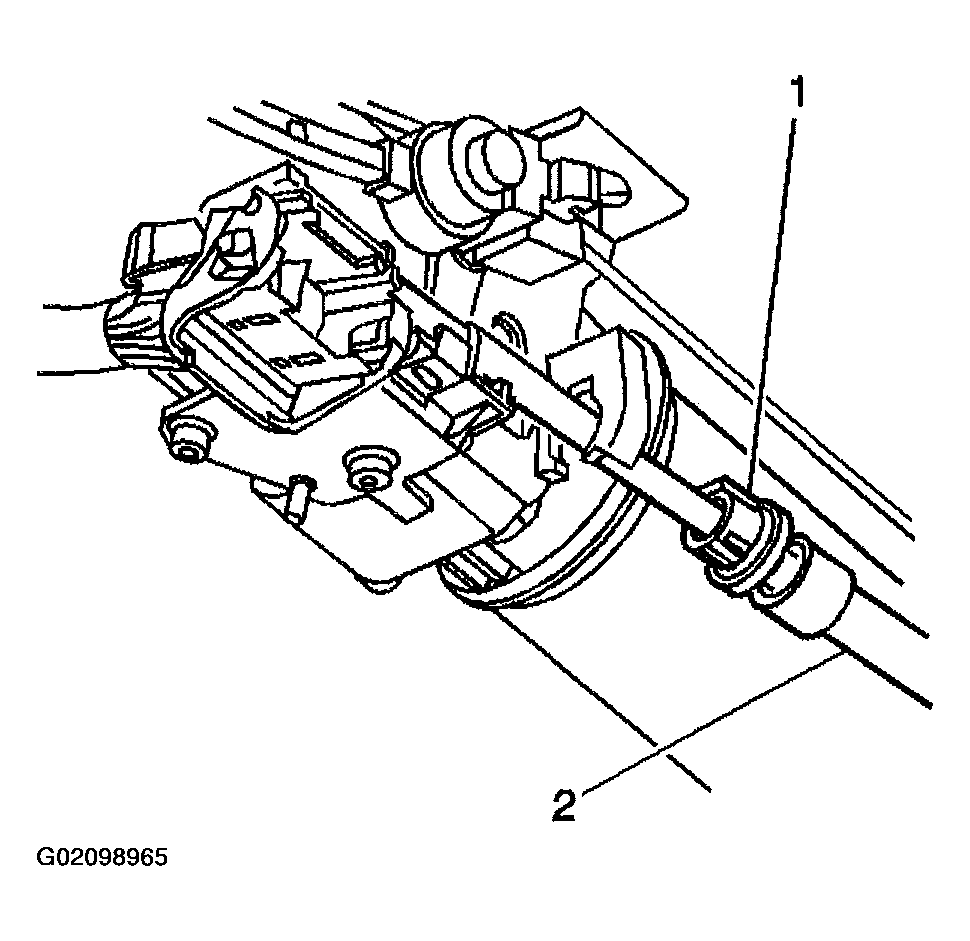

Fig 3: Connecting Transaxle Range Selector Cable Terminal To Shift Lever Pin
Courtesy of GENERAL MOTORS CORP.
Install the retainer to the transaxle range selector cable mechanism.
Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT

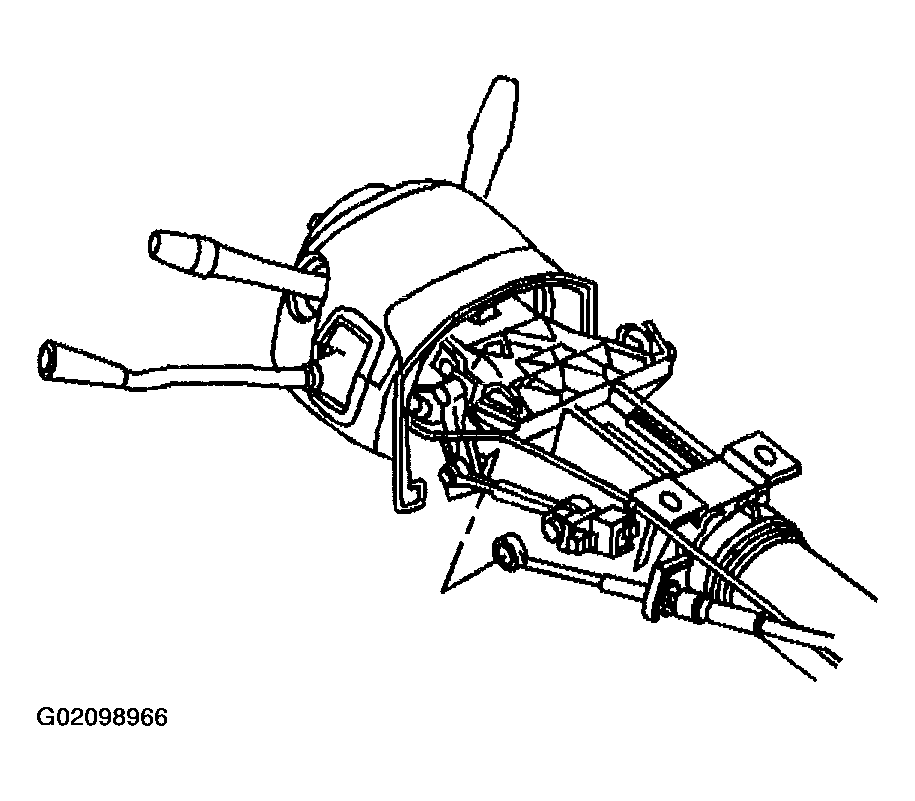

Fig 4: Installing Retainer To Transaxle Range Selector Cable Mechanism
Courtesy of GENERAL MOTORS CORP.
Insert the transaxle range selector cable (2) into the bracket.
Connect the transaxle range selector cable terminal to the transaxle manual shift lever pin (1).
Install the retainer to the transaxle range selector cable mechanism.
Adjust the automatic transmission range selector cable. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT .

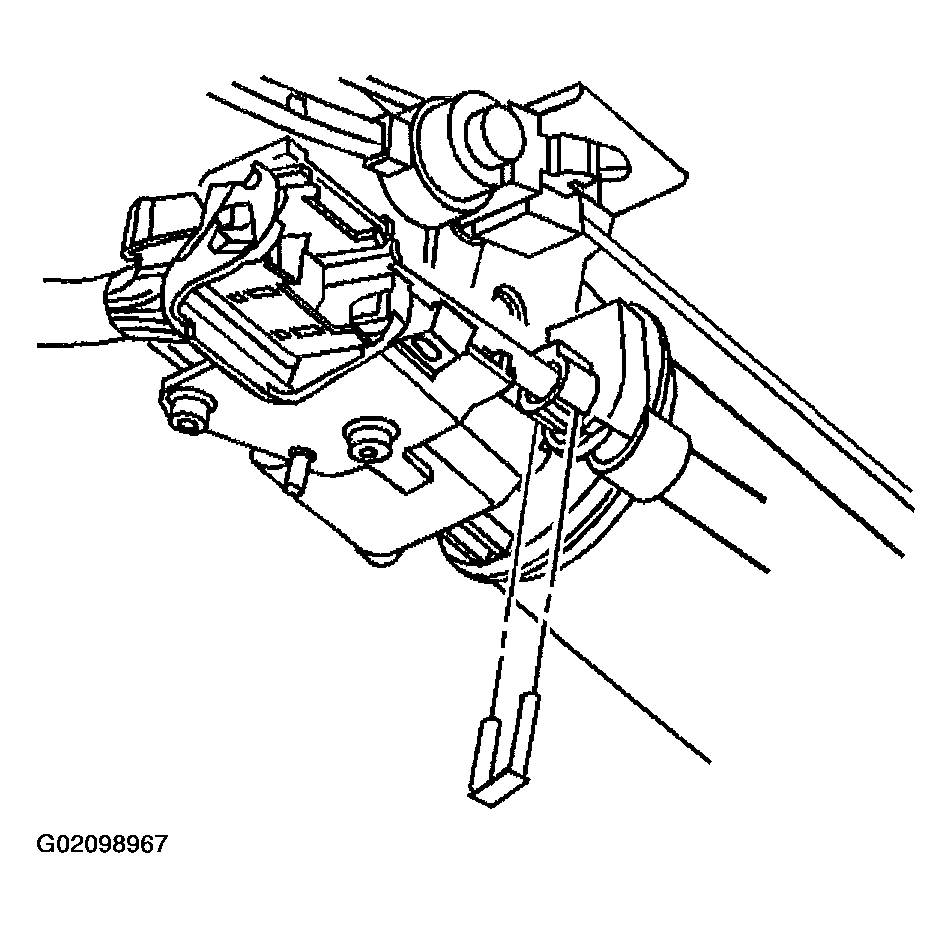

Fig 5: Connecting Transaxle Range Selector Cable
Courtesy of GENERAL MOTORS CORP.
