Automatic Transmission Internal Connector End Views

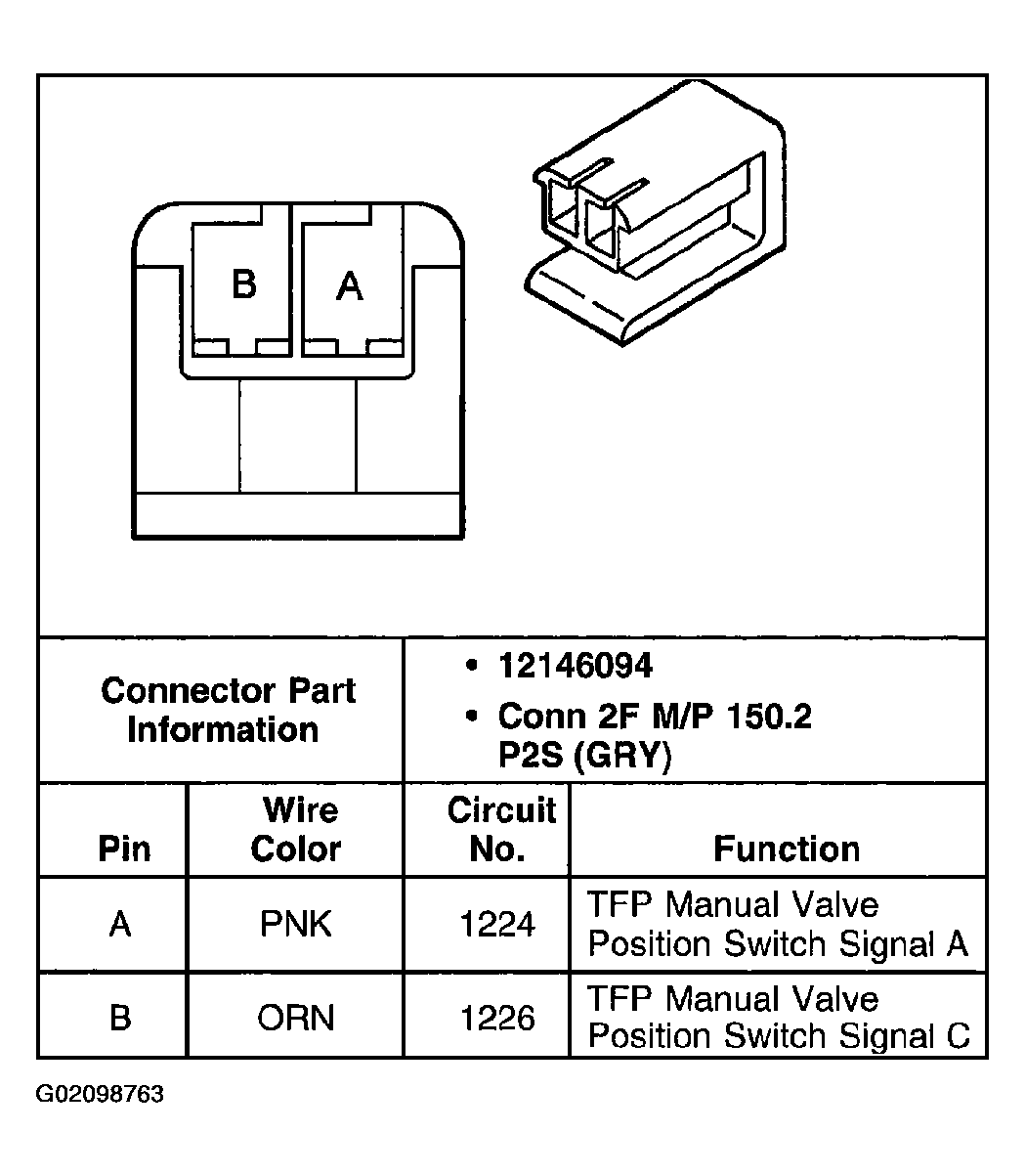

Fig 1: Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

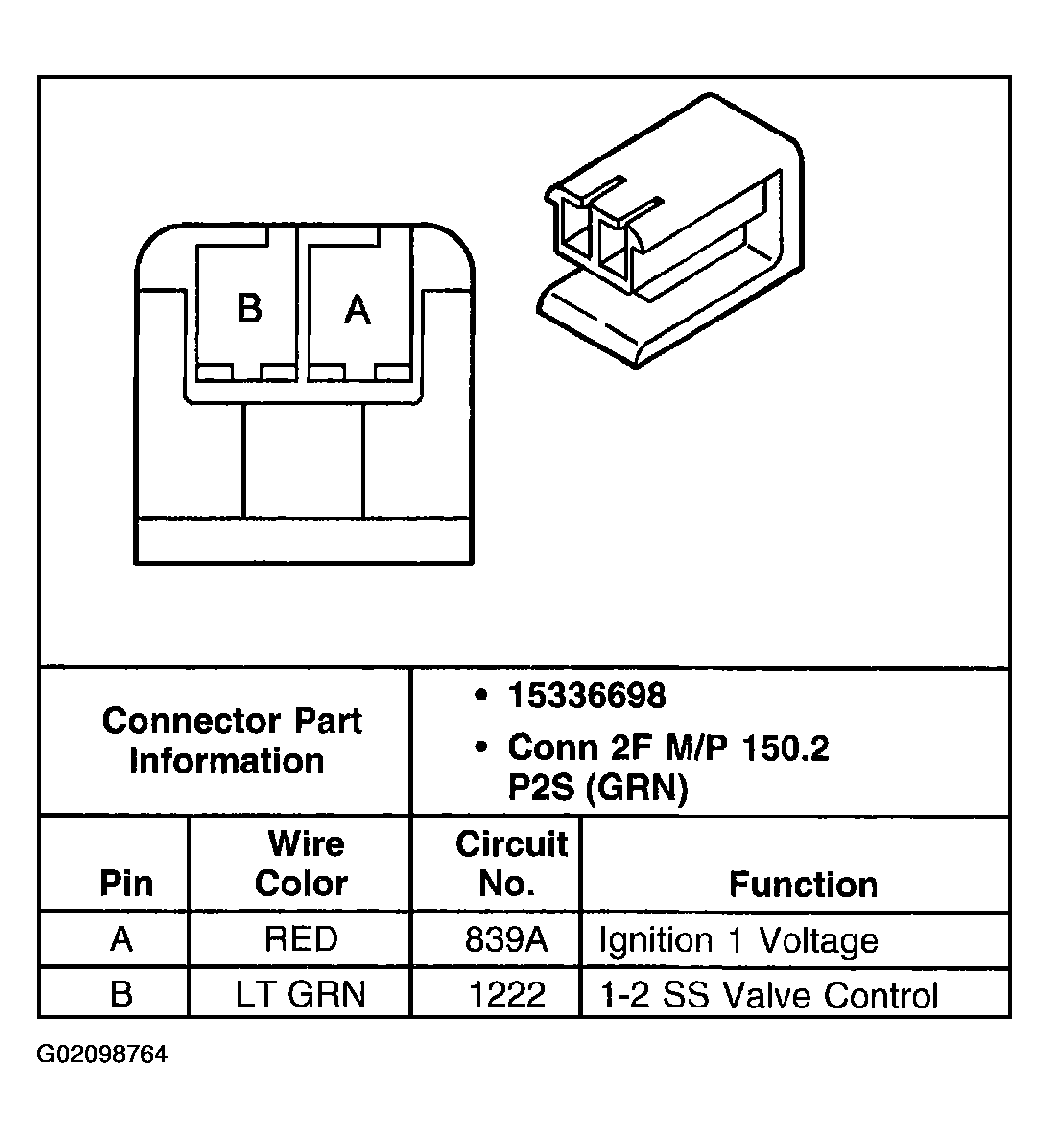

Fig 2: Identifying 1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

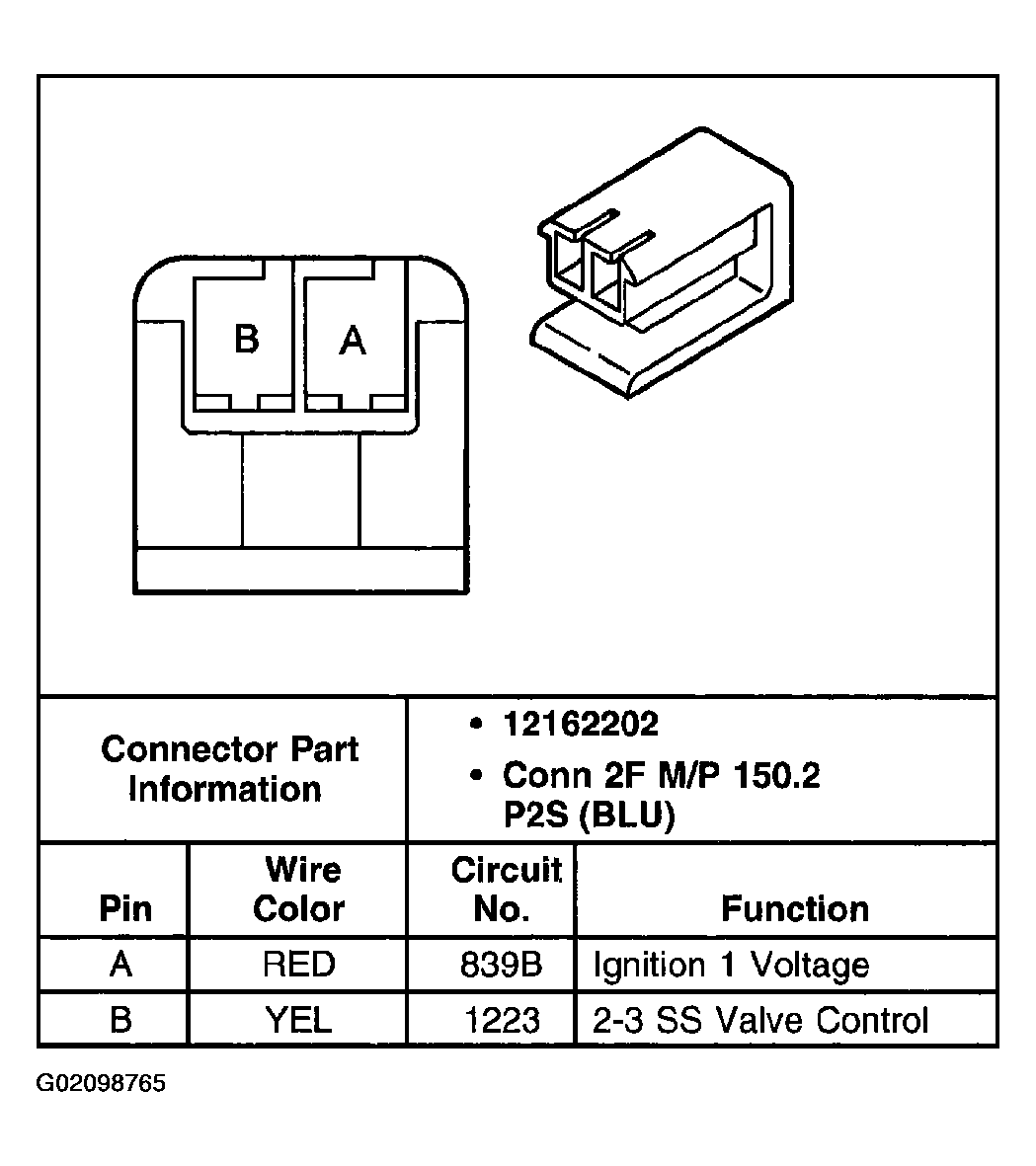

Fig 3: Identifying 2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

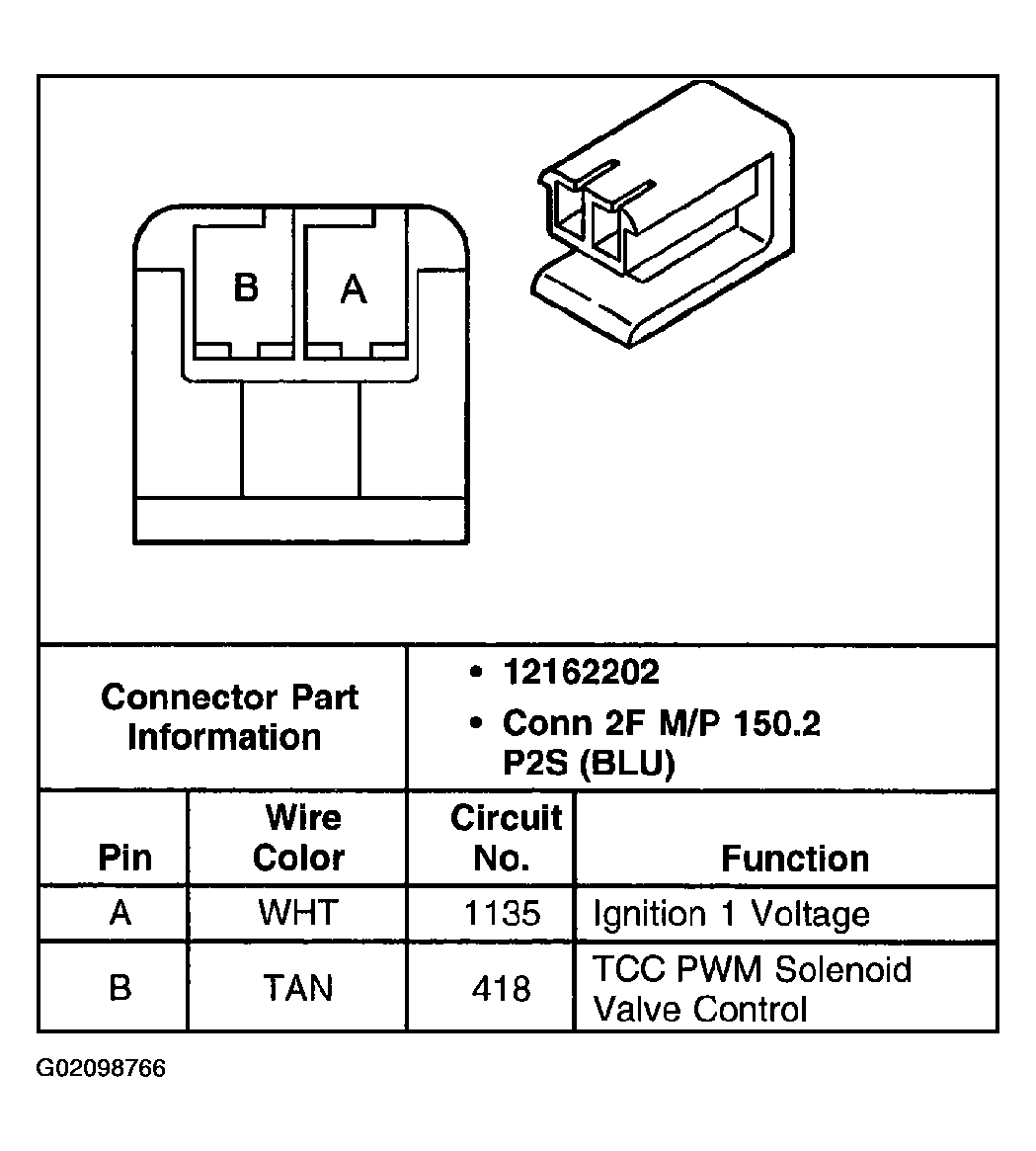

Fig 4: Identifying Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

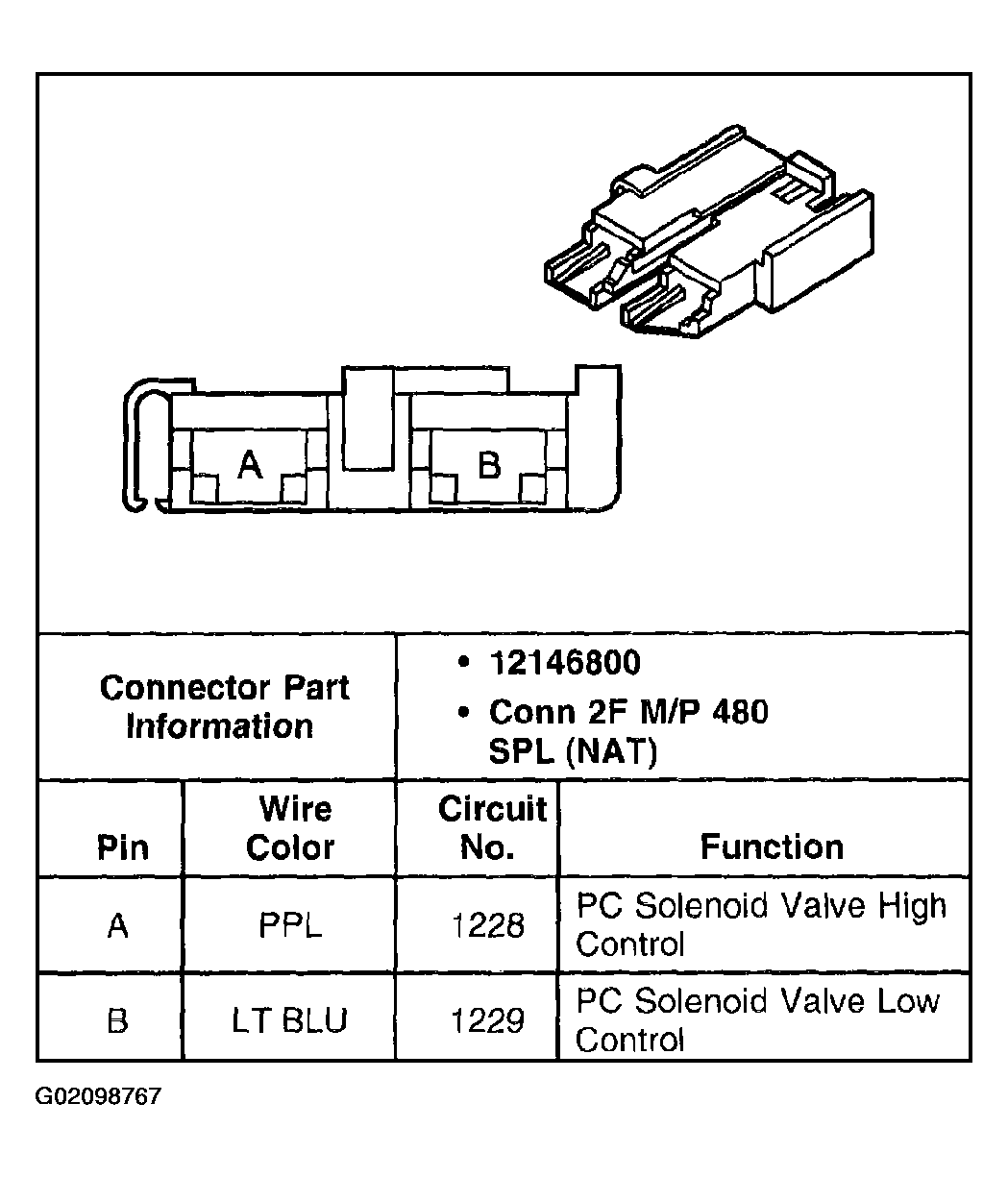

Fig 5: Identifying Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

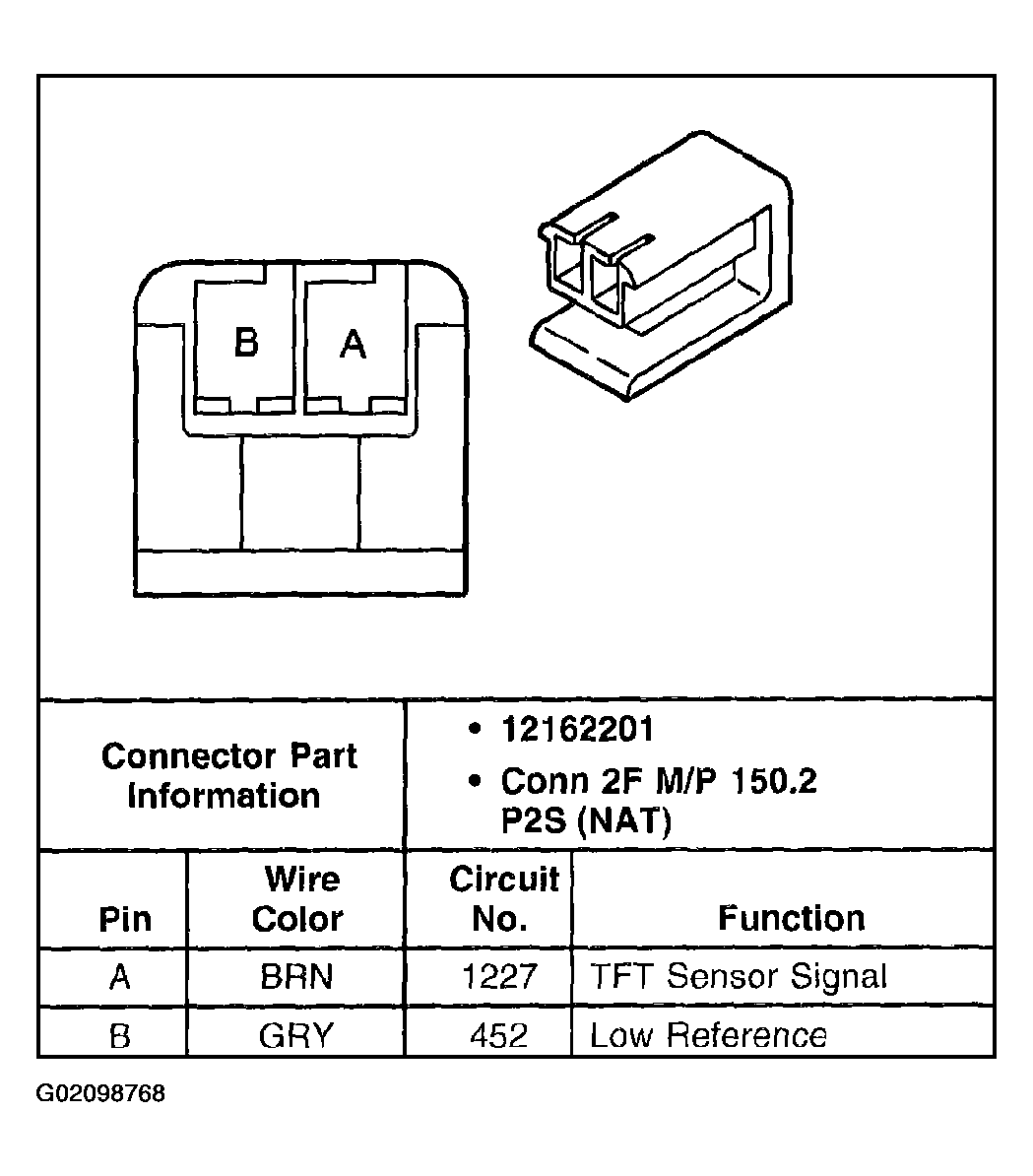

Fig 6: Identifying Transmission Fluid Temperature (TFT) Sensor Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

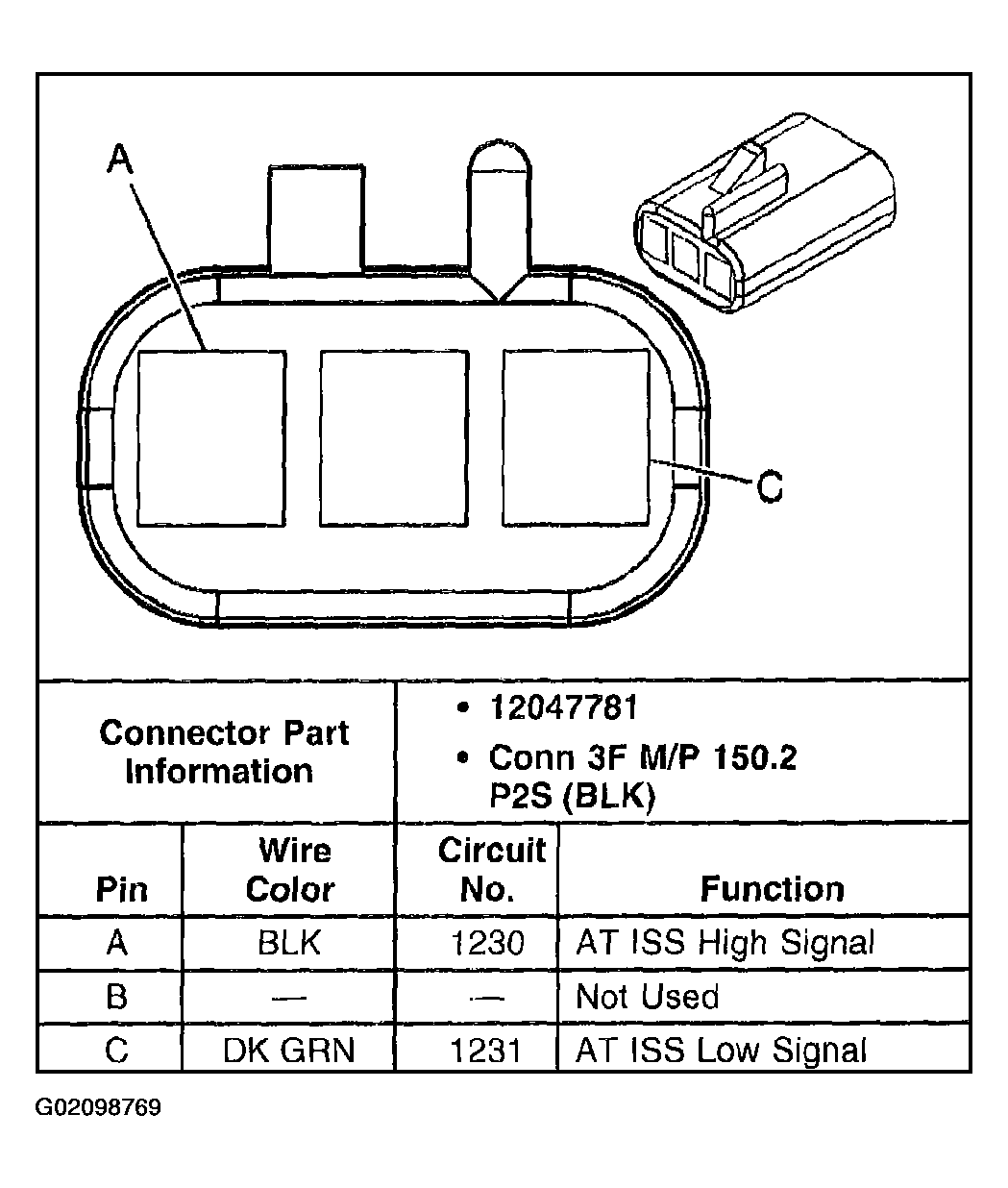

Fig 7: Identifying Automatic Transmission Input (Shaft) Speed Sensor (AT ISS) Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

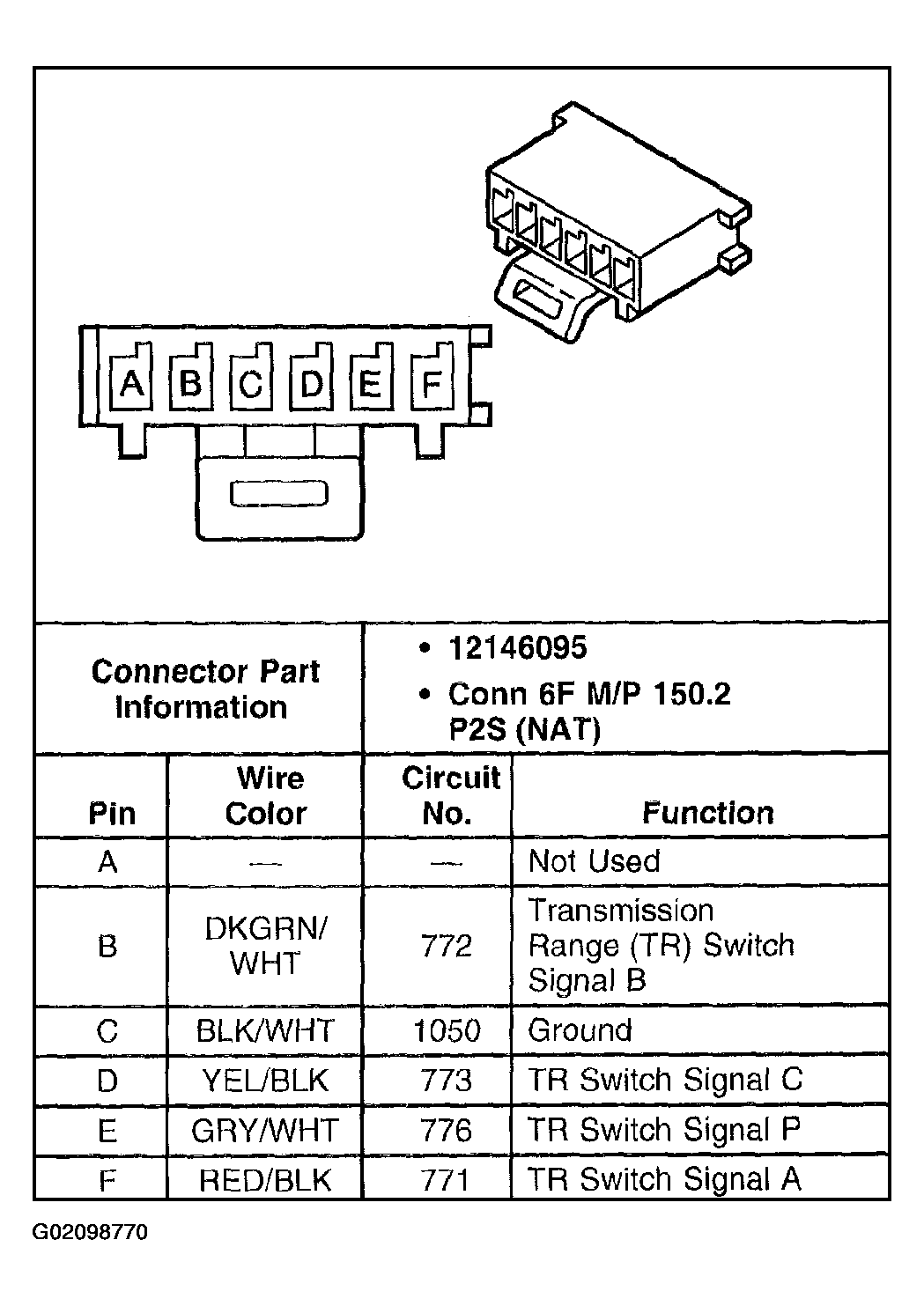

Fig 8: Identifying Internal Mode Switch (IMS) Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

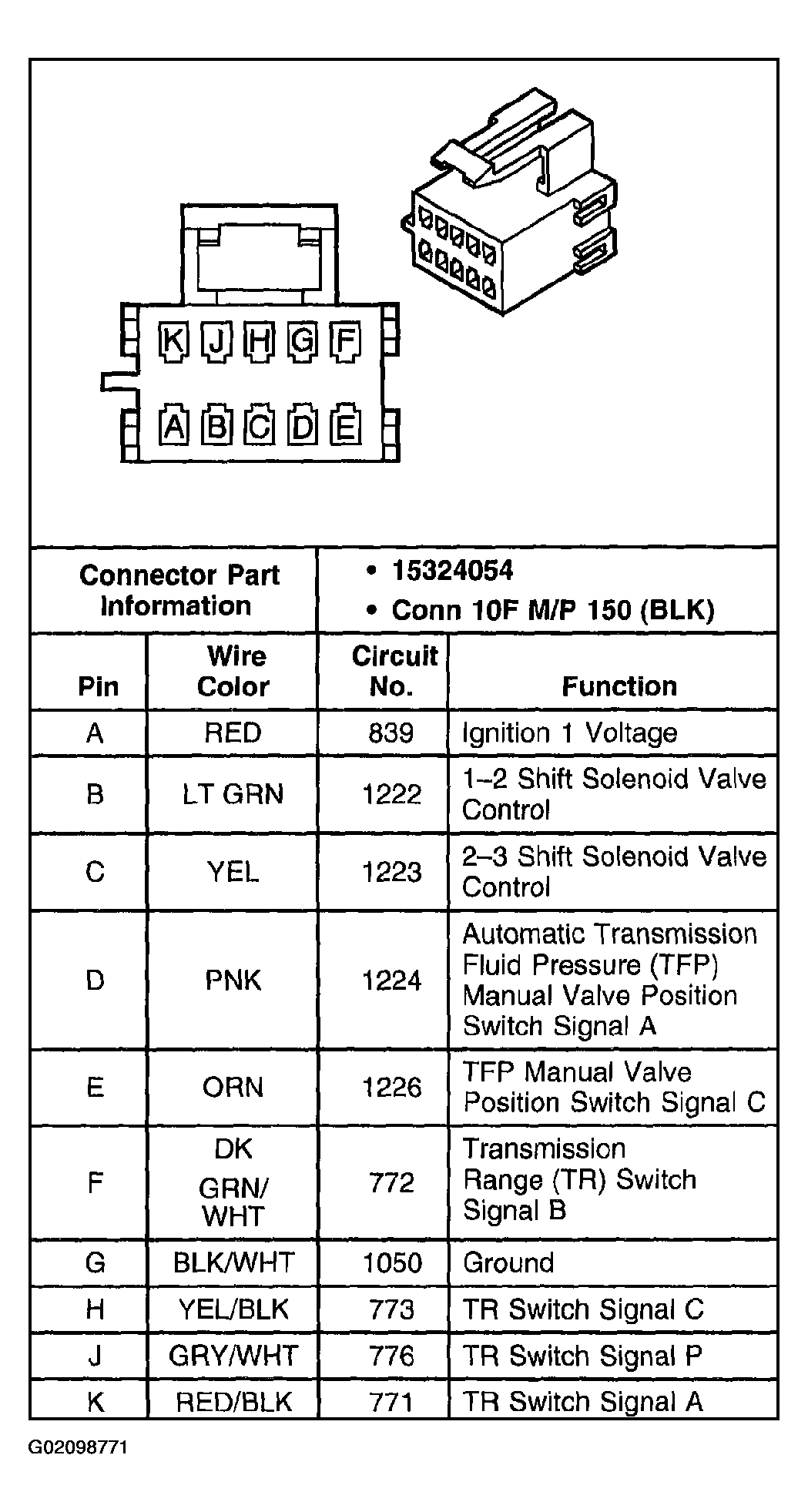

Fig 9: Identifying Inline Connector, Automatic Transmission Wiring Harness Assembly Side

Courtesy of GENERAL MOTORS CORP.

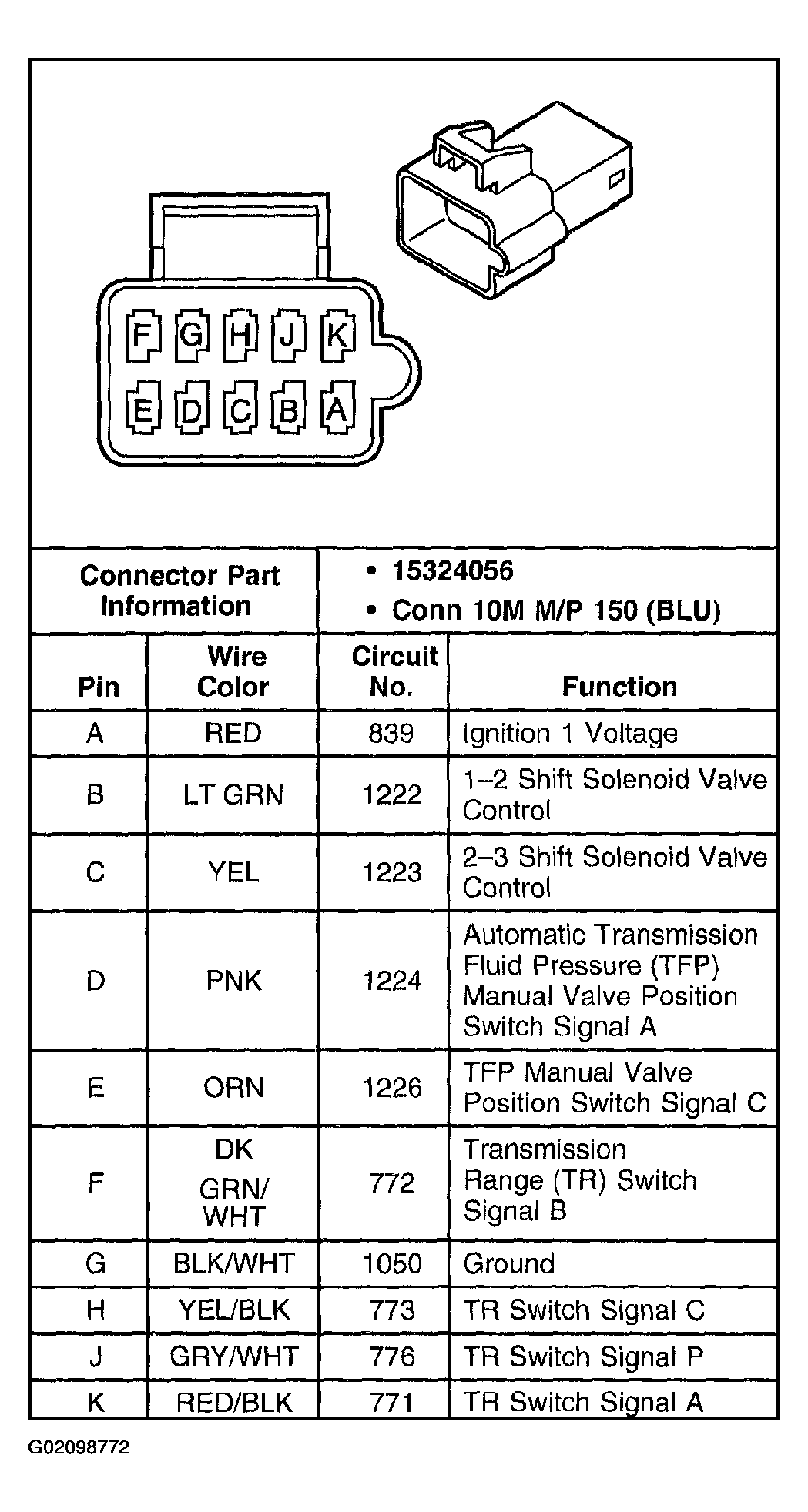

Fig 10: Identifying Inline Connector, Automatic Transmission Wiring Extension Harness Assembly Side

Courtesy of GENERAL MOTORS CORP.
