Installation Procedure

  1. Align the ignition lock cylinder case (2) with the steering column tilt head assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Screw the 3 TORX® screws (2) into the ignition lock cylinder case (1).

    Tighten

    Tighten the 3 TORX® screws to 7 N.m (62 lb in).

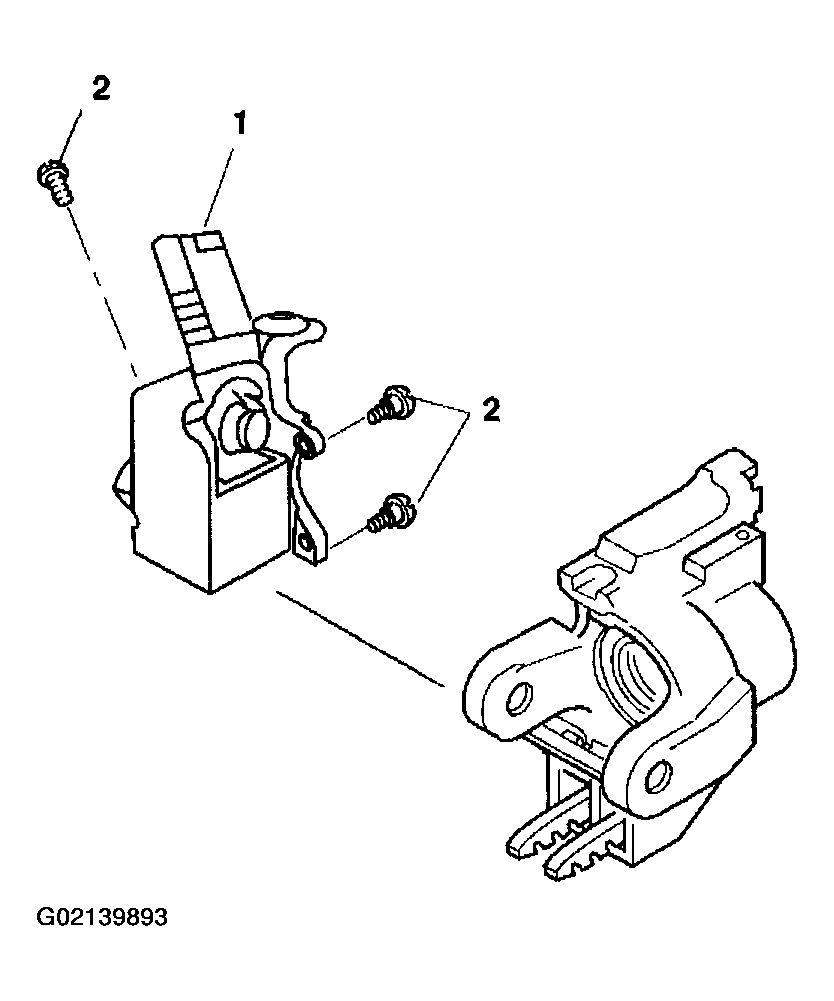

    Fig 1: Installing Screw 3 TORX® Screws Into Ignition Lock Cylinder Case
    G02139893Courtesy of GENERAL MOTORS CORP.
  3. Place steering column lock cylinder set into the OFF position.
  4. Place the shift lever clevis into the PARK position.
  5. Press the locking tab on the end of the park lock cable assembly (1) into the slot in the ignition lock cylinder case.

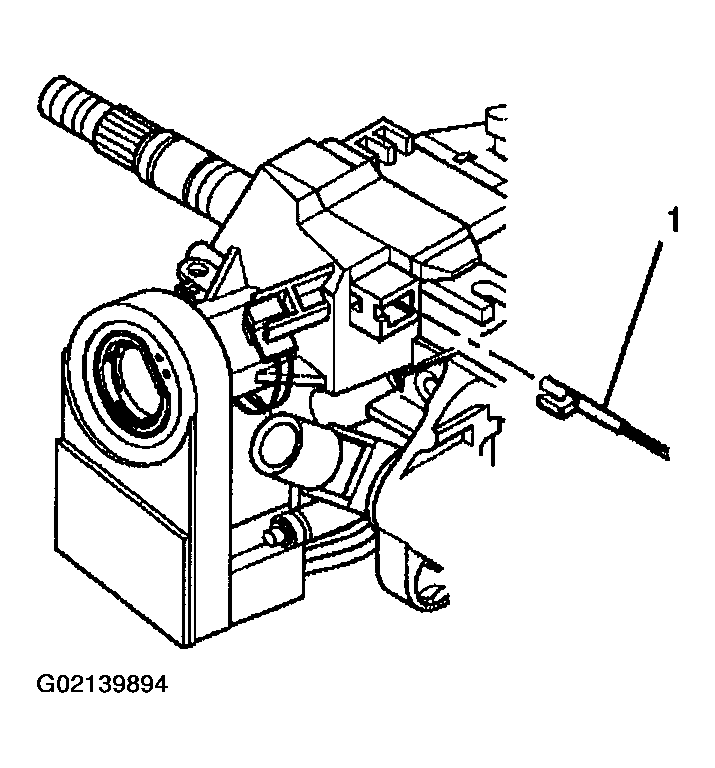

    Fig 2: Installing Park Lock Cable Assembly
    G02139894Courtesy of GENERAL MOTORS CORP.
  6. Adjust the park lock cable assembly.
    1. 6.1. Use the gear shift lever to put the column in the PARK position.
    2. 6.2. Put the ignition switch in the OFF-LOCK position. Remove the key.
    3. 6.3. Unlock the adjuster ring on the park lock cable assembly with J 41396.
    4. 6.4. Pull on the cable until the park lock latch contacts the gear shift lever. Release the cable.
    5. 6.5. Lock the adjuster ring securely in place on the park lock cable assembly with J 41396.
  7. Inspect the park lock cable assembly.
    1. 7.1. Using the ignition lock cylinder, put the lock cylinder in the OFF-LOCK position. The gear shift lever should not be able to shift out of the PARK position.
    2. 7.2. Turn the key to the run position and put the gear shift lever in the NEUTRAL position.
    3. 7.3. With the gear shift lever in the NEUTRAL position the lock cylinder should not be able to go into the OFF-LOCK position.
    4. 7.4. Put the gear shift lever in the PARK position.
    5. 7.5. Remove the ignition lock cylinder.

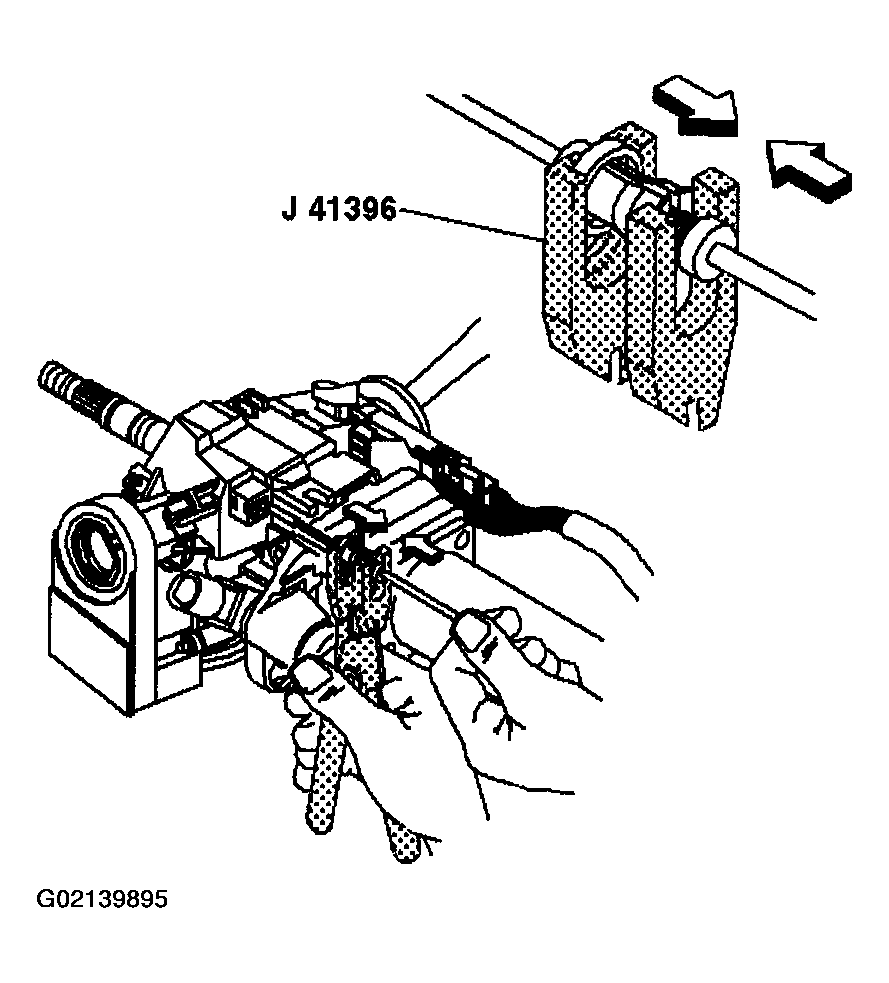

      Fig 3: Inspecting Park Lock Cable Assembly
      G02139895Courtesy of GENERAL MOTORS CORP.

    Important:  Press the ignition lock cylinder case bracket firmly against the steering column tilt head in order for the screws from the turn signal and multifunction switch assembly to align.

  8. Slide the ignition lock cylinder case bracket onto the steering column shaft assembly.
  9. Install the turn signal and multifunction switch assembly only. Refer to MULTIFUNCTION, TURN SIGNAL SWITCH REPLACEMENT  .
  10. Install the turn signal cancel cam and steering shaft upper bearing spring. Refer to TURN SIGNAL CANCEL CAM AND STEERING SHAFT UPPER BEARING SPRING REPLACEMENT  .
  11. Install the ignition switch only. Refer to IGNITION SWITCH REPLACEMENT  .
  12. Install the ignition lock cylinder. Refer to IGNITION LOCK CYLINDER REPLACEMENT  .
  13. Enable the SIR system. Refer to DISABLING SYSTEM in SIR.

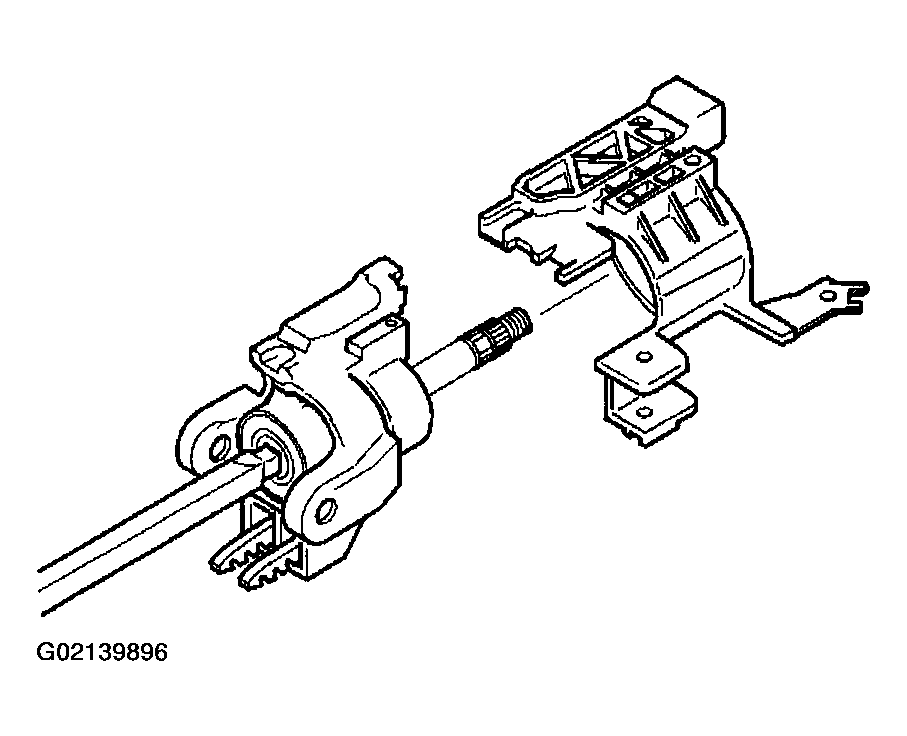

    Fig 4: Installing Ignition Lock Cylinder Case Bracket Onto Steering Column Shaft Assembly
    G02139896Courtesy of GENERAL MOTORS CORP.
