Installation Procedure

  1. Apply Loctite® to the inner portion of the wheel speed sensor reluctor (2).
  2. Insert the wheel speed sensor reluctor (2) onto the hub assembly.
  3. Install the ring (1) of the J 44253  onto the wheel speed sensor reluctor.

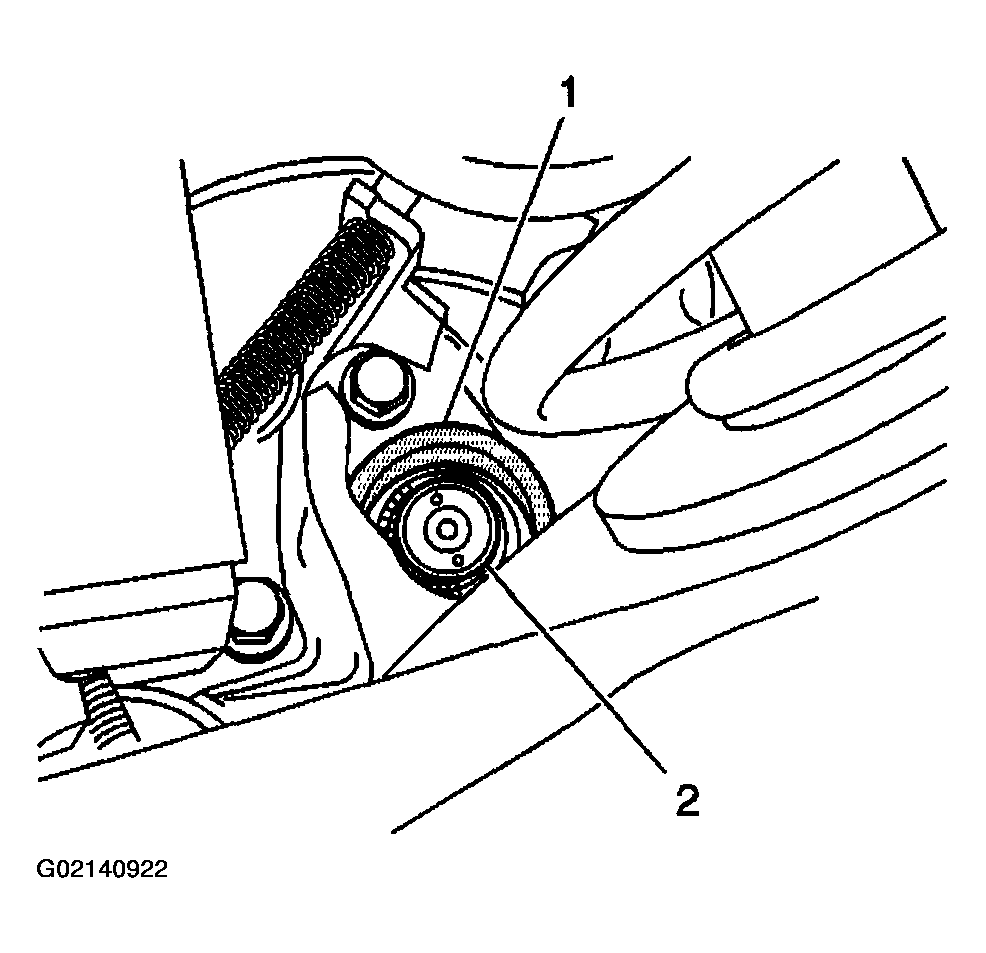

    Fig 1: Installing Ring Of ABS Reluctor Installer Onto Wheel Speed Sensor Reluctor
    G02140922Courtesy of GENERAL MOTORS CORP.
  4. Insert the J 44253  (1).

    Important:  Turn the J 44253  until it just touches the ring of the J 44253  .

  5. Turn the J 44253  (1) to thread the wheel speed sensor reluctor.
  6. Install the wheel speed sensor. Refer to WHEEL BEARING/HUB REPLACEMENT - REAR (FE1, FE3) or WHEEL BEARING/HUB REPLACEMENT - REAR (FE7) .

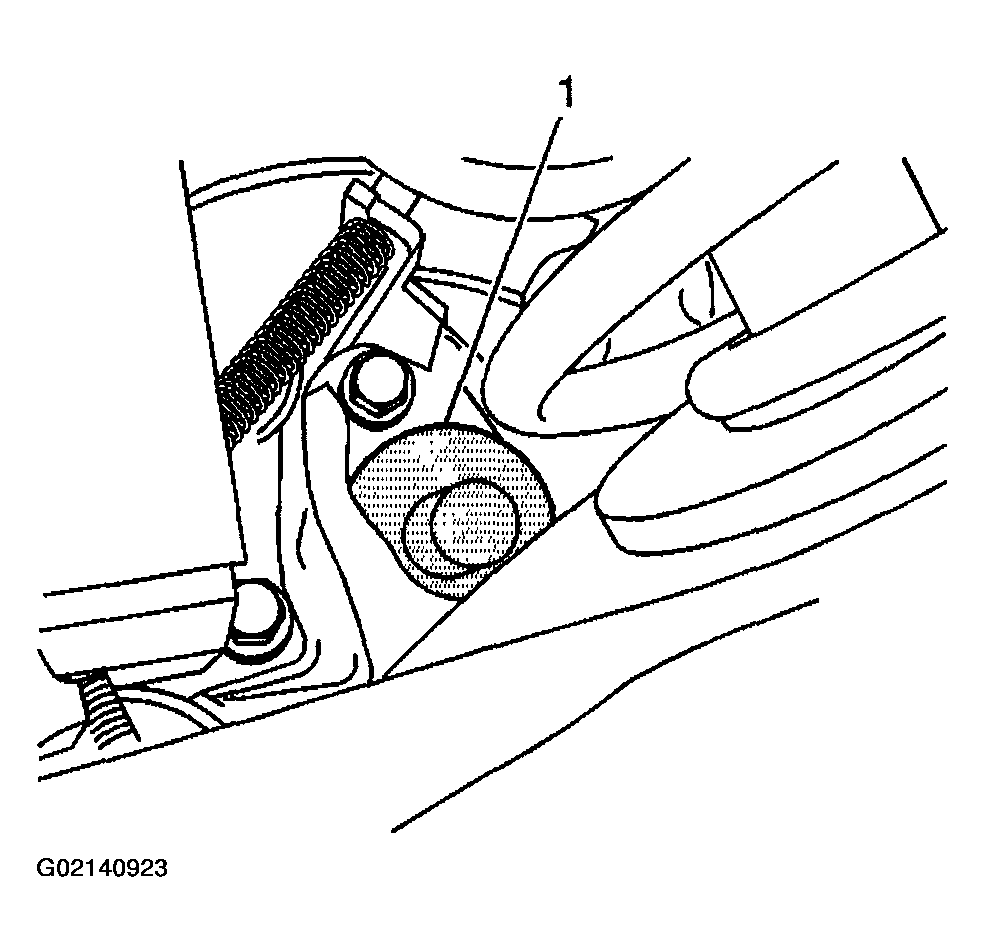

    Fig 2: Turning ABS Reluctor Installer To Thread Wheel Speed Sensor Reluctor
    G02140923Courtesy of GENERAL MOTORS CORP.
