Installation Procedure

  1. Install the ignition lock cylinder to the ignition lock cylinder case assembly by doing the following procedure:
    1. 1.1. Align the positioning slot and the locking tab slot on the ignition lock cylinder case assembly to the positioning tab and the locking tab on the ignition lock cylinder.
    2. 1.2. Push the ignition lock cylinder into the ignition lock cylinder case assembly until the locking tabs lock together.

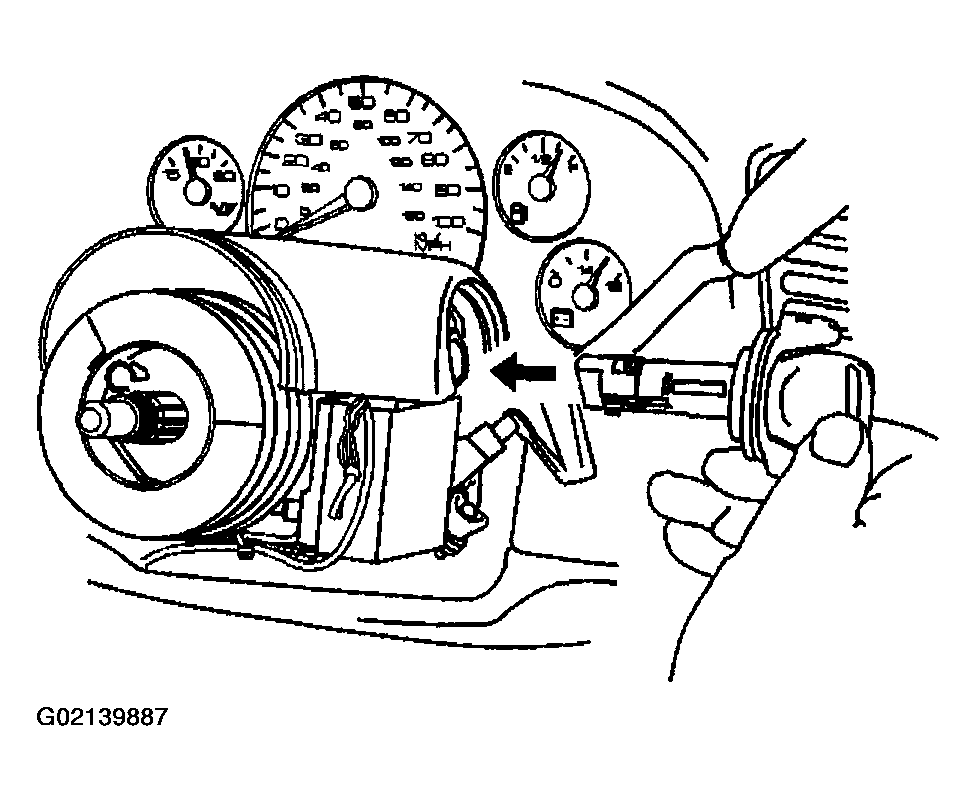

      Fig 1: Installing Ignition Lock Cylinder
      G02139887Courtesy of GENERAL MOTORS CORP.
  2. Install the upper trim cover (1) to the steering column.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the retaining screw (2) to the upper steering column trim cover.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

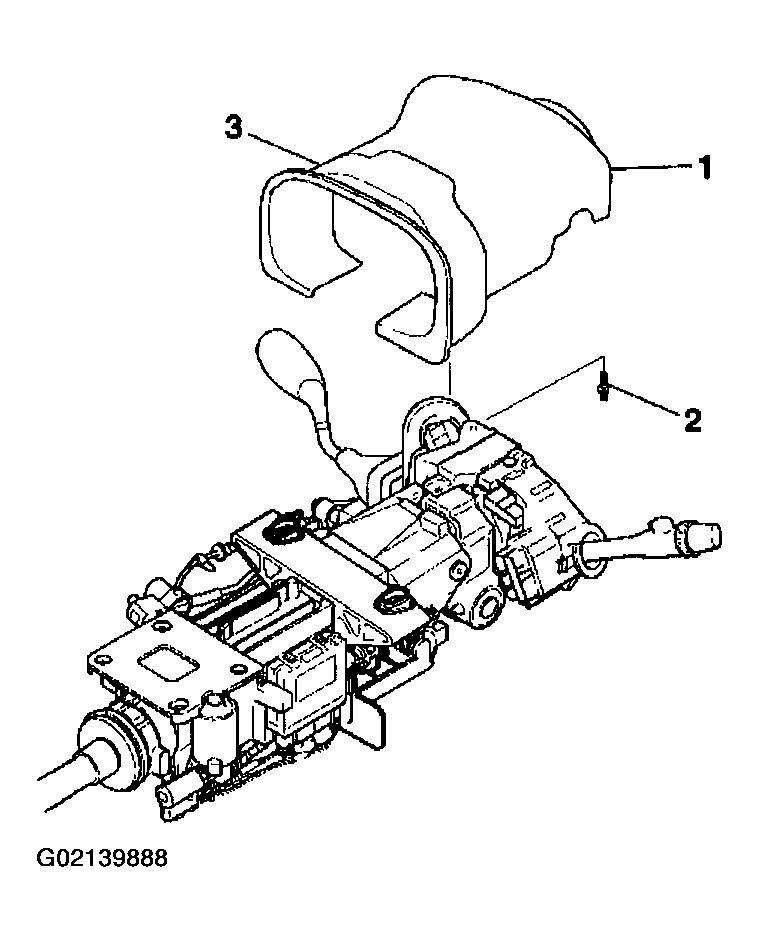

    Fig 2: Installing Upper Trim Cover To Steering Column
    G02139888Courtesy of GENERAL MOTORS CORP.
  4. Connect the lower trim cover (2) to the closeout shroud.
  5. Install the retaining screws (4) to the lower steering column trim cover.

    Tighten

    Tighten the screws to 3 N.m (30 lb in).

  6. Install the steering wheel. Refer to STEERING WHEEL REPLACEMENT  .
  7. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT (WITHOUT UV2) or KNEE BOLSTER REPLACEMENT - LEFT (UV2) in Instrument Panel, Gages, and Console.
  8. Connect the ignition battery. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  9. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

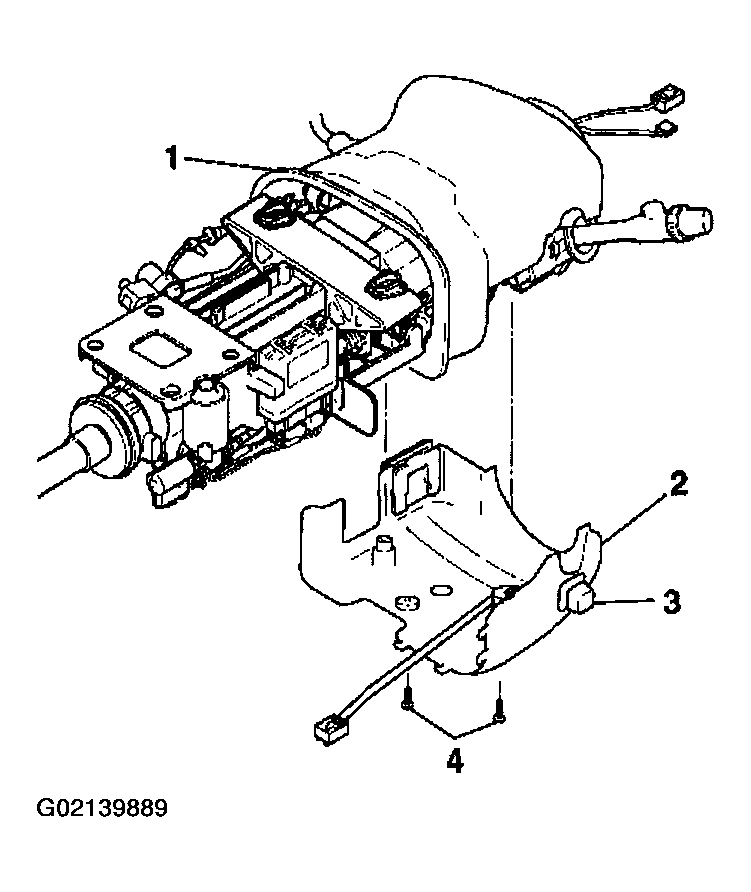

    Fig 3: Installing Retaining Screws To Lower Steering Column Trim Cover
    G02139889Courtesy of GENERAL MOTORS CORP.
