Lock System Does Not Lock

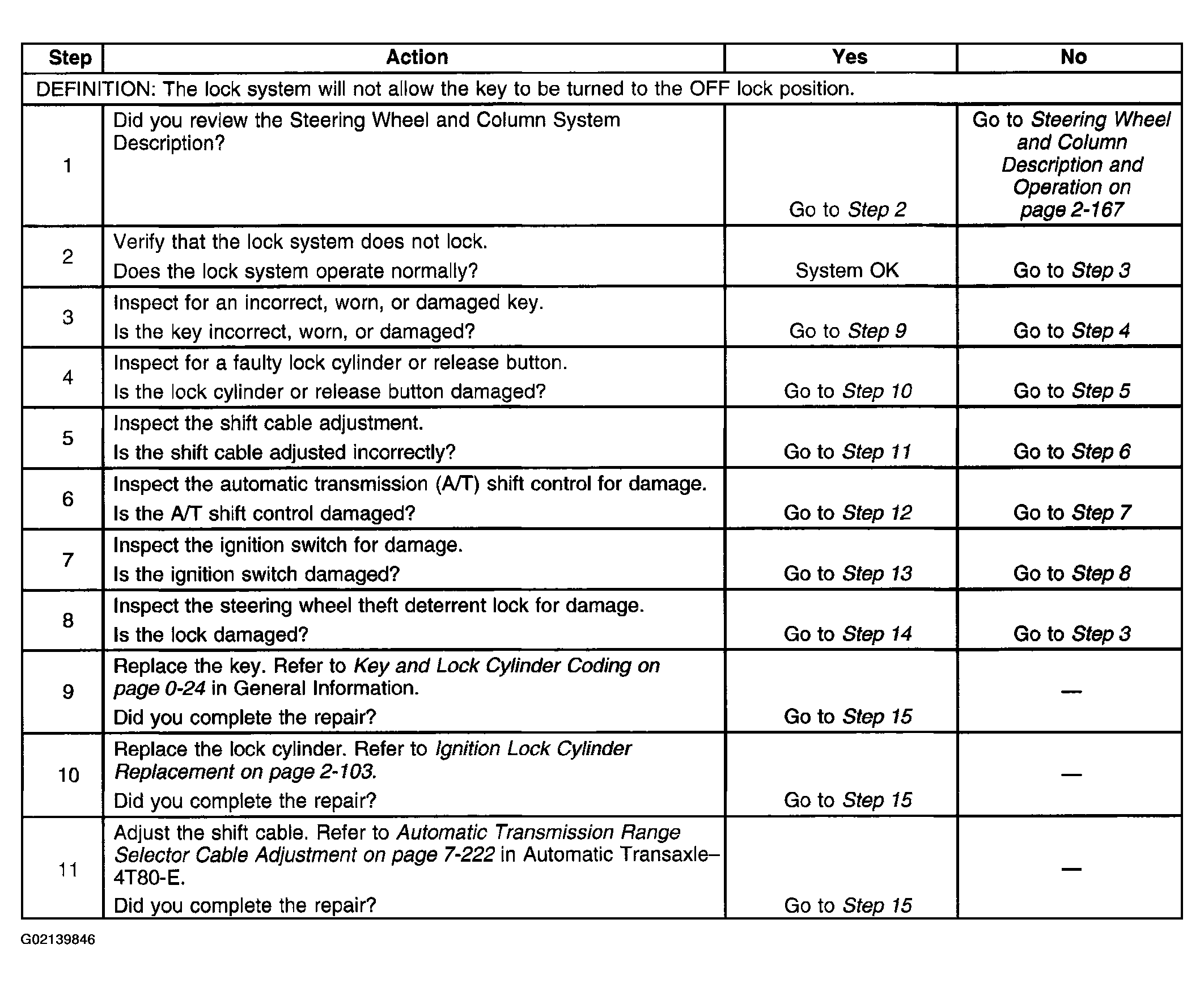

Fig 1: Diagnostic System Check - Lock System Does Not Lock (Steps 1 - 11)
G02139846Courtesy of GENERAL MOTORS CORP.

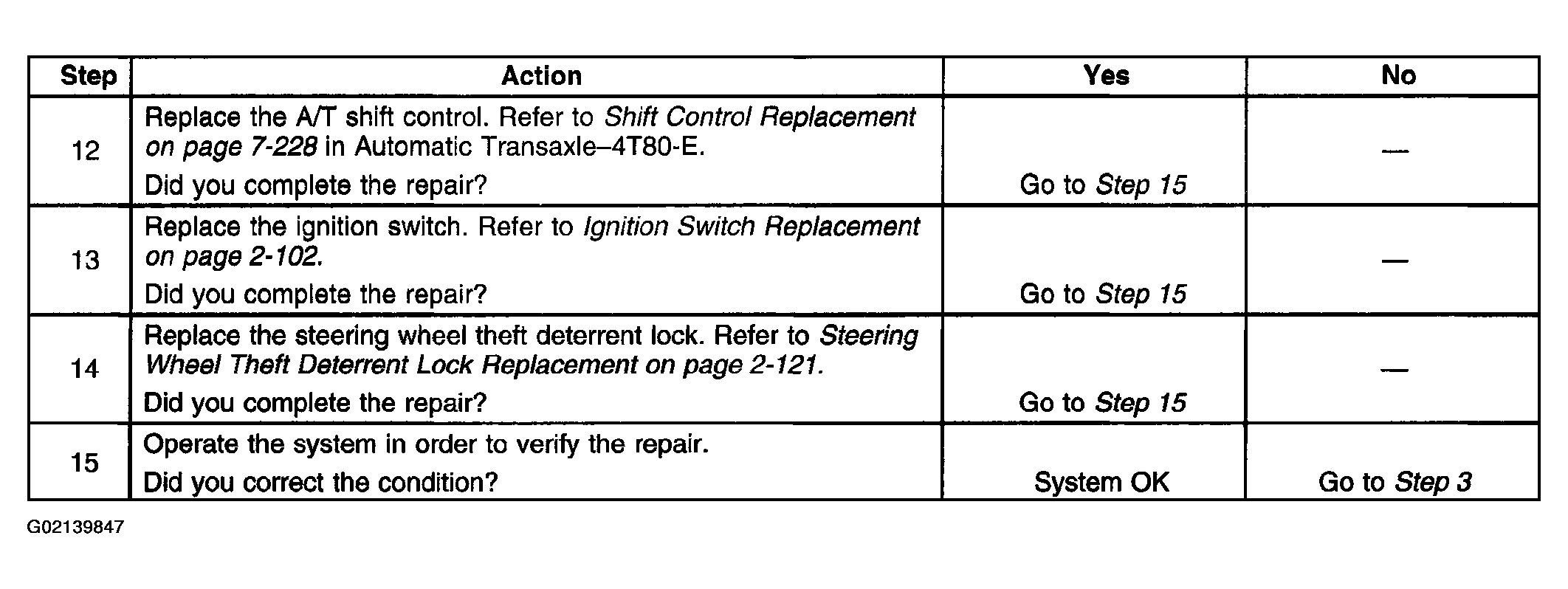

Fig 2: Diagnostic System Check - Lock System Does Not Lock (Steps 12 - 15)
G02139847Courtesy of GENERAL MOTORS CORP.
