Steering Wheel and Column Component Views

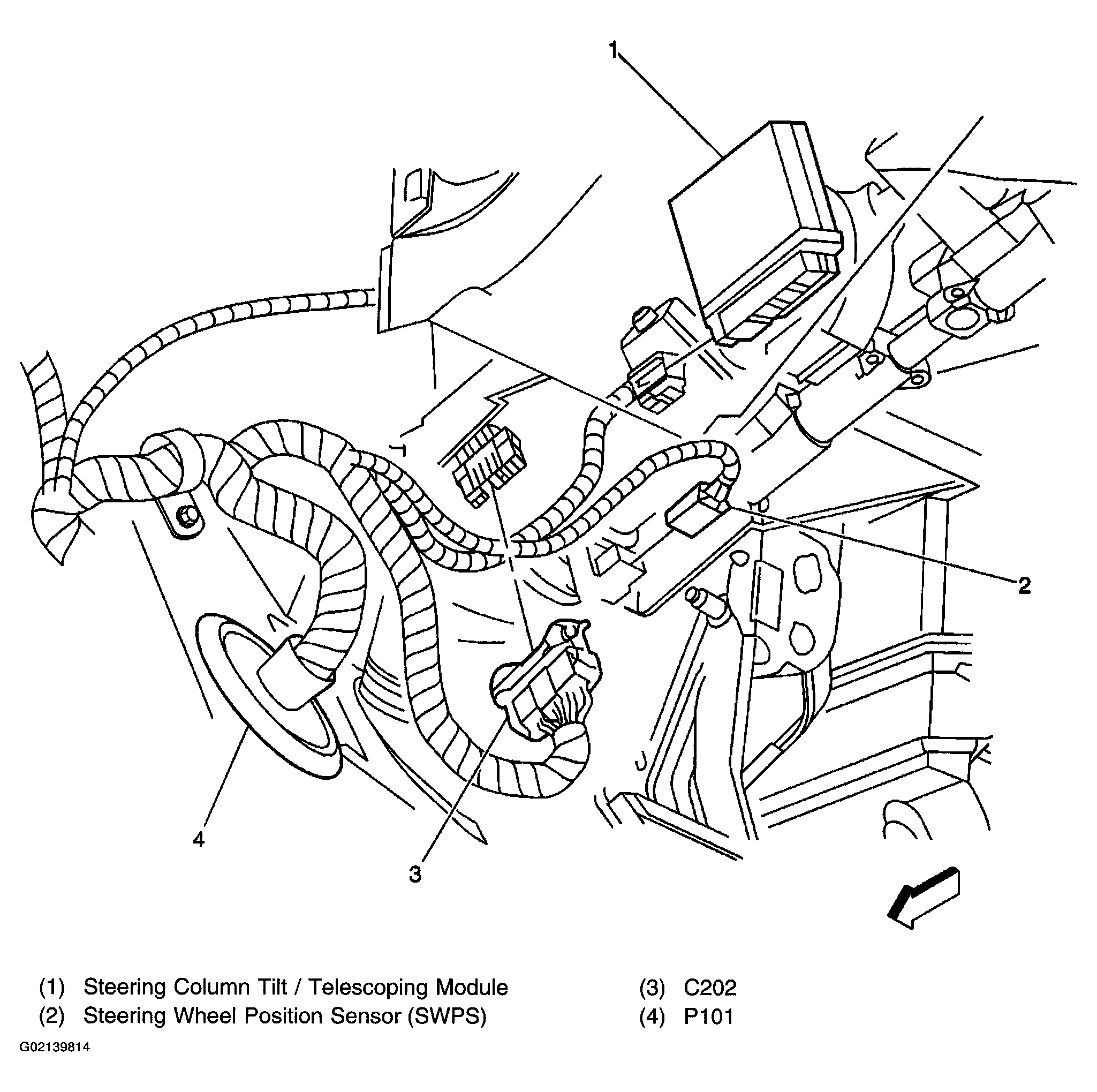

Fig 1: Identifying Passenger Compartment, at the Base of the Steering Column

Courtesy of GENERAL MOTORS CORP.

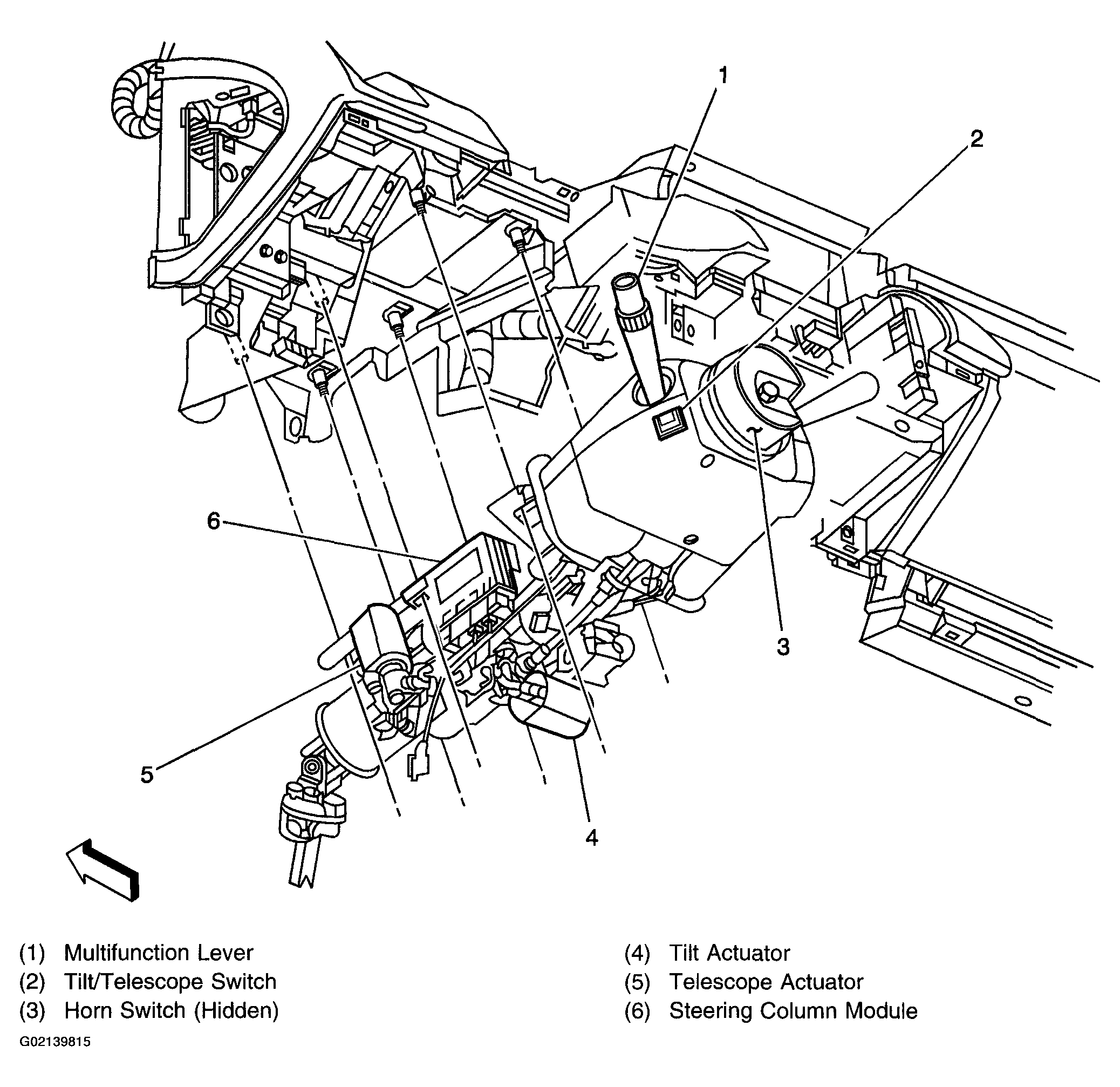

Fig 2: Identifying Under the Left Side of the Instrument Panel

Courtesy of GENERAL MOTORS CORP.

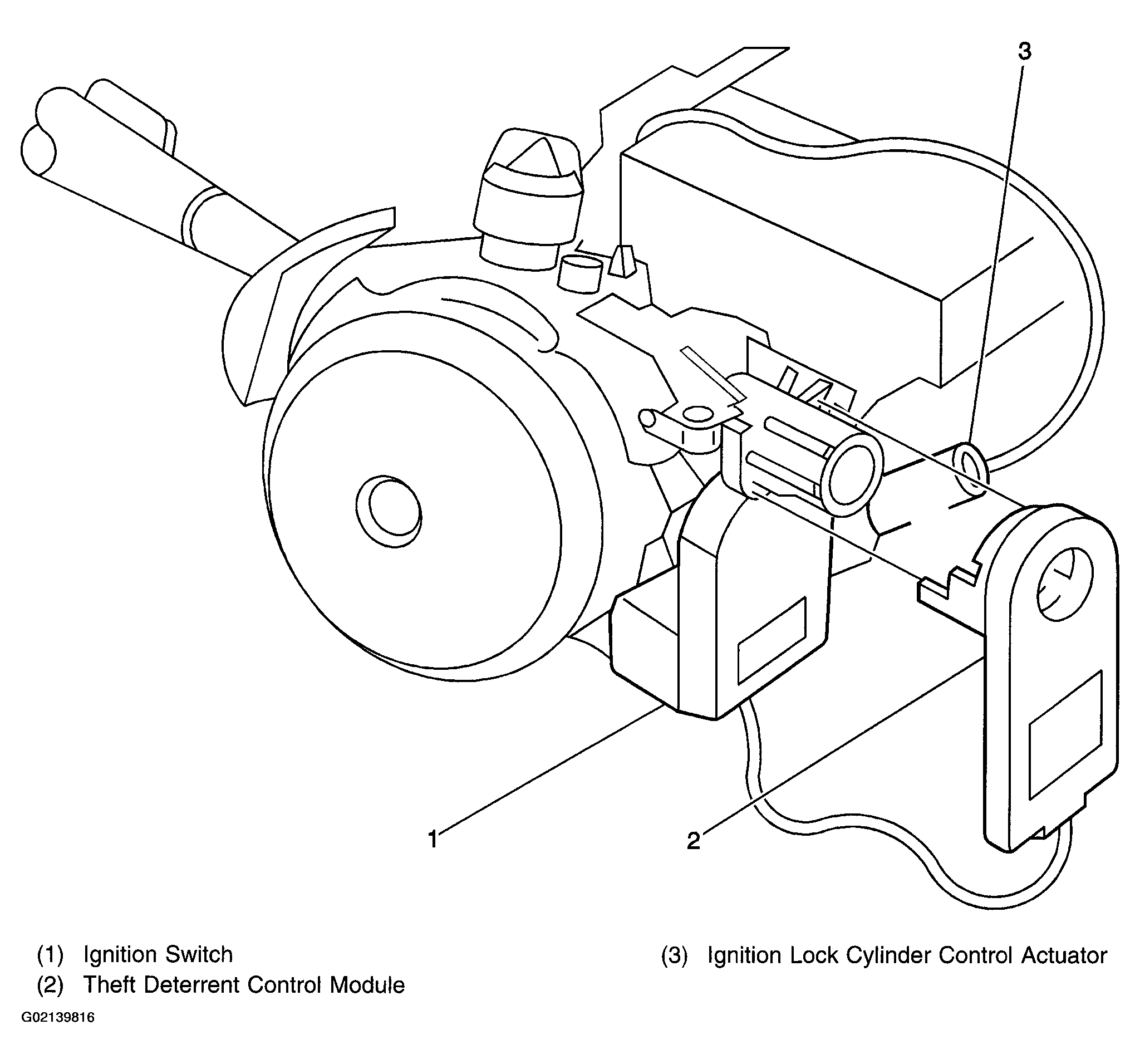

Fig 3: Identifying Left Front of the Passenger Compartment, in the Steering Column

Courtesy of GENERAL MOTORS CORP.

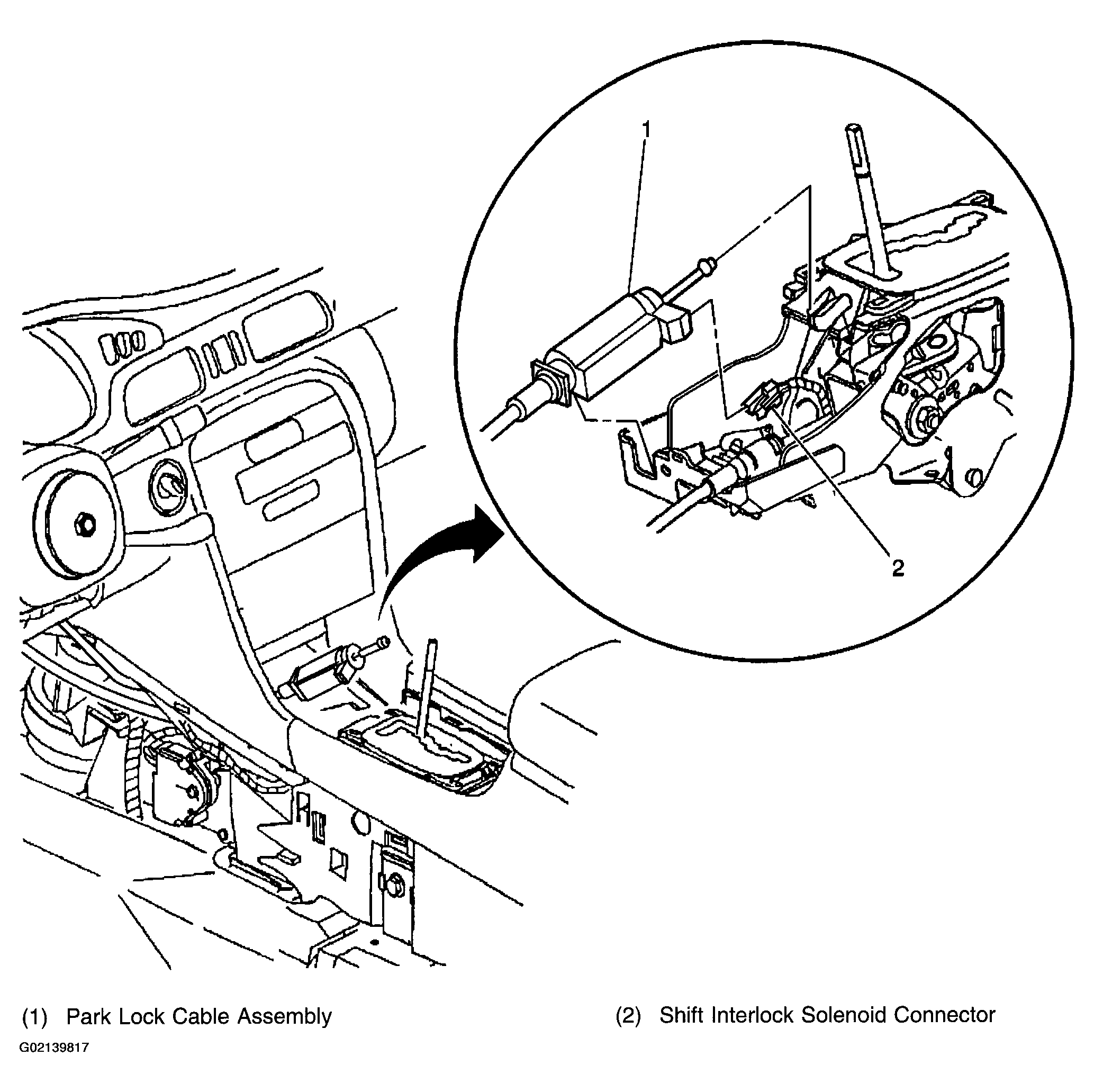

Fig 4: Identifying Beneath the Center Console

Courtesy of GENERAL MOTORS CORP.
