Power Steering Pump Disassembled View

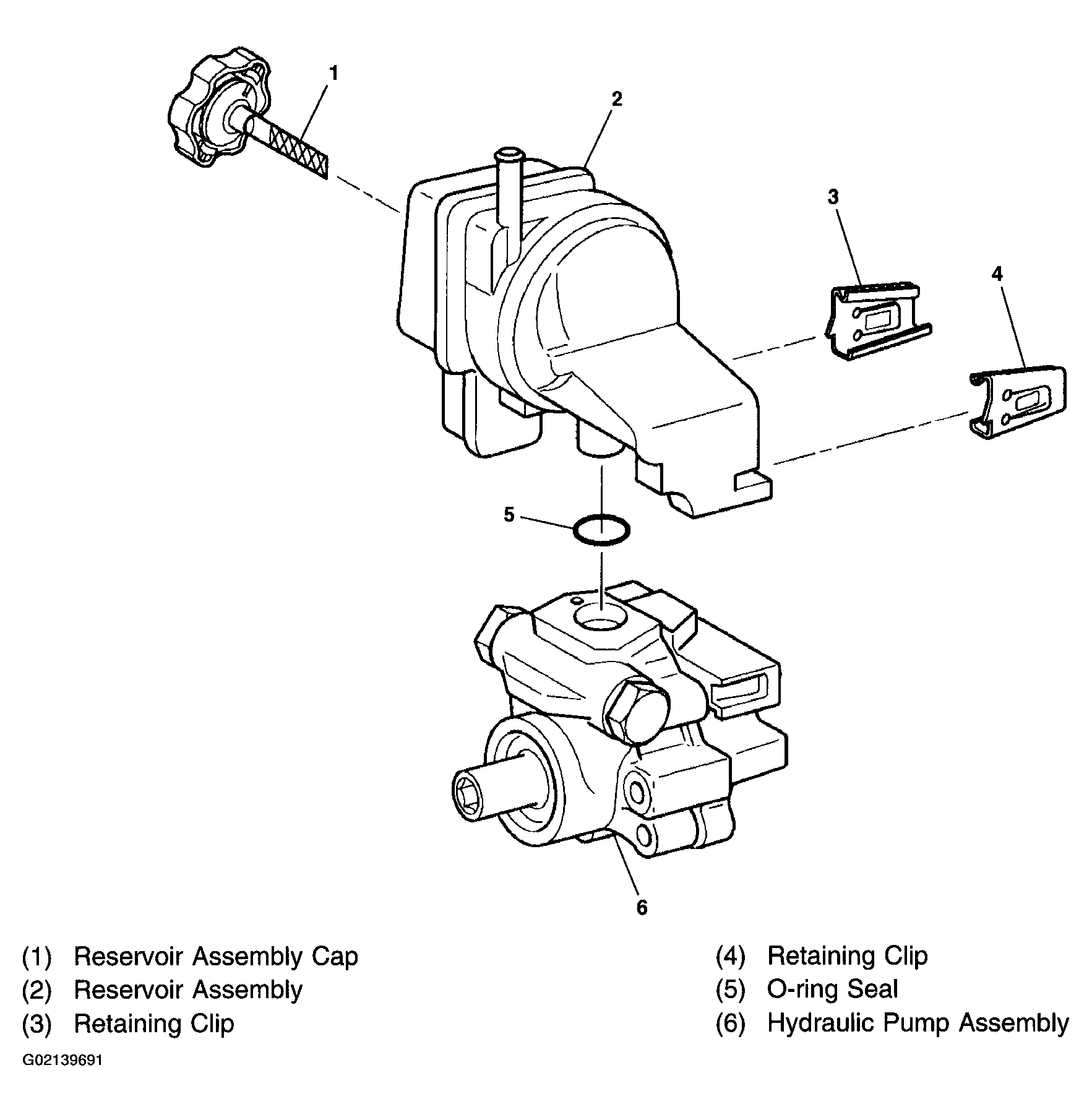

Fig 1: Exploded View Of Power Steering Pump Components

G02139691

Courtesy of GENERAL MOTORS CORP.
