Installation Procedure

  1. Install the GPS antenna (2) to the rear shelf carrier panel.
  2. Install the pushpins (1) through the GPS antenna to the rear shelf carrier panel.

    Push the center of the pin down in order to lock the pins (1) in place.

  3. Install the wiring harness to the retainers on the rear shelf carrier panel in order to retain the wiring harness to the rear shelf carrier panel.
  4. Connect the wiring connections to the rear speaker and the modules on the rear shelf carrier panel.
  5. Install the rear shelf carrier panel. Refer to SHELF CARRIER REPLACEMENT - REAR
  6. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF (WITHOUT SUNSHADE) or TRIM PANEL REPLACEMENT - REAR WINDOW SHELF (WITH SUNSHADE)

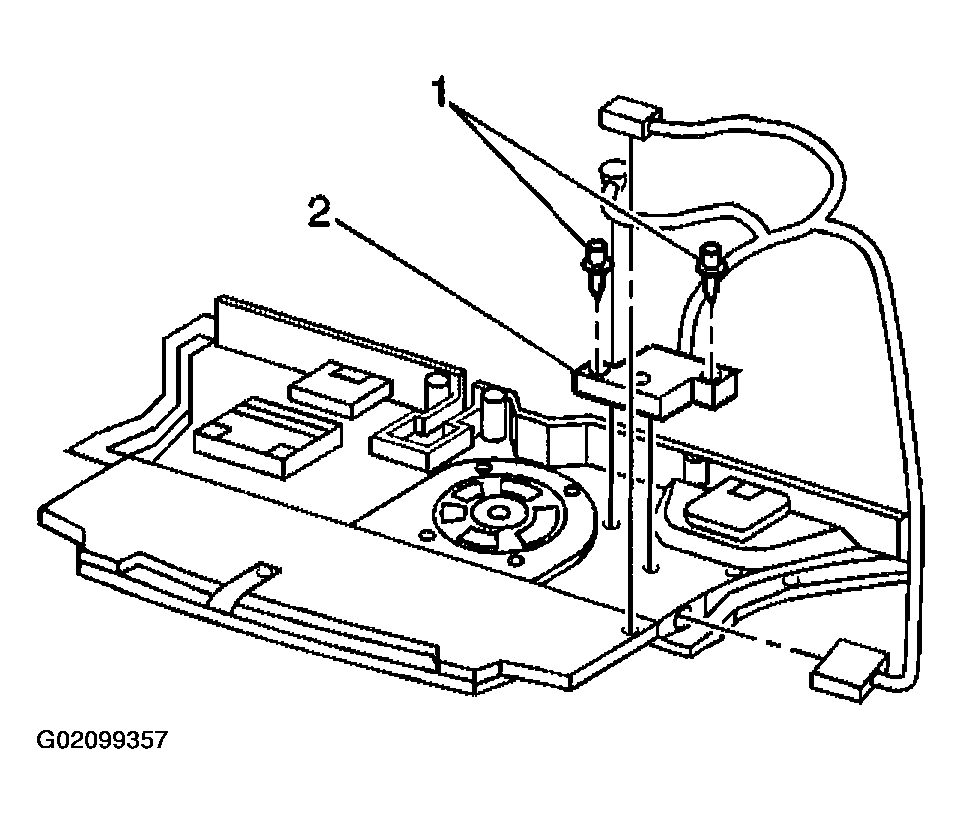

    Fig 1: Installing Screws Securing GPS Antenna To Electrical Carrier
    G02099357Courtesy of GENERAL MOTORS CORP.
