Automatic Transmission Inline 20-Way Connector End View

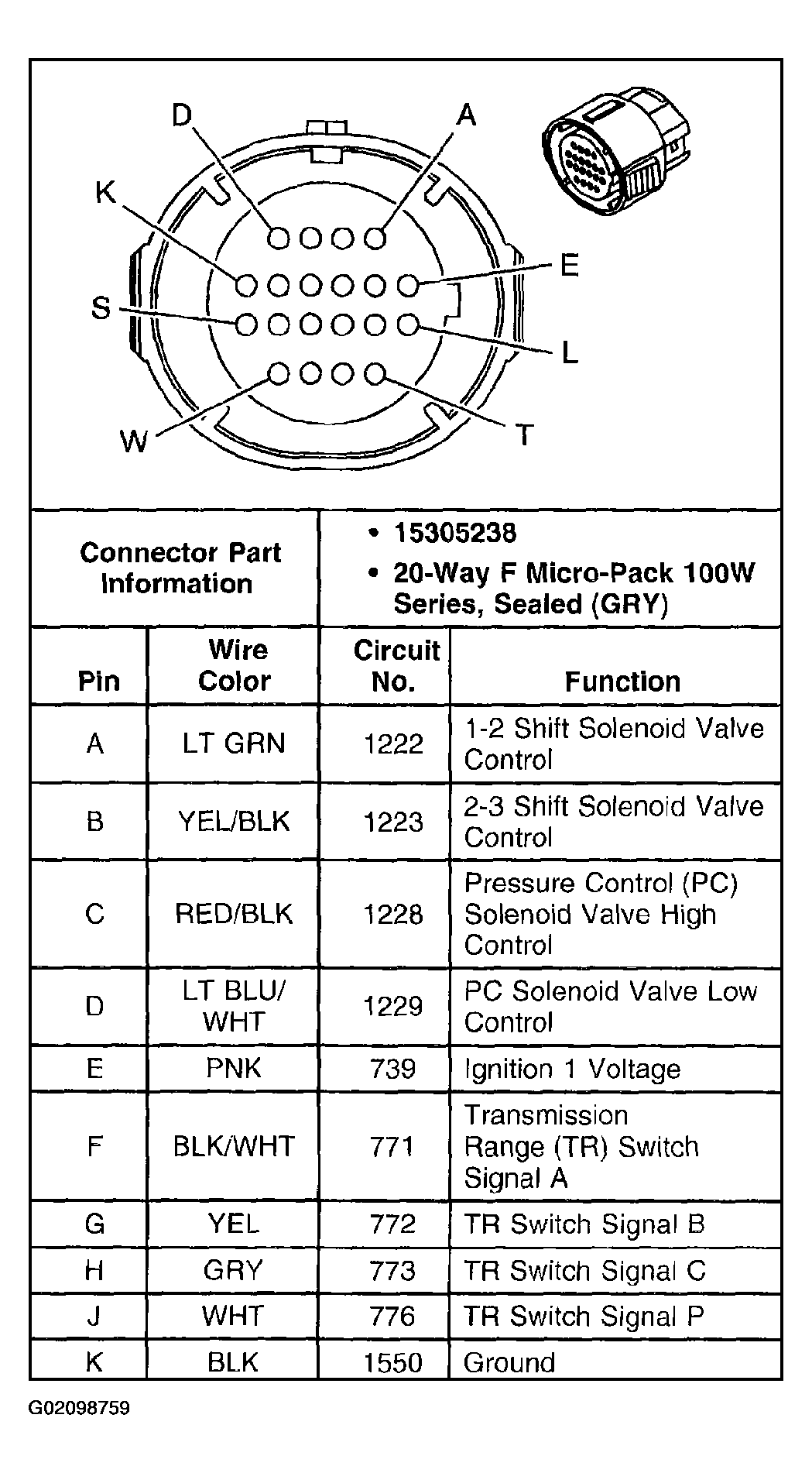

Fig 1: Identifying Automatic Transmission Inline 20-Way Connector End View Engine Side (1 Of 2)
G02098759Courtesy of GENERAL MOTORS CORP.

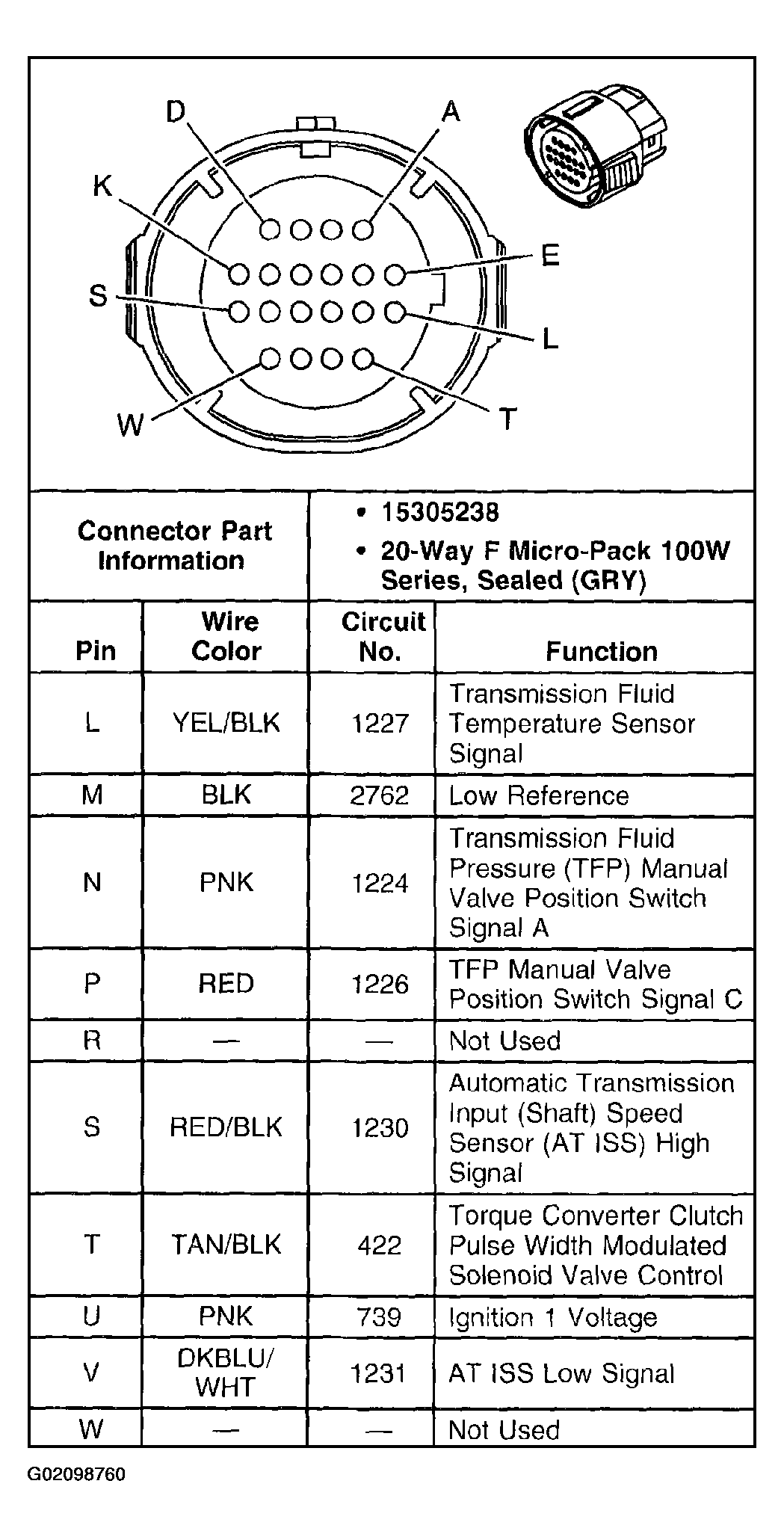

Fig 2: Identifying Automatic Transmission Inline 20-Way Connector End View Engine Side (2 Of 2)
G02098760Courtesy of GENERAL MOTORS CORP.

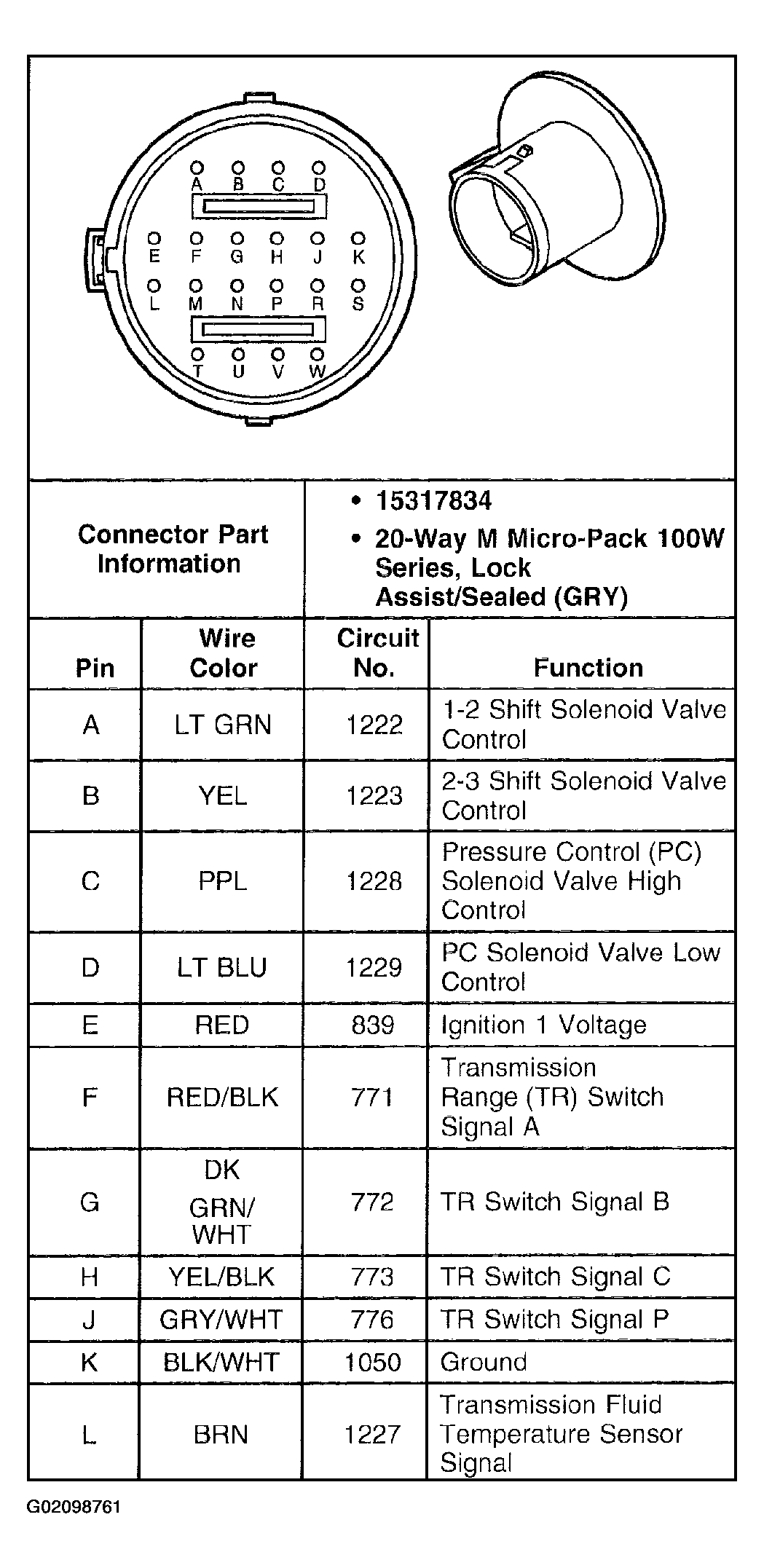

Fig 3: Identifying Automatic Transmission Inline 20-Way Connector End View Transmission Side (1 Of 2)
G02098761Courtesy of GENERAL MOTORS CORP.

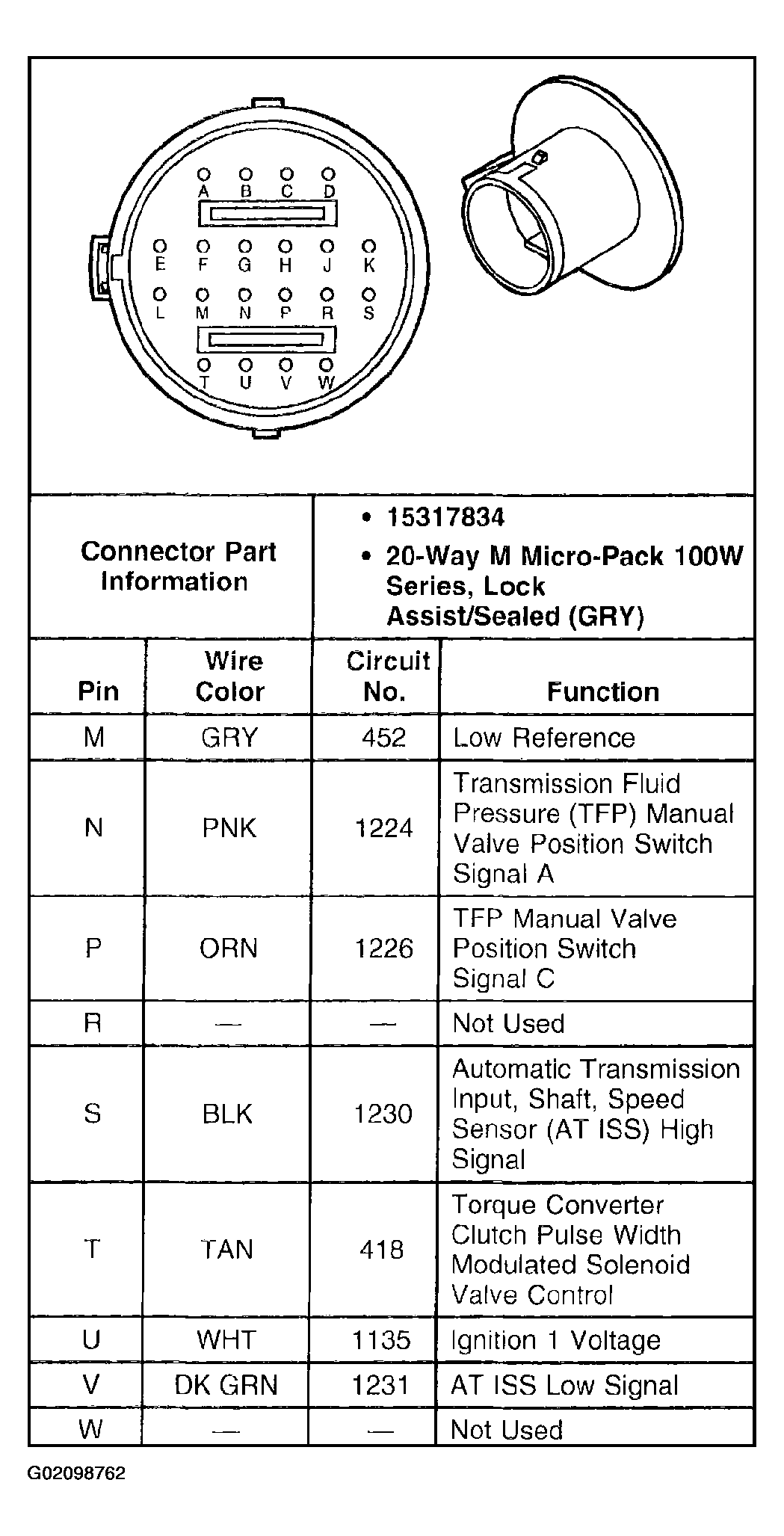

Fig 4: Identifying Automatic Transmission Inline 20-Way Connector End View Transmission Side (2 Of 2)
G02098762Courtesy of GENERAL MOTORS CORP.
