Transmission Internal Mode Switch Logic

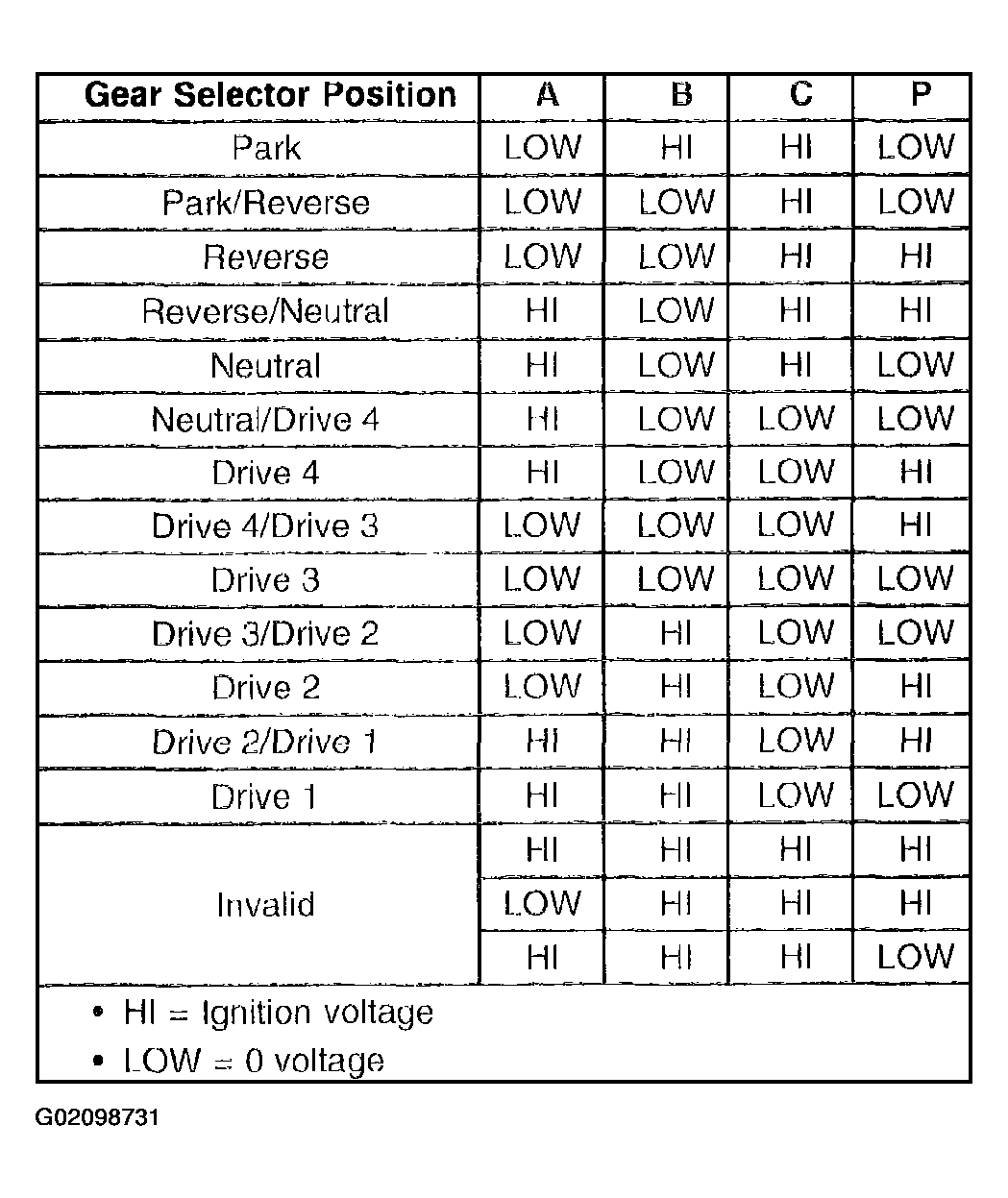

Fig 1: Transmission Internal Mode Switch Logic

G02098731

Courtesy of GENERAL MOTORS CORP.
