Home >> Cadillac >> 2003 >> DeVille Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - 4T80-E >> Specifications >> Range Reference

Range Reference

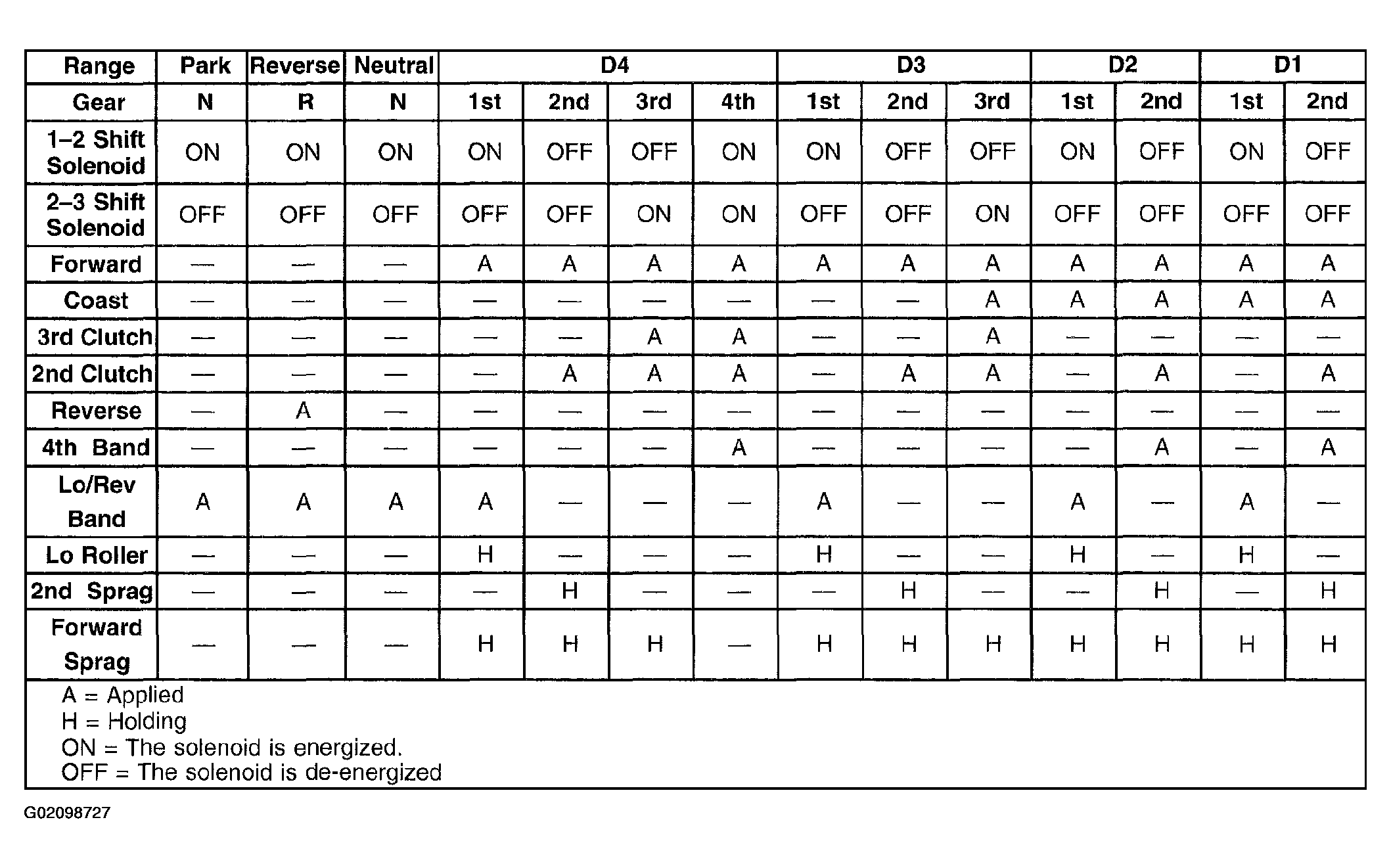

Fig 1: Automatic Transaxle Range Reference

G02098727

Courtesy of GENERAL MOTORS CORP.
