Removal Procedure

  1. Remove the console trim plate. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (DTS)

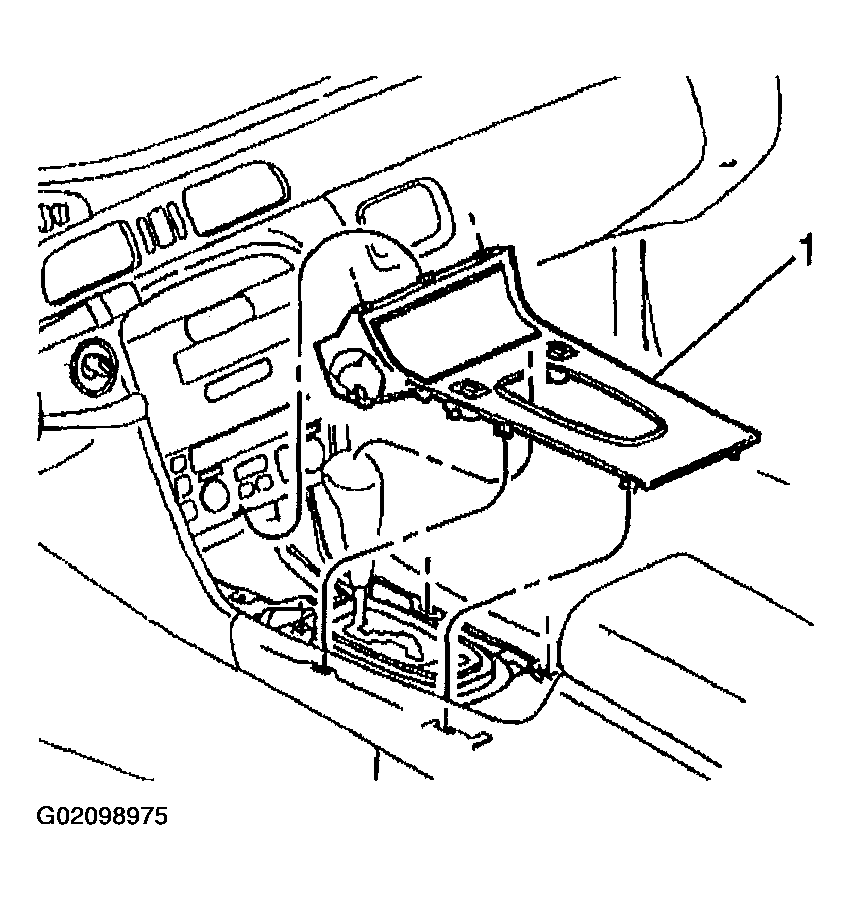

    Fig 1: Removing Console Trim Plate
    G02098975Courtesy of GENERAL MOTORS CORP.
  2. Unsnap the shift cable terminal from the shifter pin.

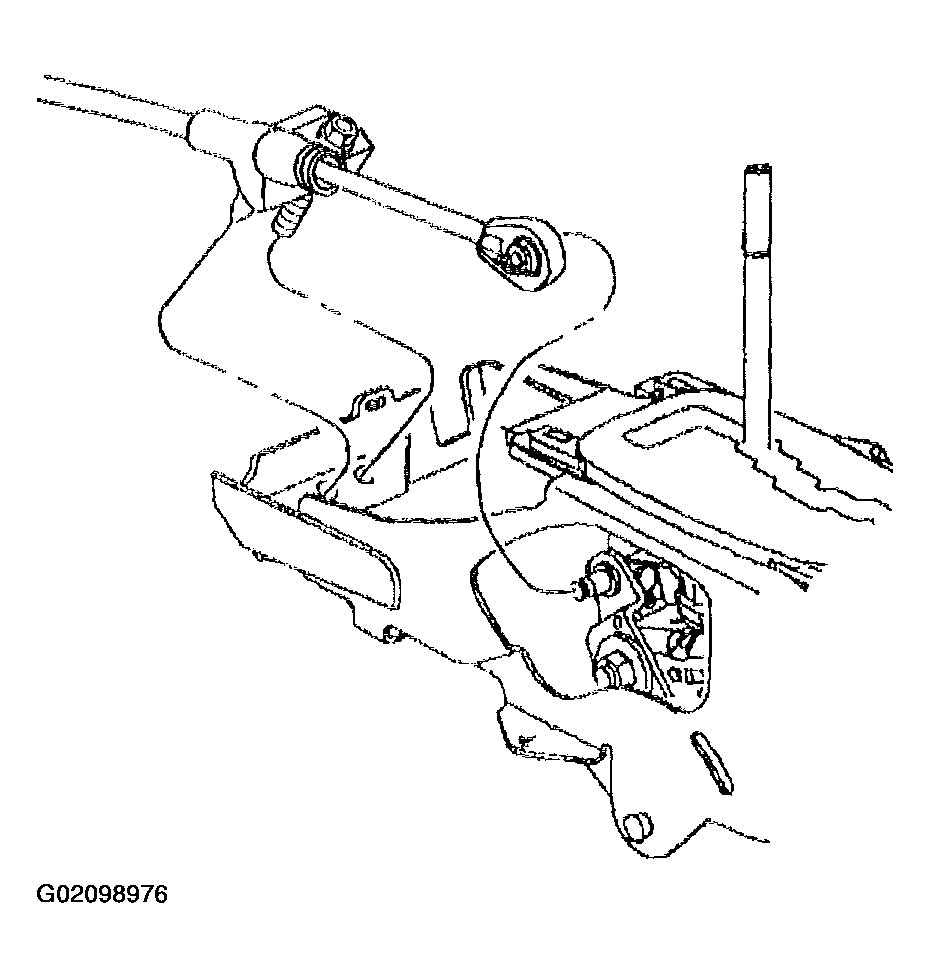

    Fig 2: Unsnapping Shift Cable Terminal From Shifter Pin
    G02098976Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the automatic transmission shift lock actuator solenoid wire harness connector.
  4. Remove the shifter fasteners.
  5. Remove the shifter assembly.

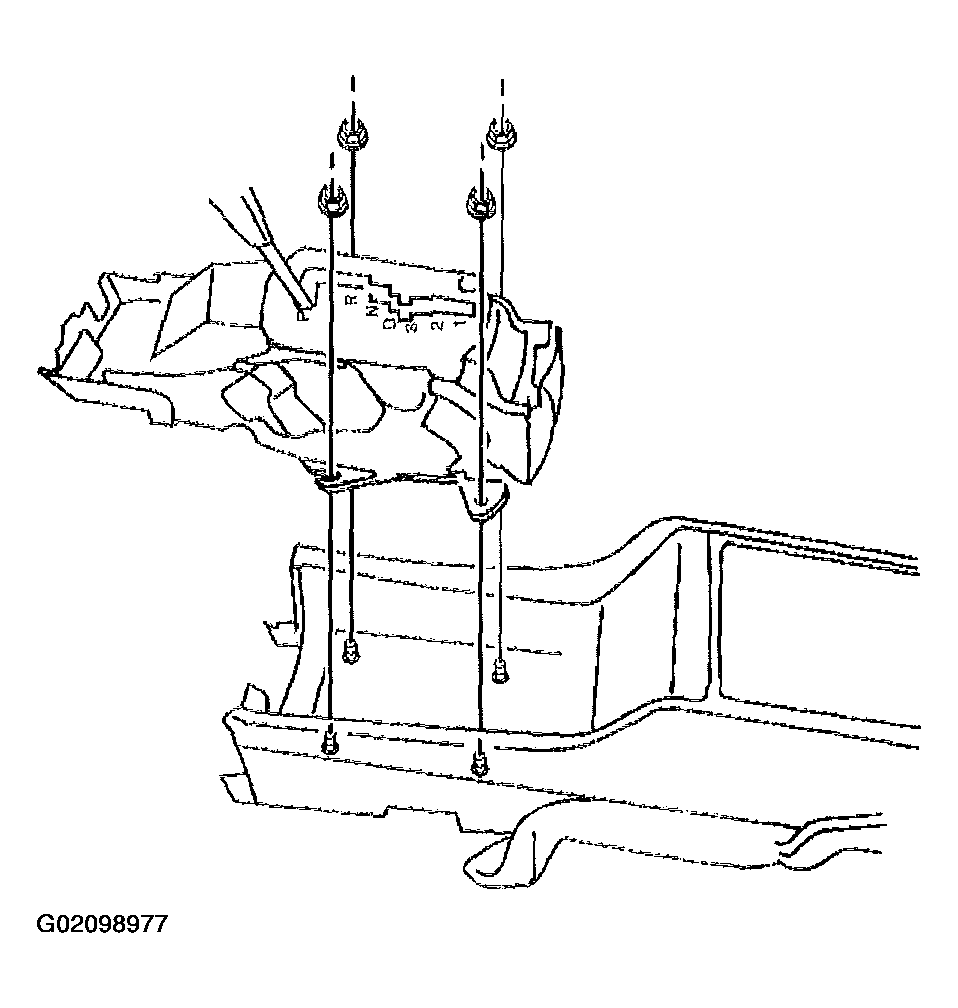

    Fig 3: Removing Shifter Assembly & Fasteners
    G02098977Courtesy of GENERAL MOTORS CORP.
