Installation Procedure

  1. Install the mount (2).
  2. Install the mount attaching bolt (1) and nut (4) to the frame.
    NOTE: Refer to FASTENER NOTICE
  3. Install the 2 nuts (3) securing the mount to the frame.

    Tighten

    Tighten the nuts to 70 N.m (52 lb ft).

  4. Raise the engine and transmission assembly into position.

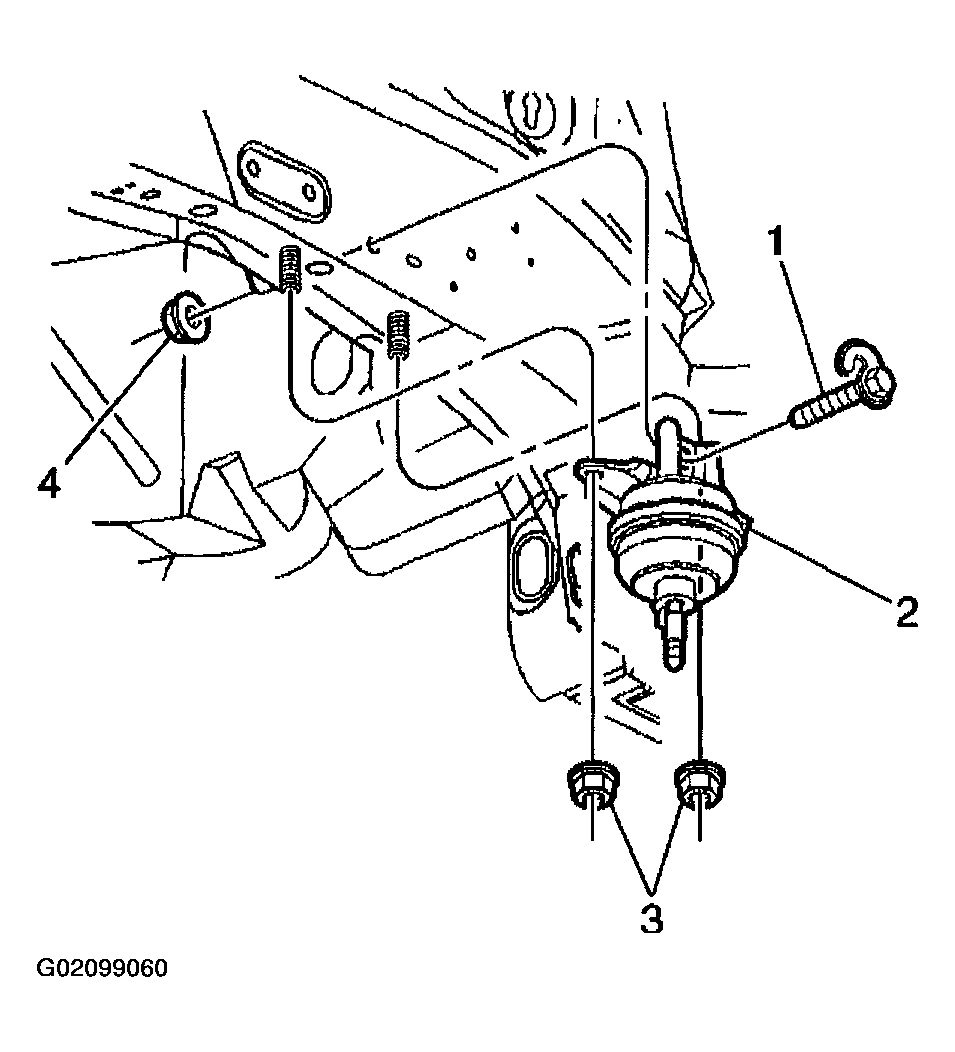

    Fig 1: Installing Mount, Nuts & Bolt
    G02099060Courtesy of GENERAL MOTORS CORP.
  5. Install the nut (1) to the mount and mount bracket.

    Tighten

    Tighten the mount nut to 75 N.m (55 lb ft).

  6. Remove the engine assembly support jack.
  7. Lower the vehicle.

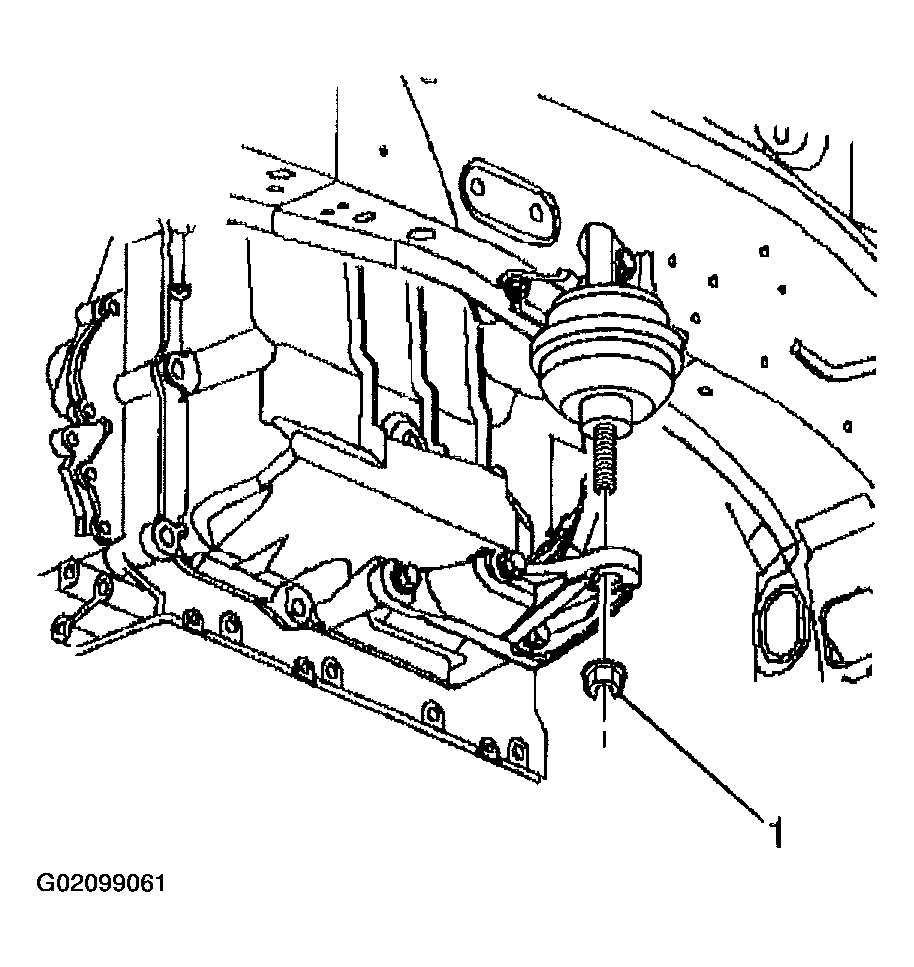

    Fig 2: Installing Nut To Mount & Mount Bracket
    G02099061Courtesy of GENERAL MOTORS CORP.
