Component Location

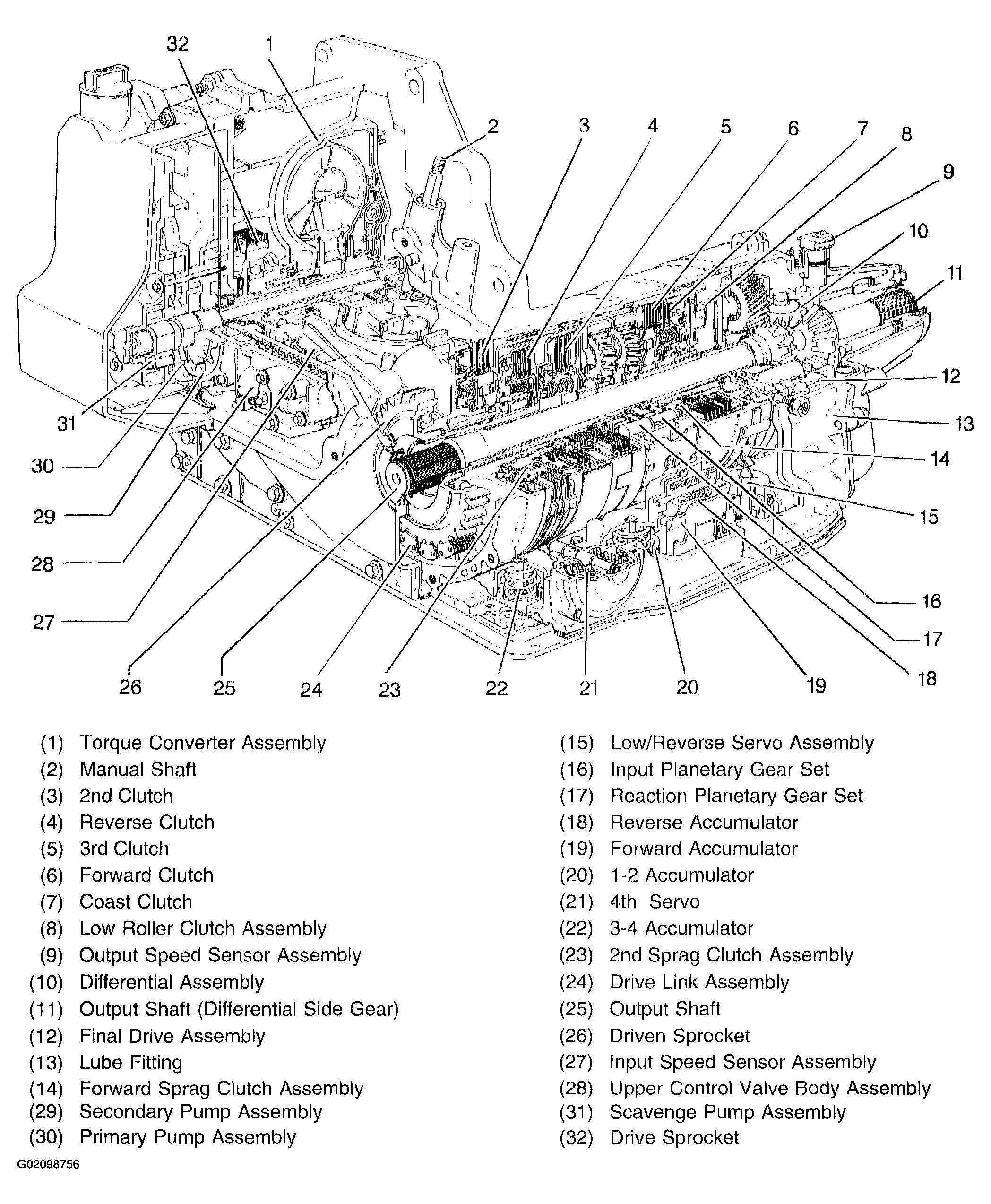

Fig 1: Locating Transaxle Major Components
G02098756Courtesy of GENERAL MOTORS CORP.

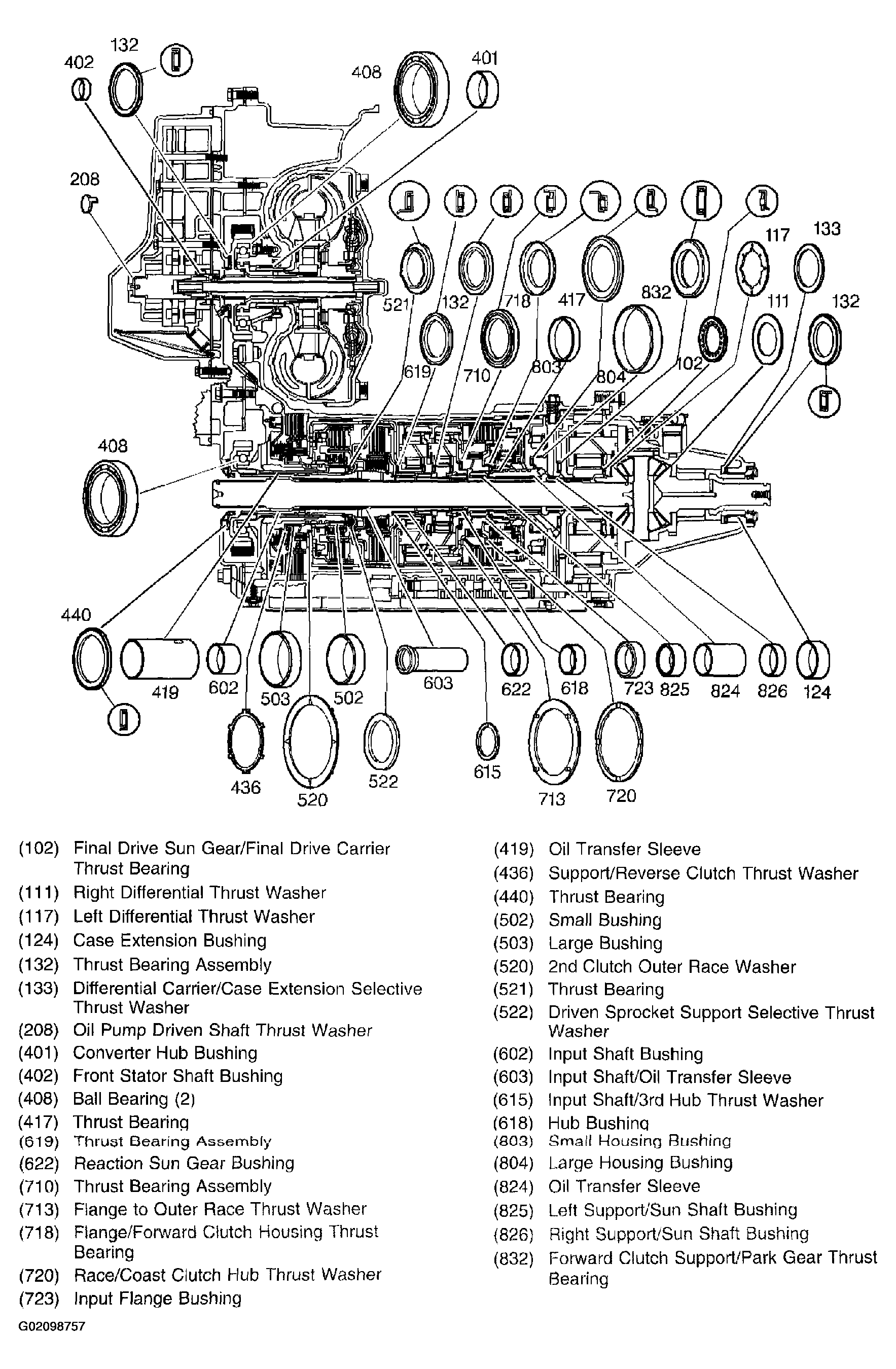

Fig 2: Locating Bushings, Bearings And Washers
G02098757Courtesy of GENERAL MOTORS CORP.

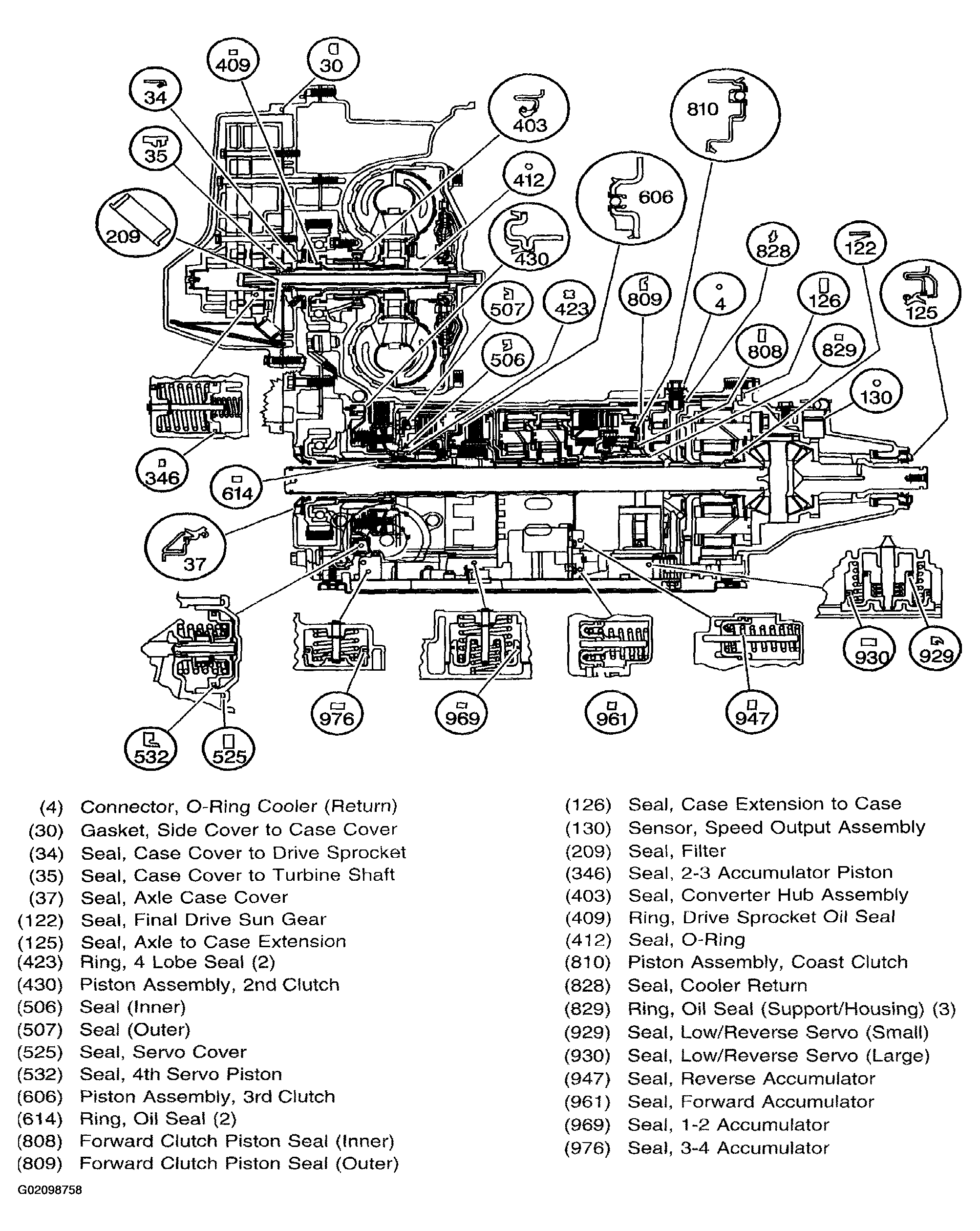

Fig 3: Locating Seals
G02098758Courtesy of GENERAL MOTORS CORP.
