Automatic Transmission Electronic Component Views

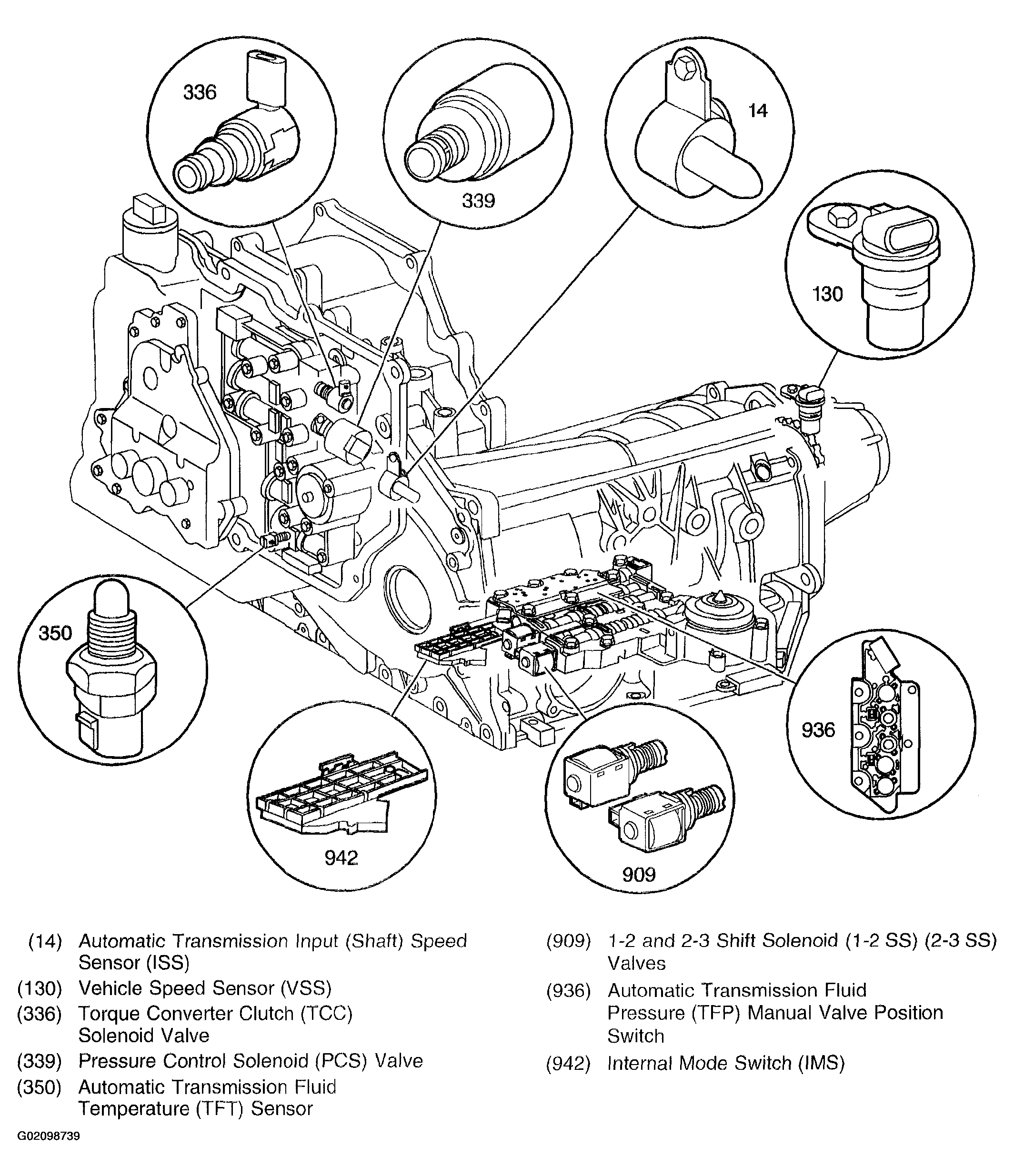

Fig 1: Automatic Transmission Electronic Component Views

G02098739

Courtesy of GENERAL MOTORS CORP.
