Strut, Strut Component and/or Spring Replacement: Notes

Tools Required

• J 3289-20  Holding Fixture
• J 34013-B  Strut Spring Compressor
• J 34013-20  Damper Rod Clamp
• J 34013-38  Strut Alignment Rod
• J 34013-971  Strut Compressor Lower Adapter

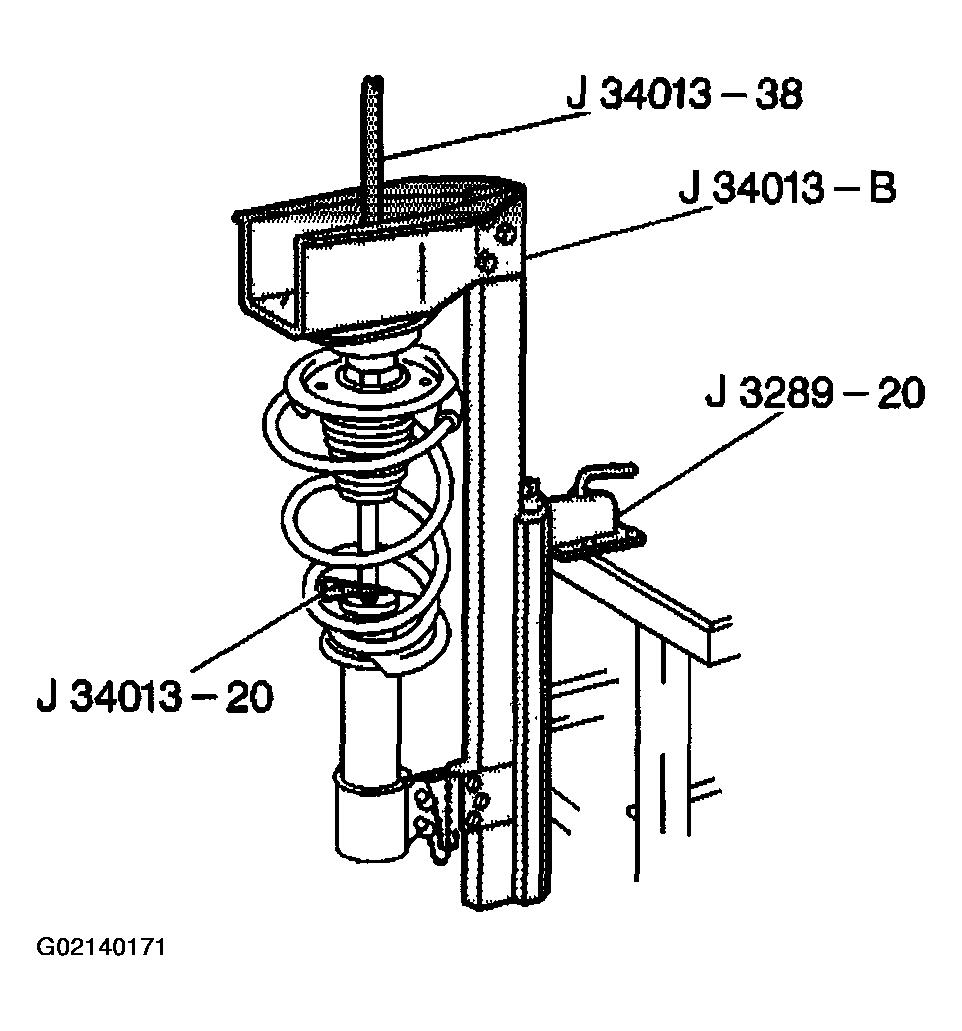

  Fig 1: Installing Strut Assembly In Strut Compressor

  Courtesy of GENERAL MOTORS CORP.
