Installation Procedure

  1. Connect the electrical connectors (1) to the steering wheel control switch (2).
  2. Align the steering control switch (2) engagement tabs to the steering wheel.

    Push to secure the control switch to the steering wheel.

  3. Install the steering wheel inflatable restraint module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) in SIR.
  4. Enable the SIR. Refer to DISABLING SYSTEM in SIR.

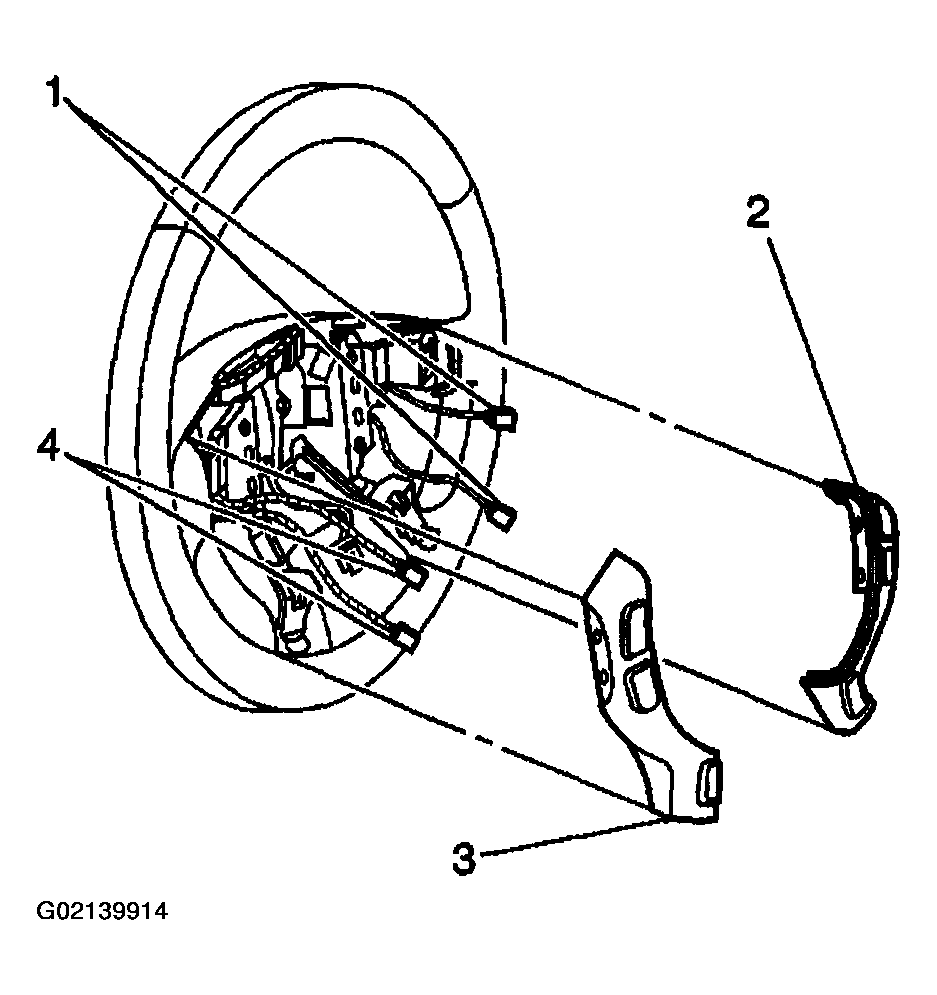

    Fig 1: Connecting Electrical Connectors To Steering Wheel Control Switch
    G02139914Courtesy of GENERAL MOTORS CORP.
