Home >> Cadillac >> 2003 >> DeVille Base >> Repair and Diagnosis >> Steering >> Electronic Steering >> Variable Effort Steering System >> Component Locator >> Steering Controls Connector End Views

Steering Controls Connector End Views

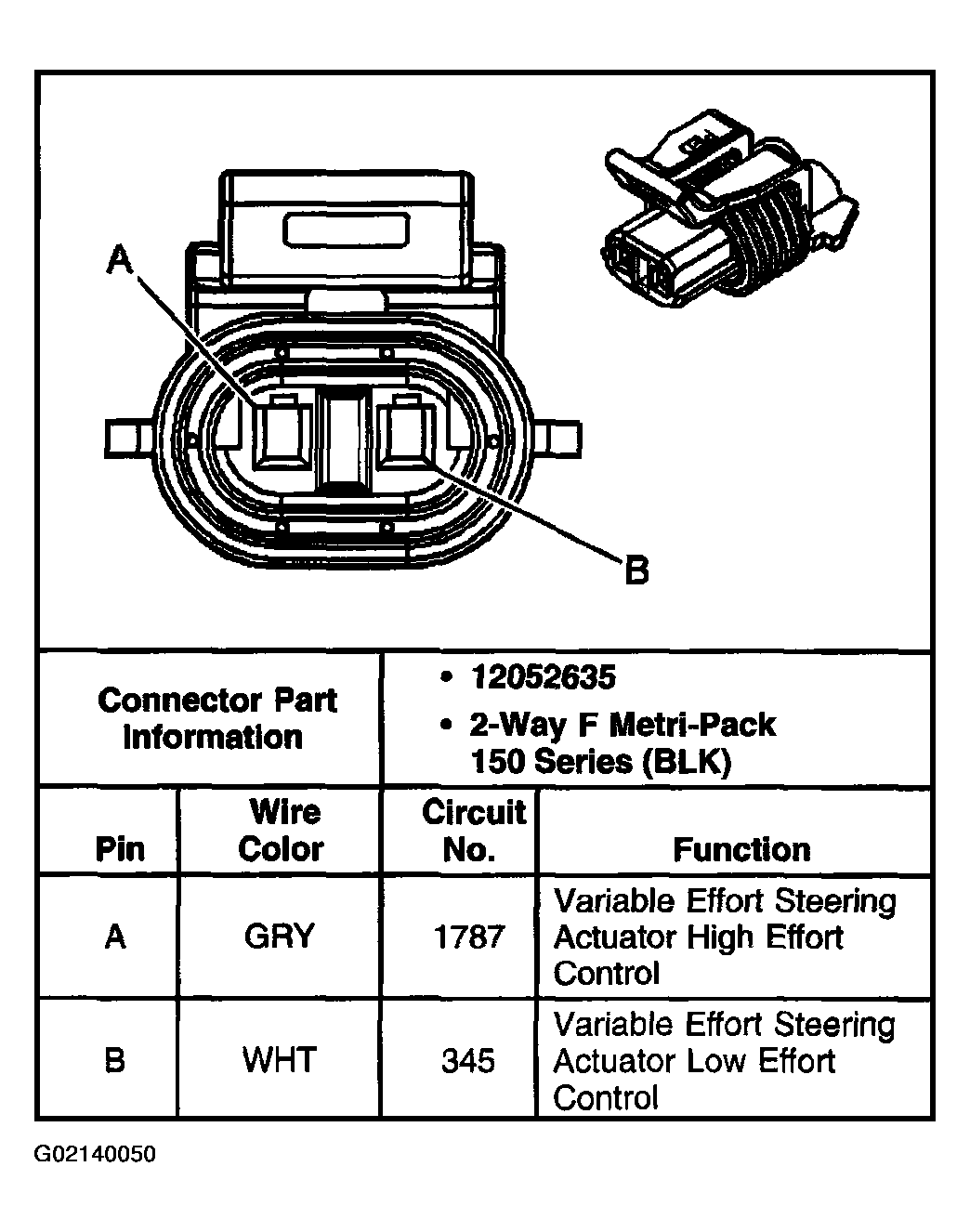

Fig 1: Variable Effort Steering Actuator Connector End Views

G02140050

Courtesy of GENERAL MOTORS CORP.
