Seat Belt Component Views

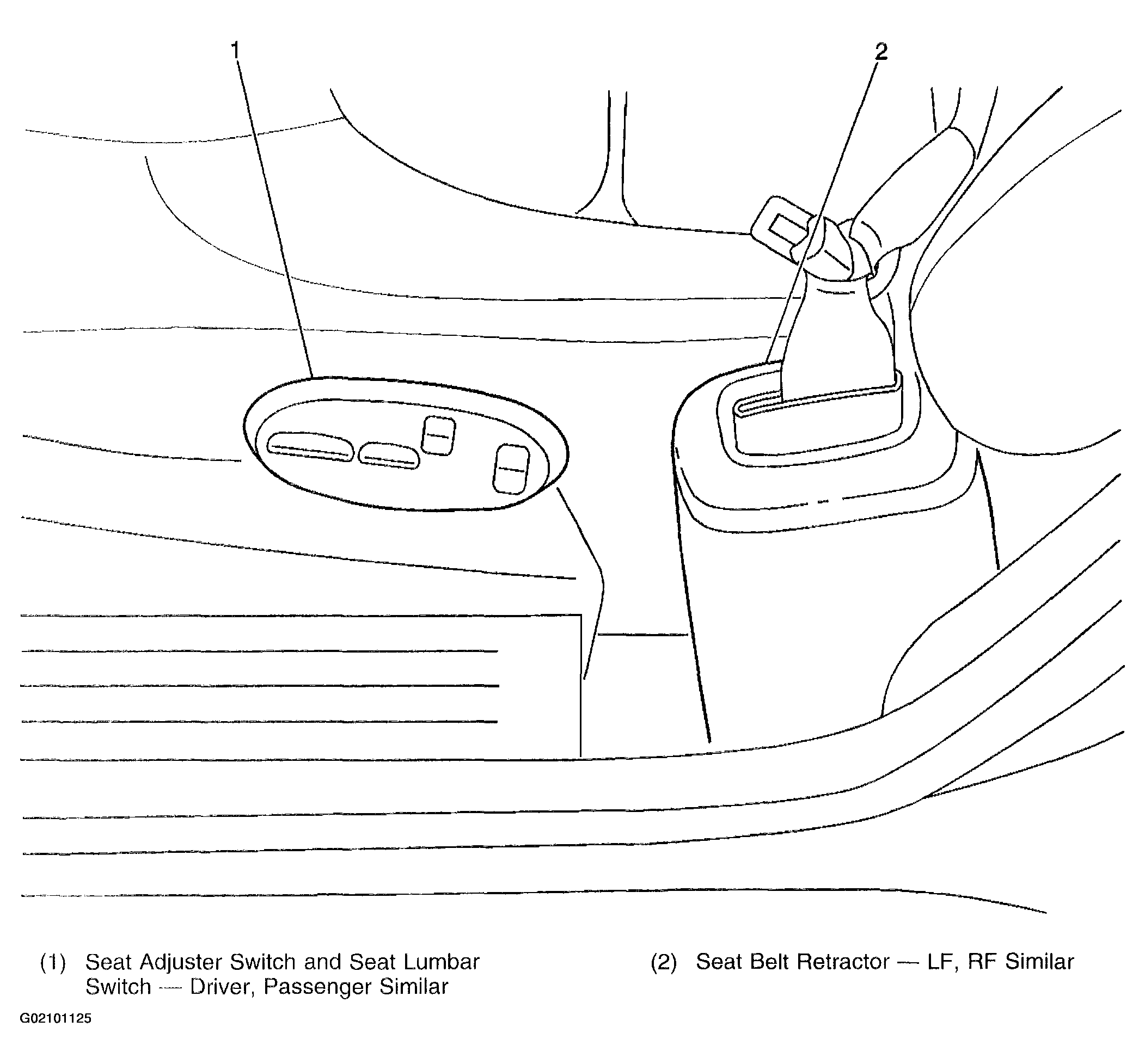

Fig 1: Identifying Left Front Seat, On The Left Side Of The Cushion Components

Courtesy of GENERAL MOTORS CORP.

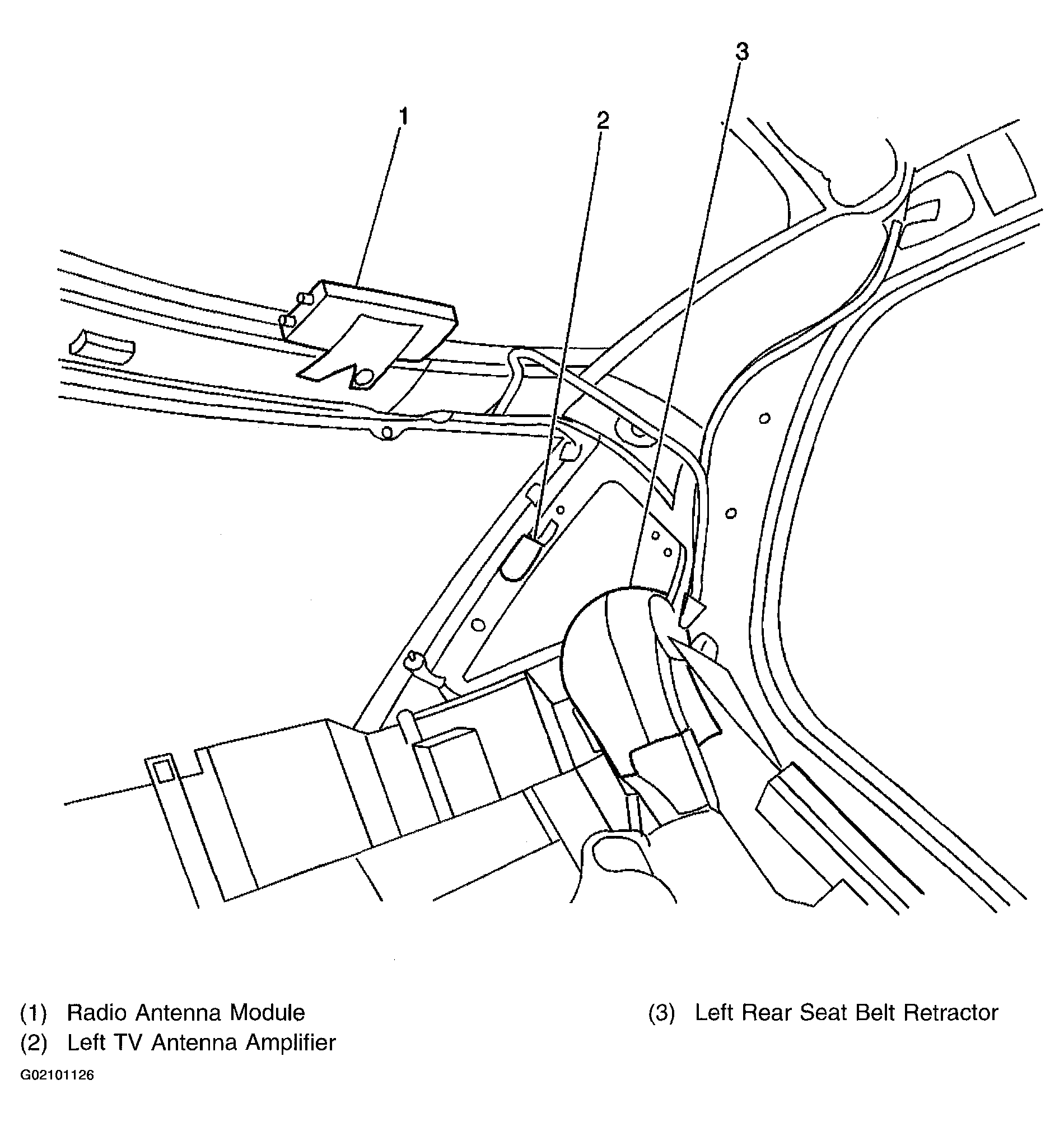

Fig 2: Identifying Left Rear Corner Of Passenger Compartment, Above The Rear Seat Components

Courtesy of GENERAL MOTORS CORP.

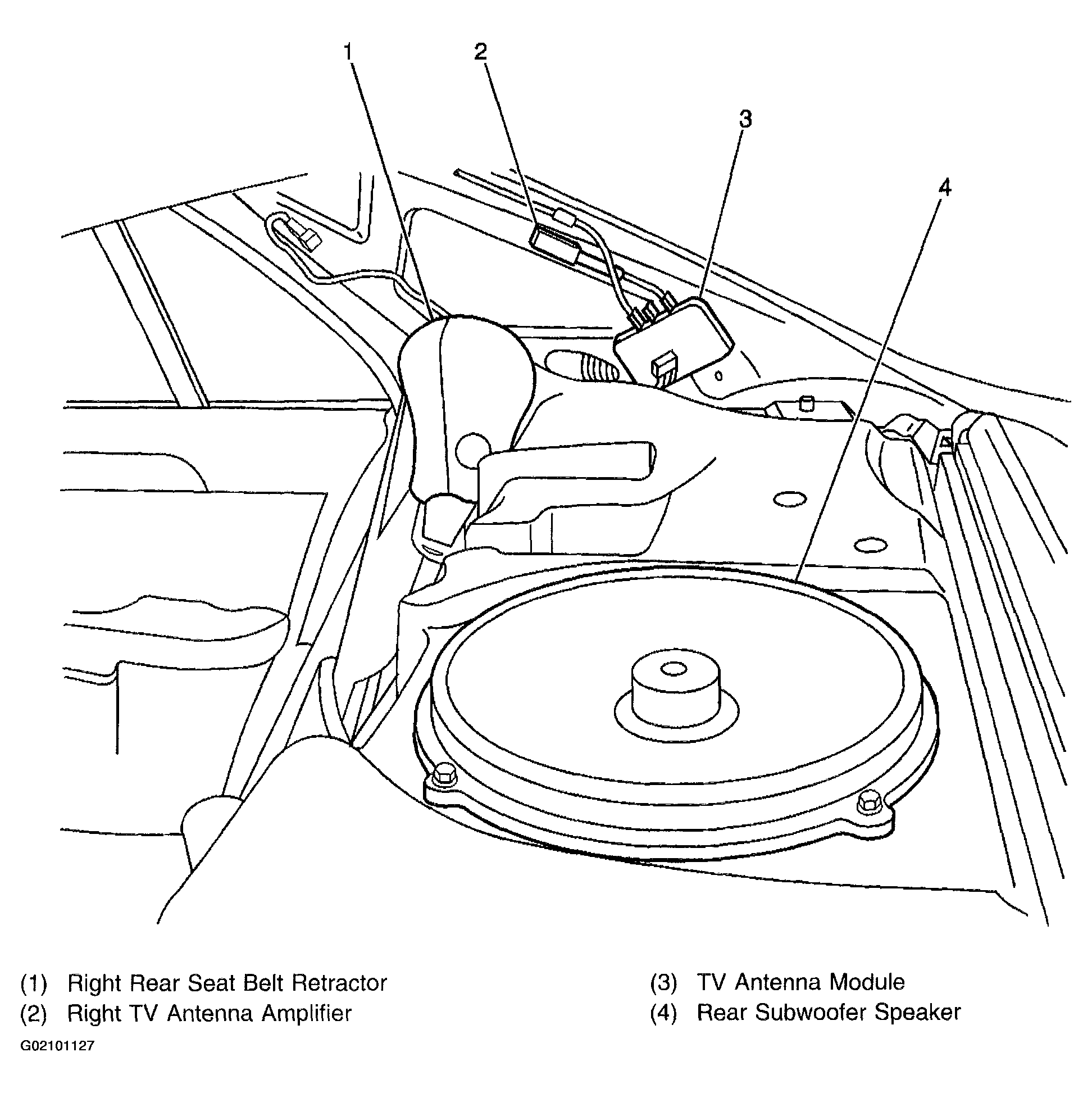

Fig 3: Identifying Right Corner Of Passenger Compartment, Above The Rear Seat Components

Courtesy of GENERAL MOTORS CORP.

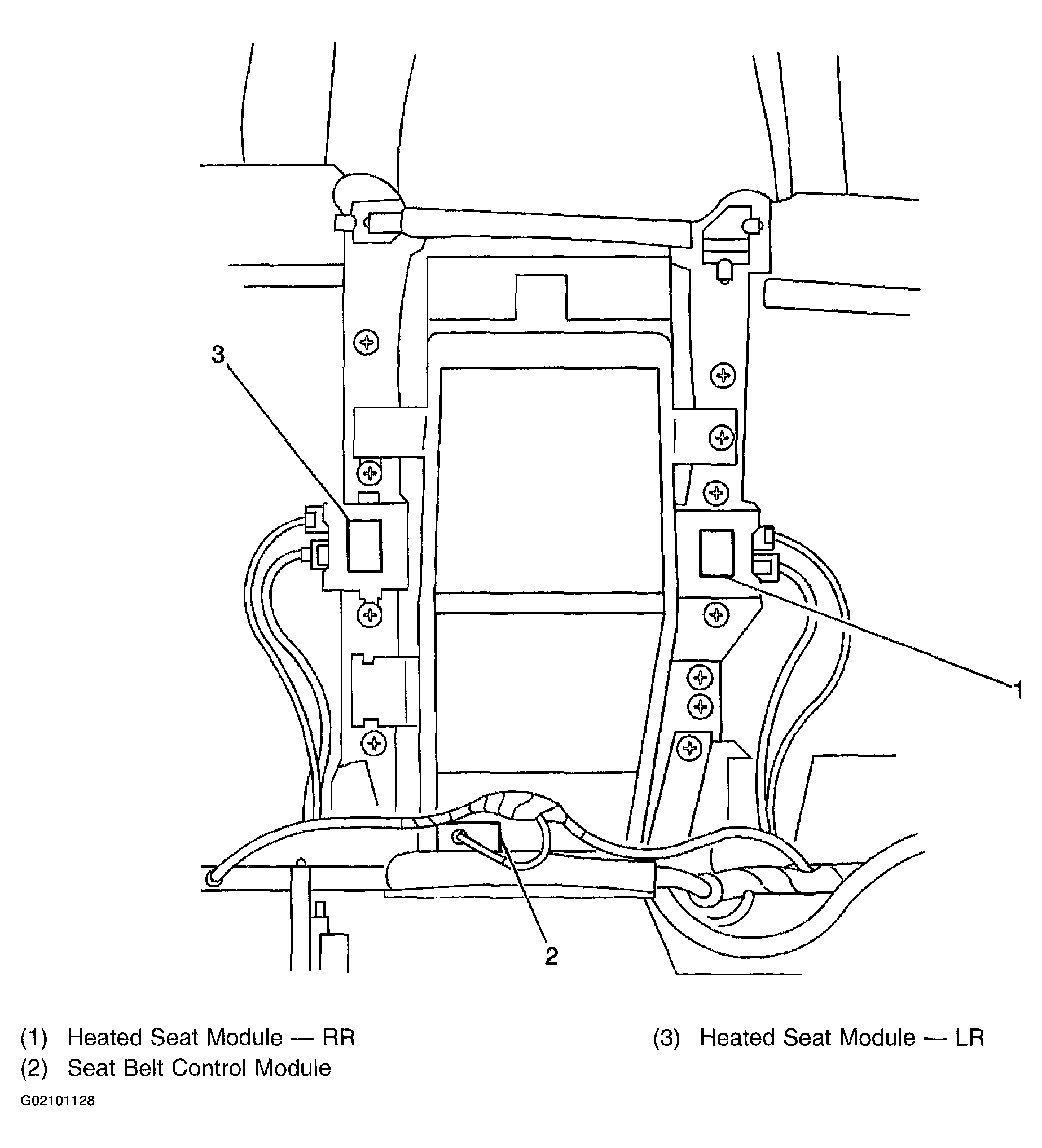

Fig 4: Identifying Center Rear Of Passenger Compartment In Rear Back Seat Components

Courtesy of GENERAL MOTORS CORP.

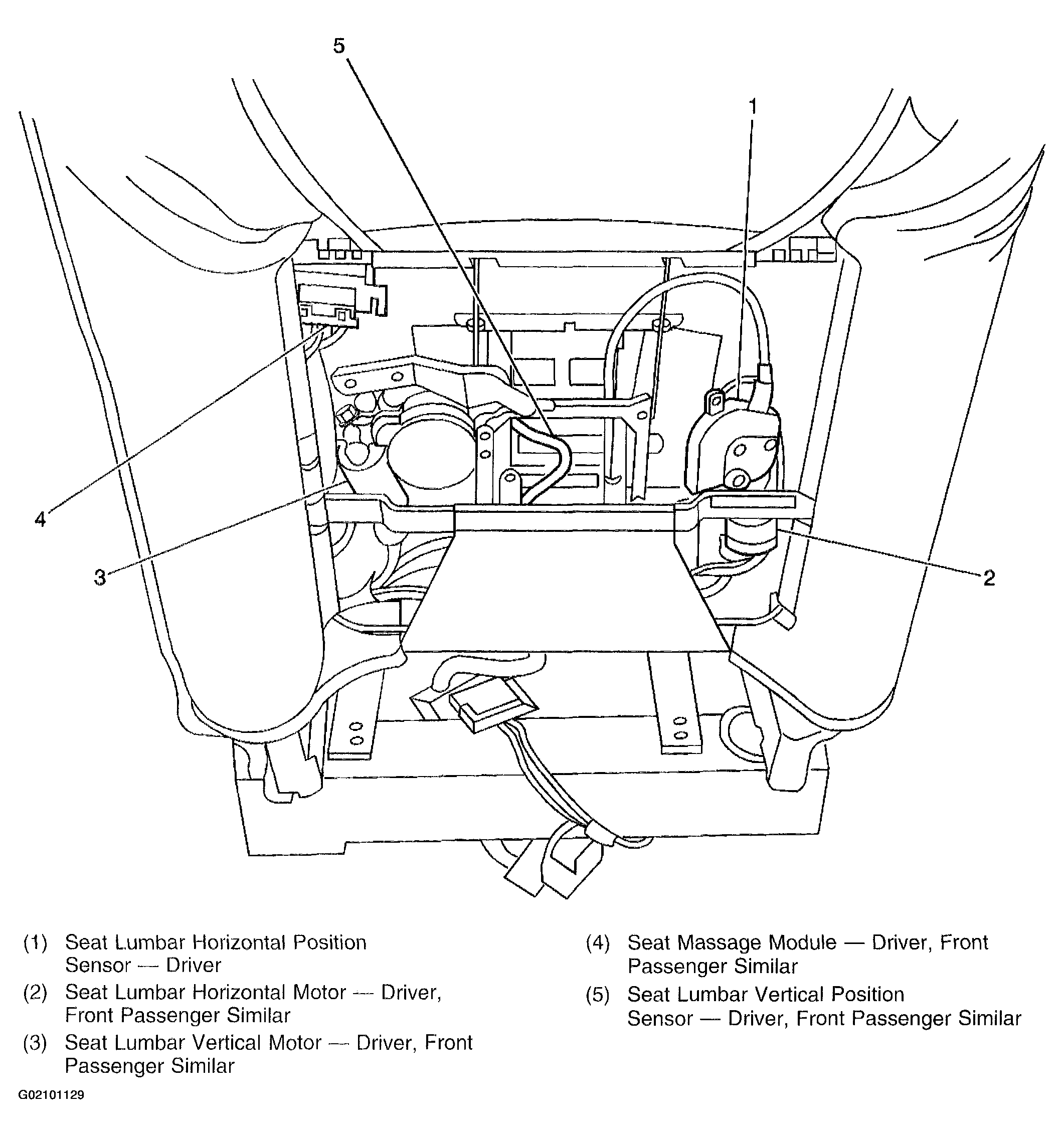

Fig 5: Identifying Left Front Of Passenger Compartment, Under Left Front Seat Components

Courtesy of GENERAL MOTORS CORP.
