Removal Procedure

  1. Remove the cooling fans. Refer to COOLING FAN REPLACEMENT - ELECTRIC  .
  2. Position the J 37097-A  to the clamp in order to remove the outlet radiator hose from the radiator.
  3. Disconnect the lower transaxle oil cooler line from the radiator.

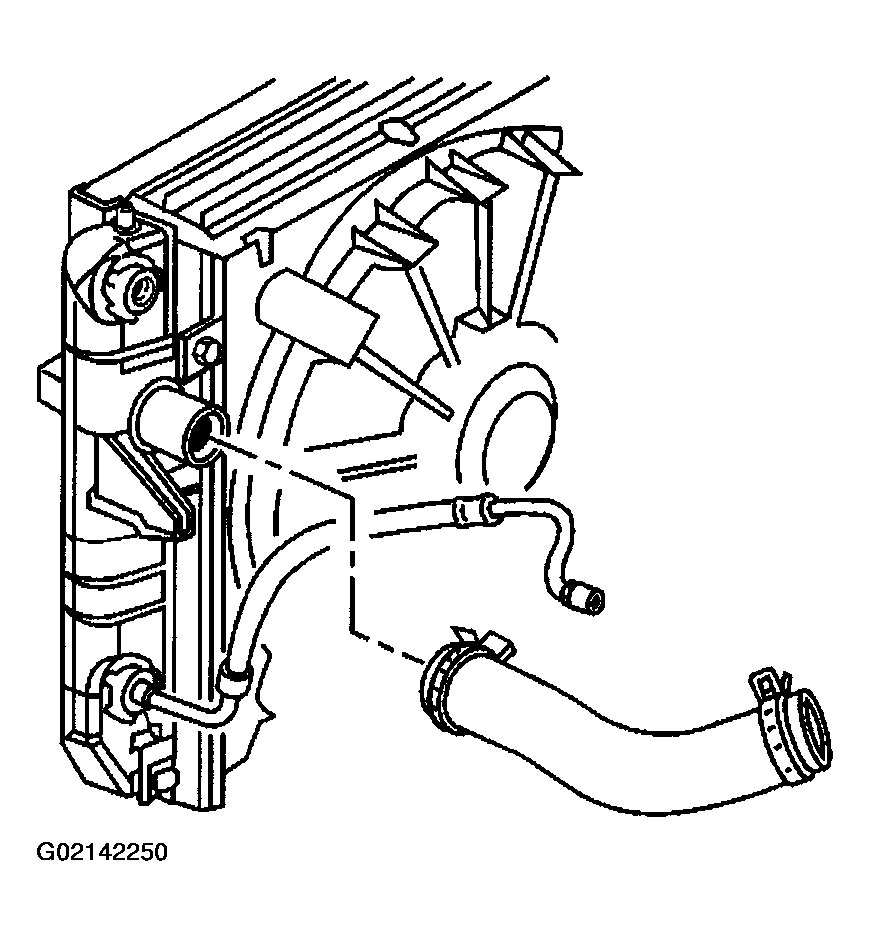

    Fig 1: Removing Outlet Radiator Hose From Radiator
    G02142250Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the lower engine oil cooler line from the radiator.

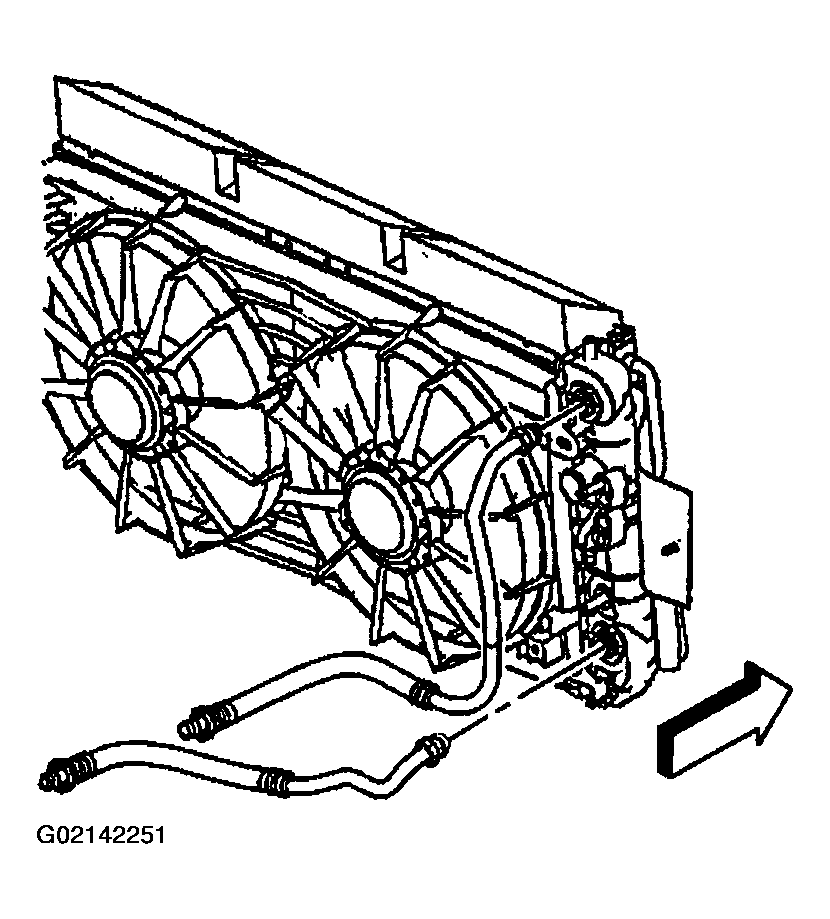

    Fig 2: Disconnecting Lower Engine Oil Cooler Line From Radiator
    G02142251Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 condenser mounting bolts.

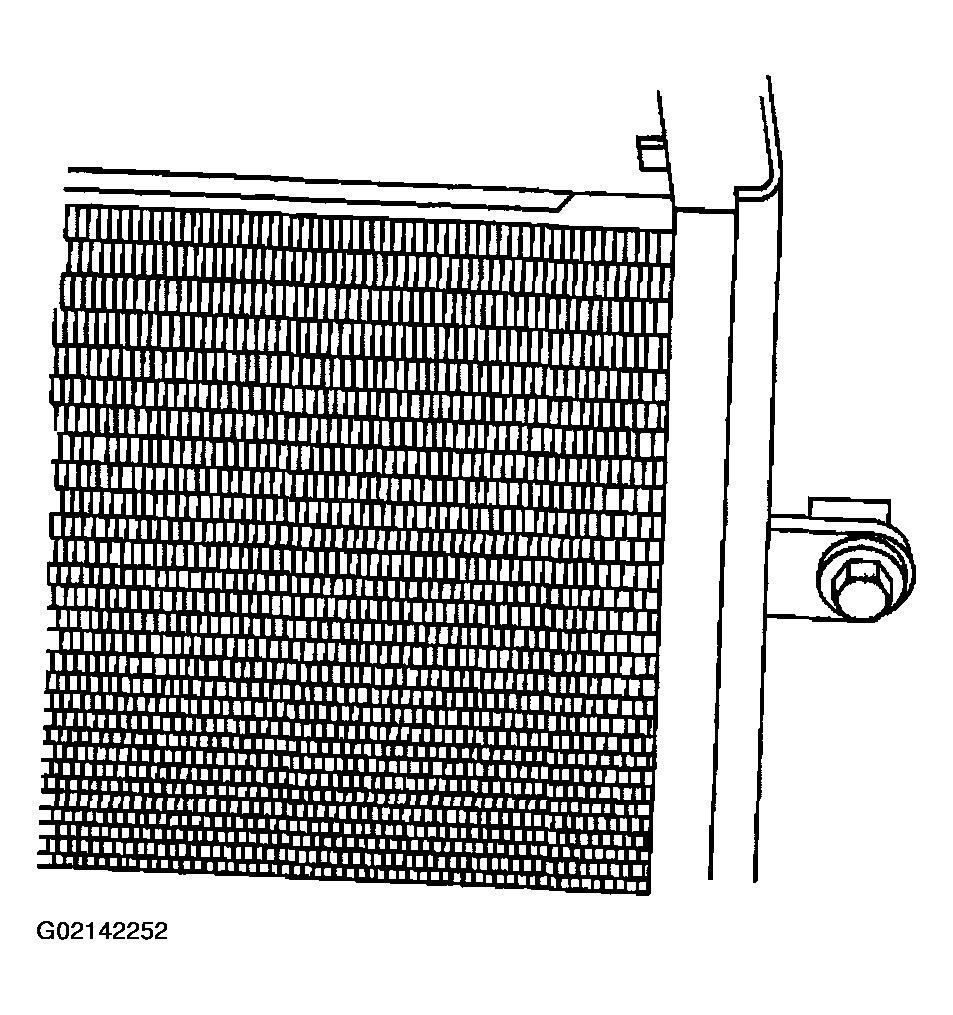

    Fig 3: Removing Condenser Mounting Bolts
    G02142252Courtesy of GENERAL MOTORS CORP.

    Important:  Care should be taken when removing the condenser not to damage the lower attachment points of both the radiator and condenser.

  6. Lift the condenser upward slightly in order to release the lower feet from the lower mounting features located at the front of the radiator.
  7. Lift the radiator up and out the vehicle.

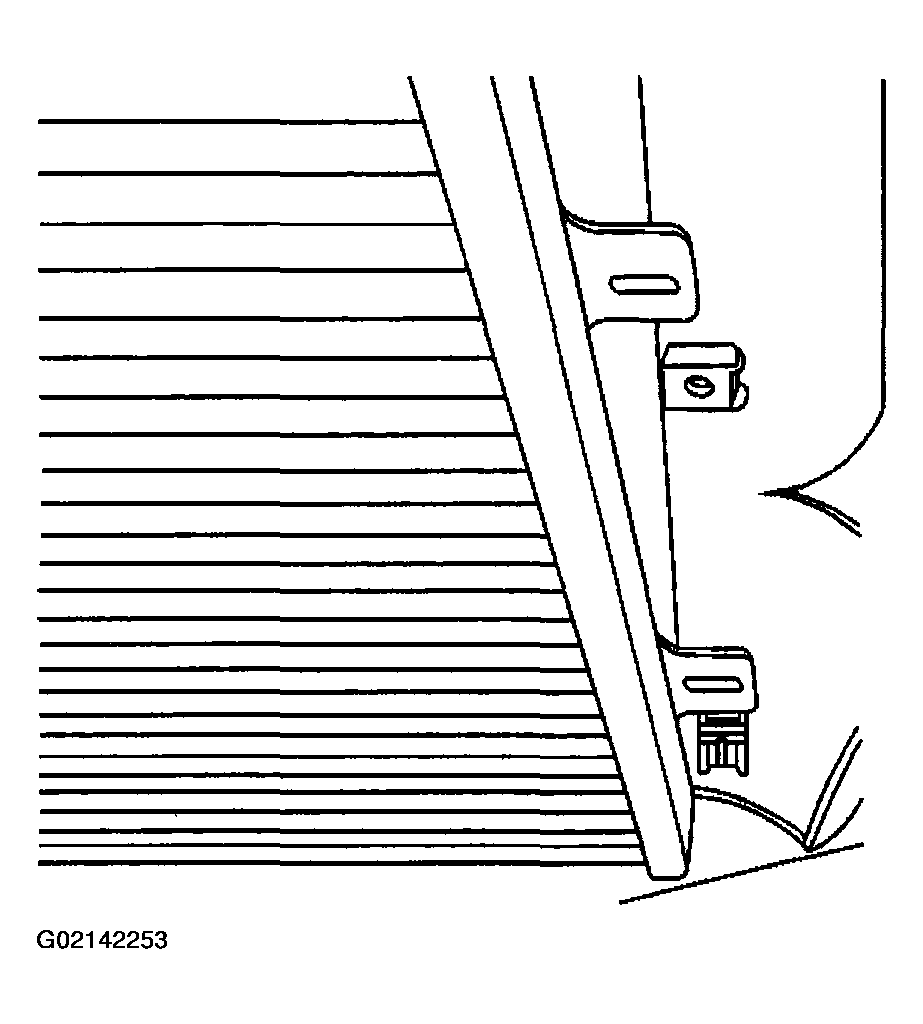

    Fig 4: Removing Radiator From Vehicle
    G02142253Courtesy of GENERAL MOTORS CORP.
