Window Motor Connector End View - LR

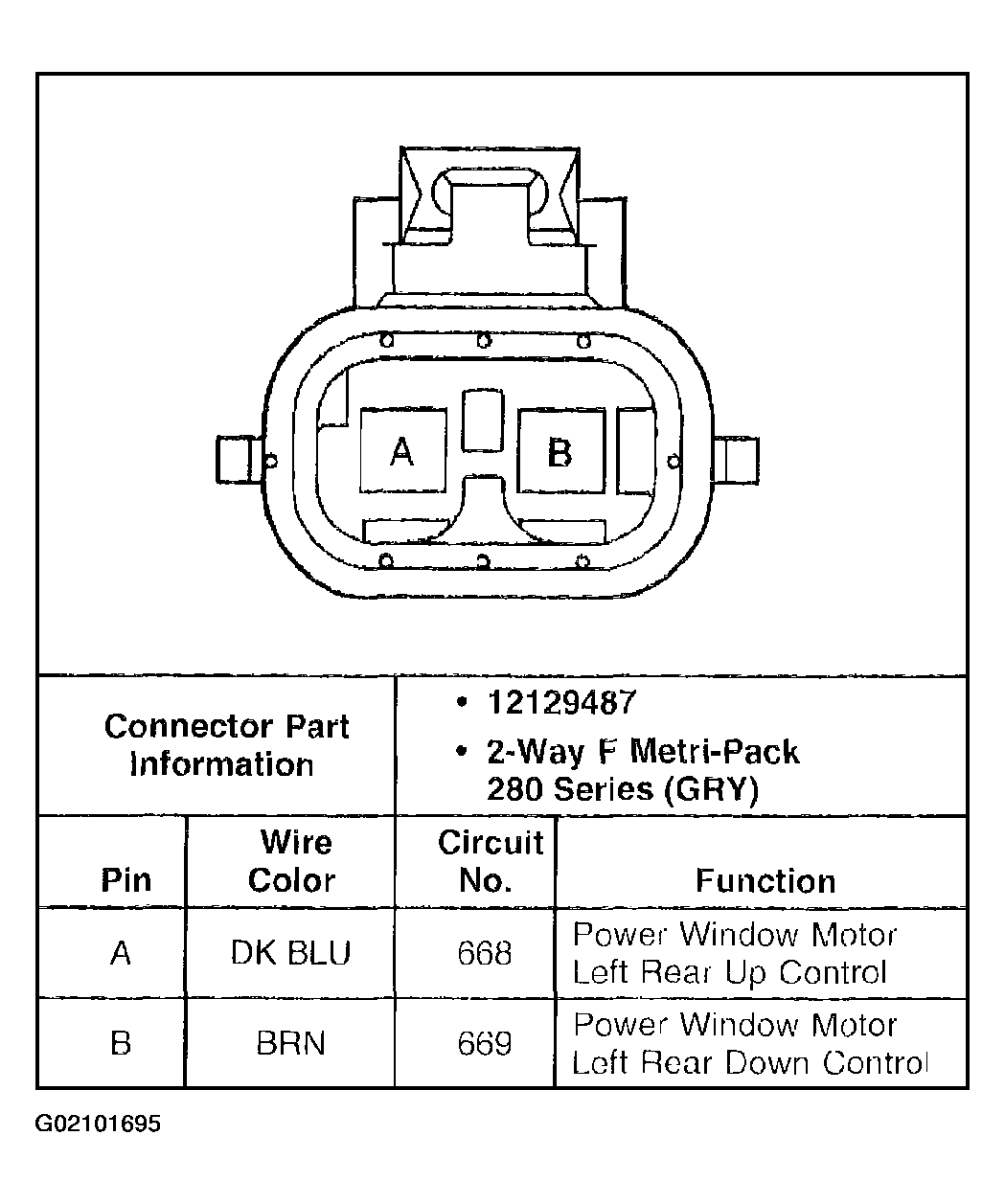

Fig 1: Window Motor - LR

G02101695

Courtesy of GENERAL MOTORS CORP.
