Suspension Position Sensor Connector End View - RF

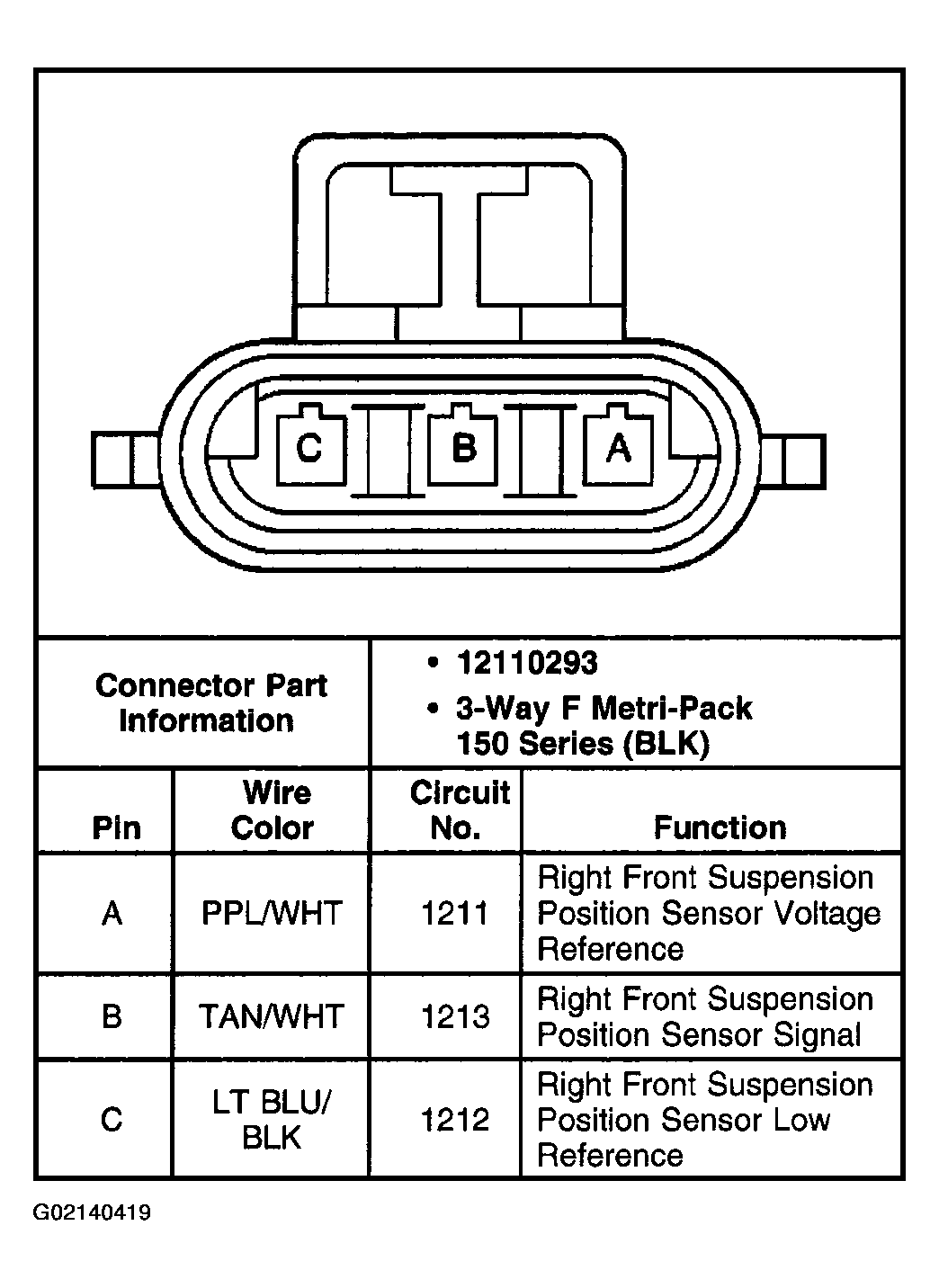

Fig 1: Suspension Position Sensor - RF

G02140419

Courtesy of GENERAL MOTORS CORP.
