Steering Column Module Connector End View C3 - Telescope Actuator

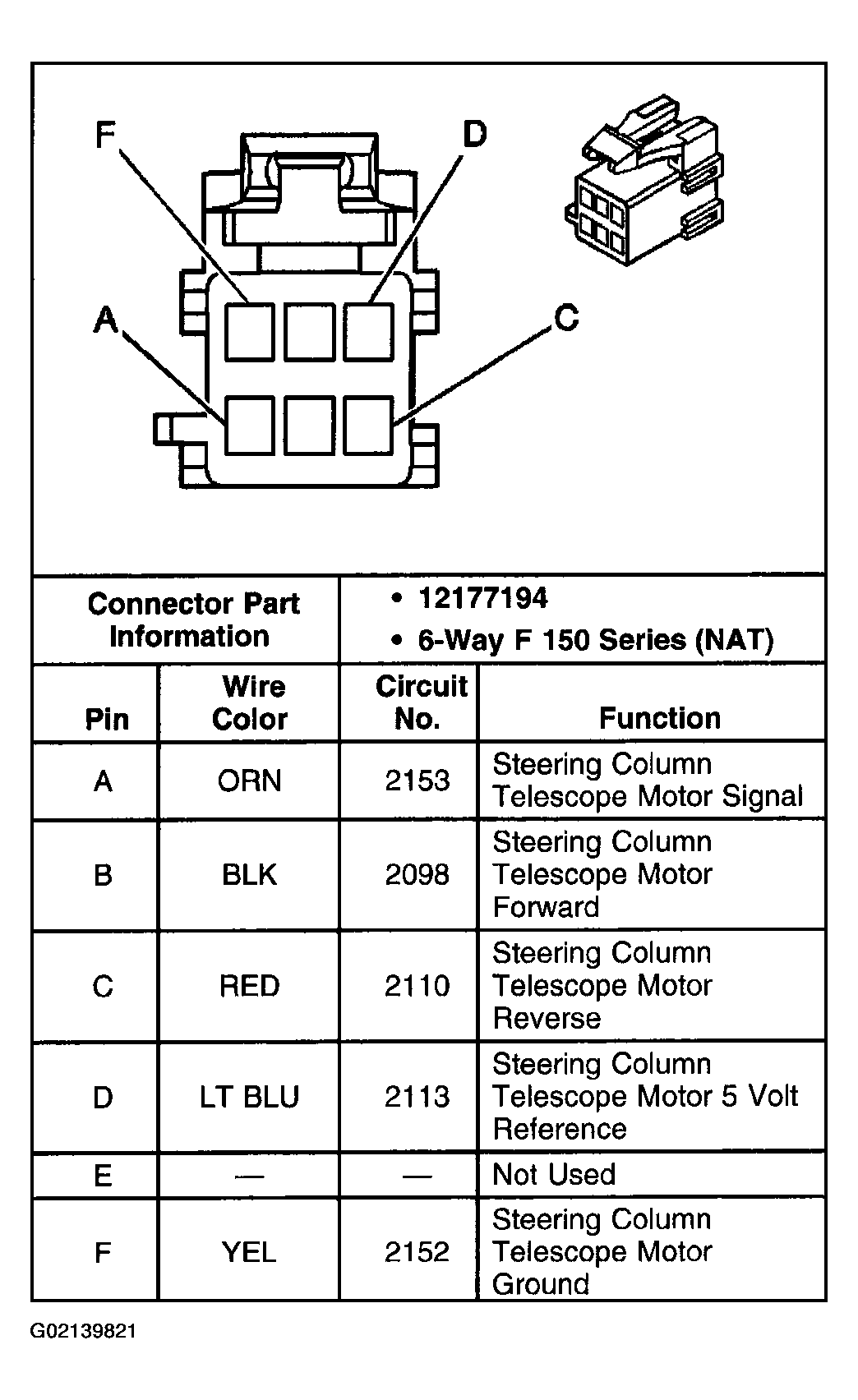

Fig 1: Steering Column Module C3 - Telescope Actuator

G02139821

Courtesy of GENERAL MOTORS CORP.
