Electronic Suspension Control Module Connector End View C1 (1 Of 2)

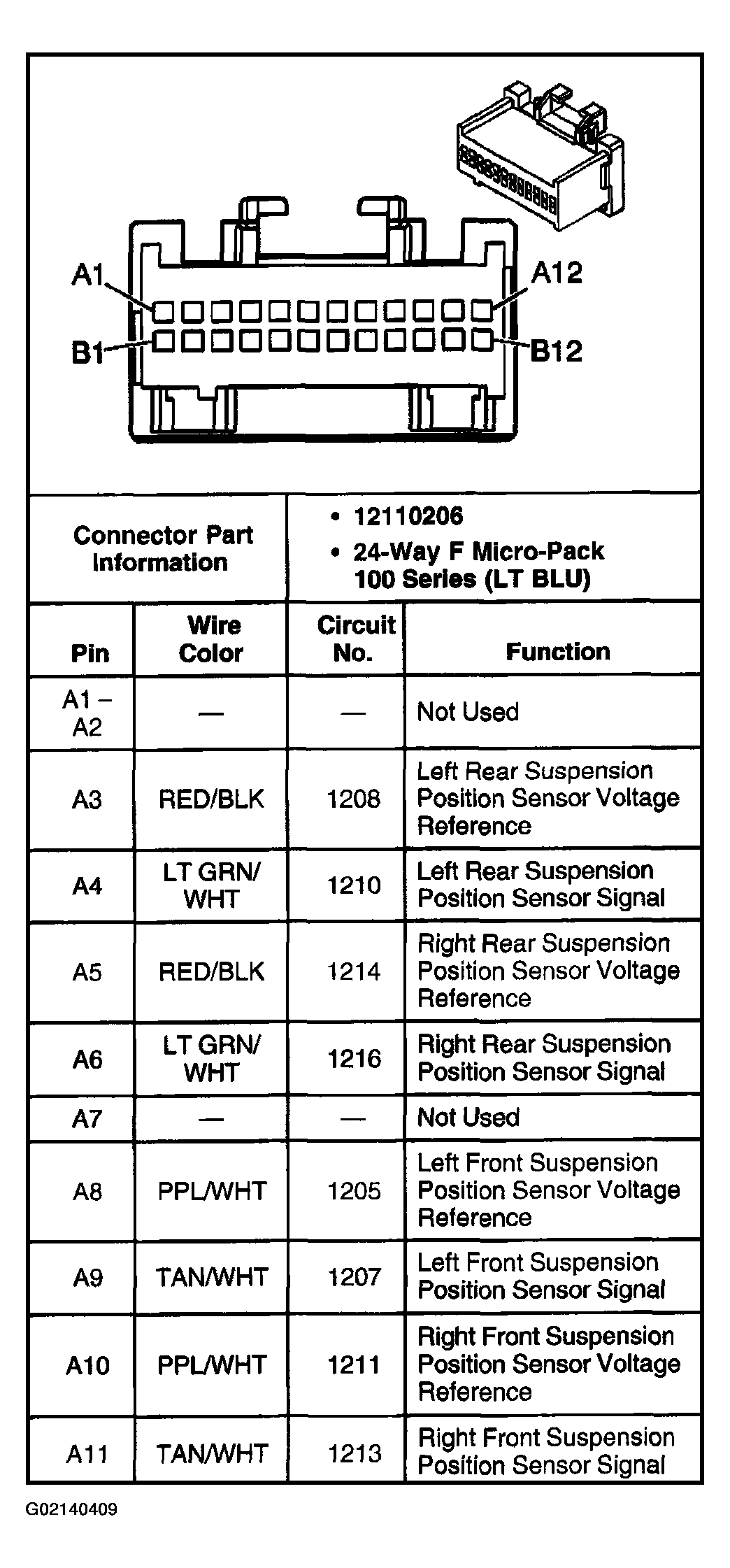

Fig 1: Electronic Suspension Control Module C1 (1 Of 2)

G02140409

Courtesy of GENERAL MOTORS CORP.
