Driver Information Center Switch Connector End View - Right
Driver Information Center Switch Connector End View - Right

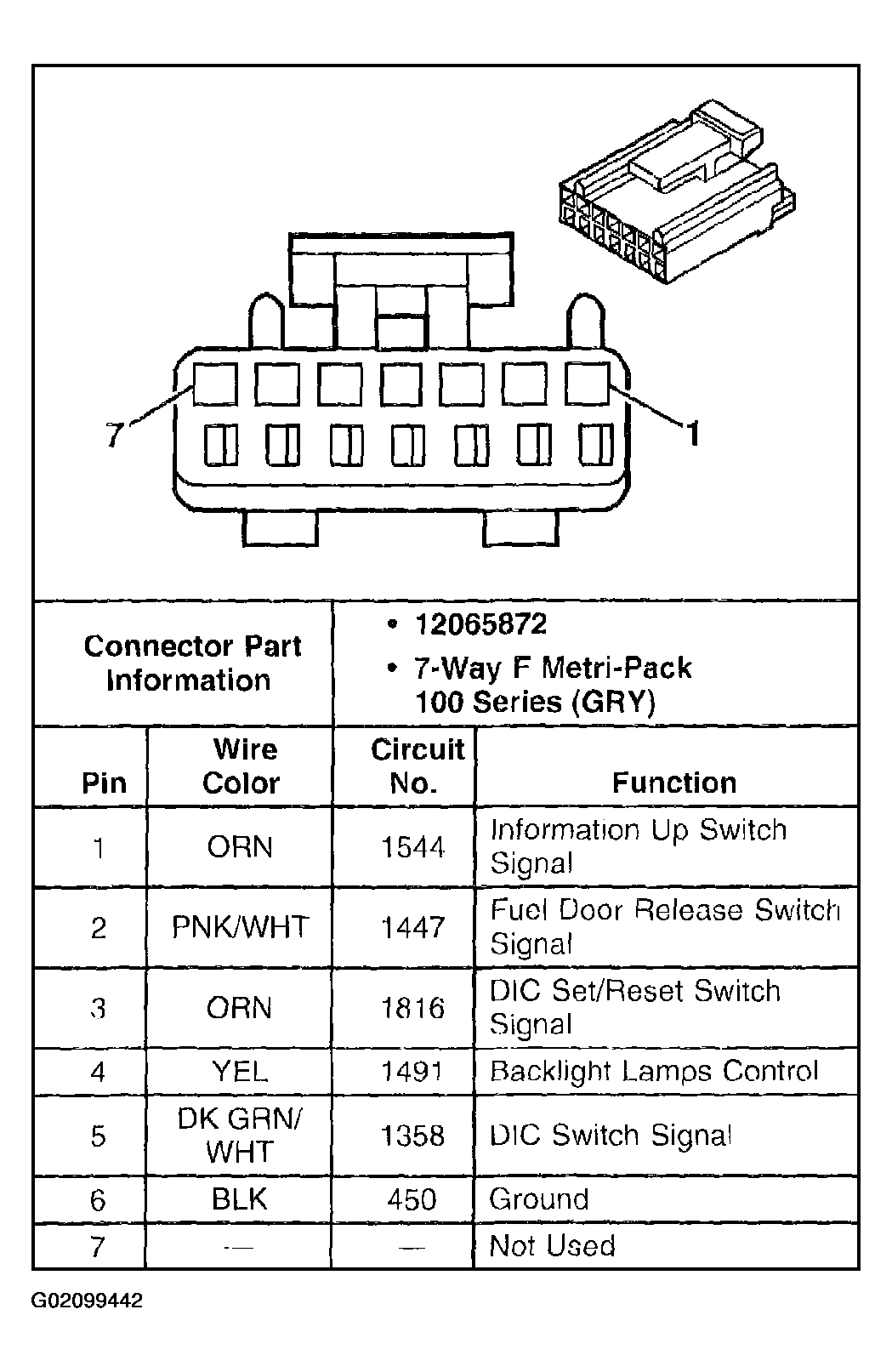

Fig 1: Driver Information Center Switch - Right
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
