Driver Information Center Switch Connector End View - Left
Driver Information Center Switch Connector End View - Left

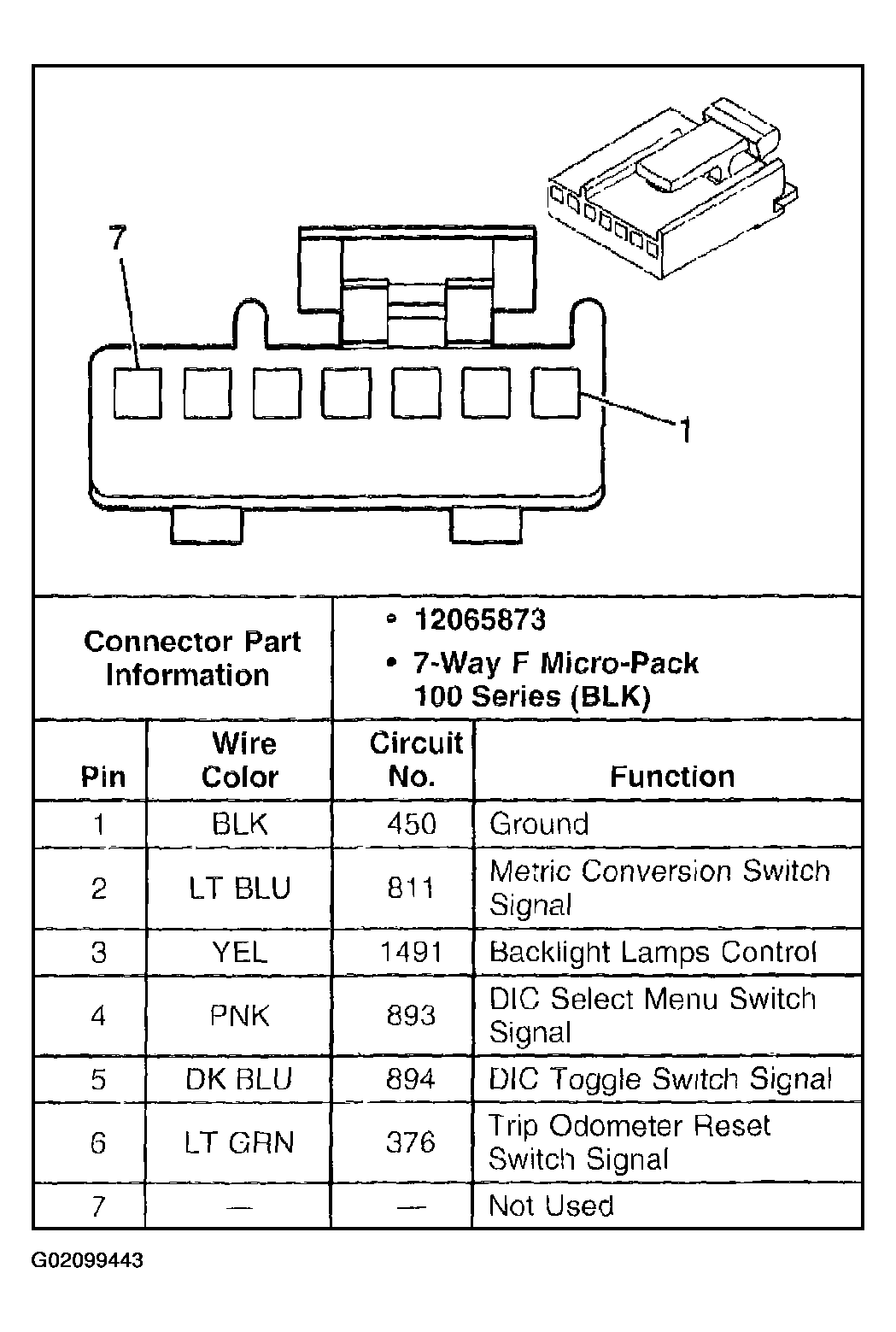

Fig 1: Driver Information Center Switch - Left
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
