Air Temperature Sensor Connector End View - Upper Left

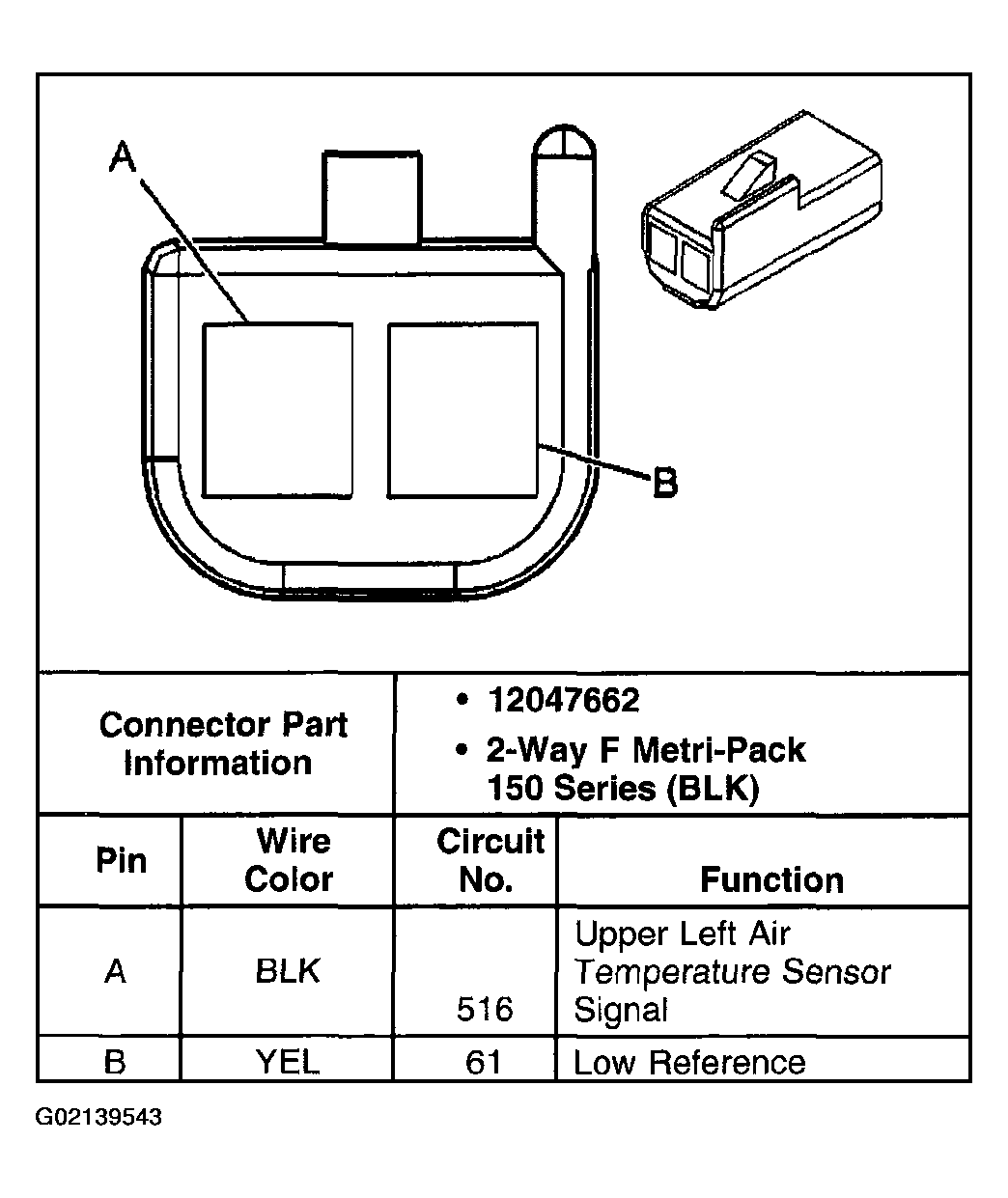

Fig 1: Air Temperature Sensor - Upper Left

G02139543

Courtesy of GENERAL MOTORS CORP.
