Air Temperature Sensor Connector End View - Lower Right

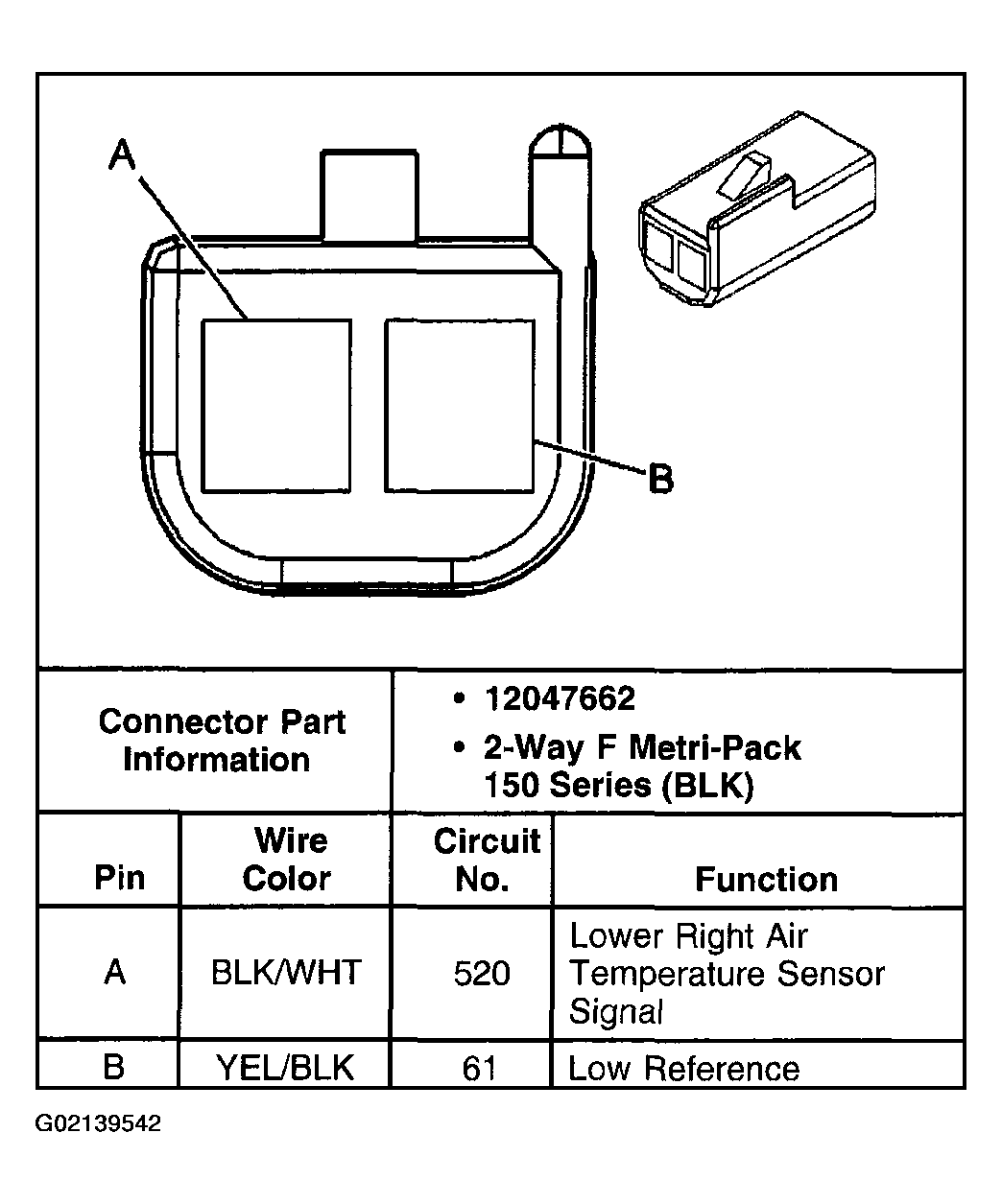

Fig 1: Air Temperature Sensor - Lower Right

G02139542

Courtesy of GENERAL MOTORS CORP.
